    • Oil-Air cooler TT 16 rail AC w. pressure by-pass

    Oil-Air cooler TT 16 rail AC w. pressure by-pass

    NOTE! also requires TT rail connection kit.

    Please order separately.

    Artikelnummer:
    ASATT16RA44BP
    Förpackningsstorlek:
    1 pcs
    Minsta beställningskvantitet:
    1 pcs
    Foot mounting TT 07-36 (heavy duty = mobile use)
    Artikelnummer: ILLEFUSSTTHDK
    Monteringsfötter ASA-TT 07 - 25
    Artikelnummer: ILLEFUSSTTK
    TT-rail anslutningssats 90° BSP1 1/4"
    Artikelnummer: ILLZSET5G32
    TT-rail Connector Kit Straight BSP1 1/4"
    Artikelnummer: ILLZSET5G32A
    TT-rail anslutningssats Mix BSP1 1/4"
    Artikelnummer: ILLZSET5G32B
    Temperature control 12VDC
    Artikelnummer: ILLZTC12-2K
    Temperature control 24VDC
    Artikelnummer: ILLZTC24-2K
    Temperature switch BSP1/2" DIN-3P Set point 50C
    Artikelnummer: ILLZTH4765K
    Temperature switch BSP1/2" AMP Superseal 1.5 Set point 50C
    Artikelnummer: ILLZTH5069K
    Brand Name
    ASA
    By-pass valve
    Yes

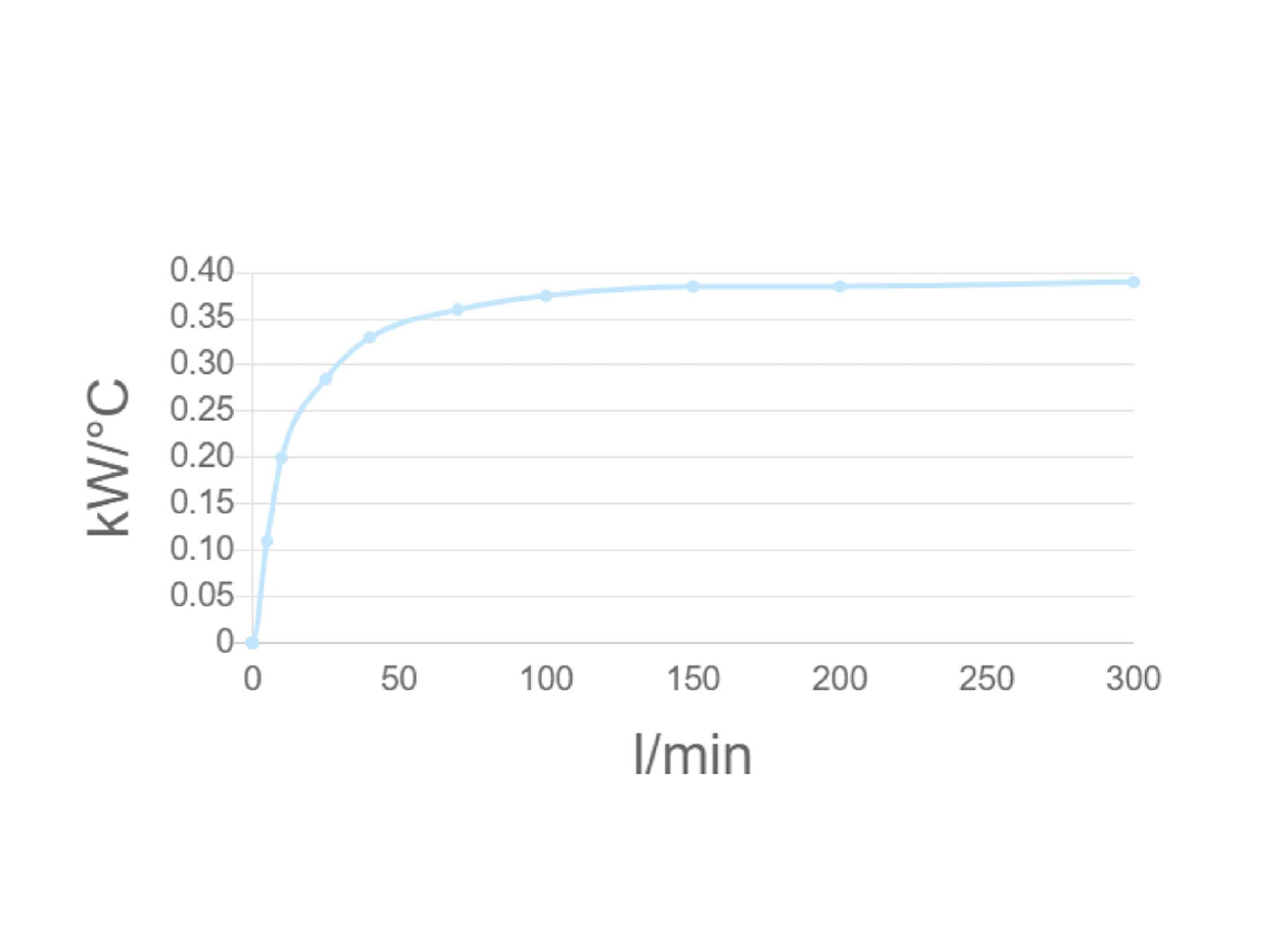

    Cooling efficiency
    0.39 kW/°C
    Current type
    AC
    Depth
    414 mm
    Flow rate nominal LMin
    250 lpm
    Height
    465 mm
    Material
    Aluminium
    Model code
    ASATT16RA44BP
    Noise level
    73 dB-A
    Pressure max.
    26 bar
    Pressure static max.
    26 bar
    Temperature ambient max.
    +80 °C
    Temperature ambient min.
    -20 °C
    Temperature working fluid max.
    +80 °C
    Voltage
    230, 400 V
    Width
    462 mm
    Förpackningsstorlek
    1 pcs
    Streckkod
    477670
    Bruttovikt
    Kg
    Nettovikt
    27,40 Kg
    Ursprungsland
    aut
    Intrastat artikelkod
    84186900

    NOTE! also requires TT rail connection kit.

    Please order separately.
