Oil-Air cooler TT 07 rail 12VDC w. pressure by-pass

Oil-Air cooler TT 07 rail 12VDC w. pressure by-pass

NOTE! also requires TT rail connection kit.

Please order separately.

Partnumber:
ASATT07RD03BP
Package size:
1 pcs
Min. order quantity is:
1 pcs
Foot mounting TT 07-36 (heavy duty = mobile use)
Varenummer: ILLEFUSSTTHDK
Mounting feet set ASA-TT 07 - 25
Varenummer: ILLEFUSSTTK
TT Connectorset nominal size 25 Connector: G 1"
Varenummer: ILLZSET5G25
TT-rail Connector Kit Mixed BSP1"
Varenummer: ILLZSET5G25B
Temperature control 12VDC
Varenummer: ILLZTC12-2K
Tempsensor BSP1/2" DIN-3P 50° IP65
Varenummer: ILLZTH4765K
Temperature switch BSP1/2" AMP Superseal 1.5 Set point 50C
Varenummer: ILLZTH5069K
Brand Name
ASA
By-pass valve
Yes

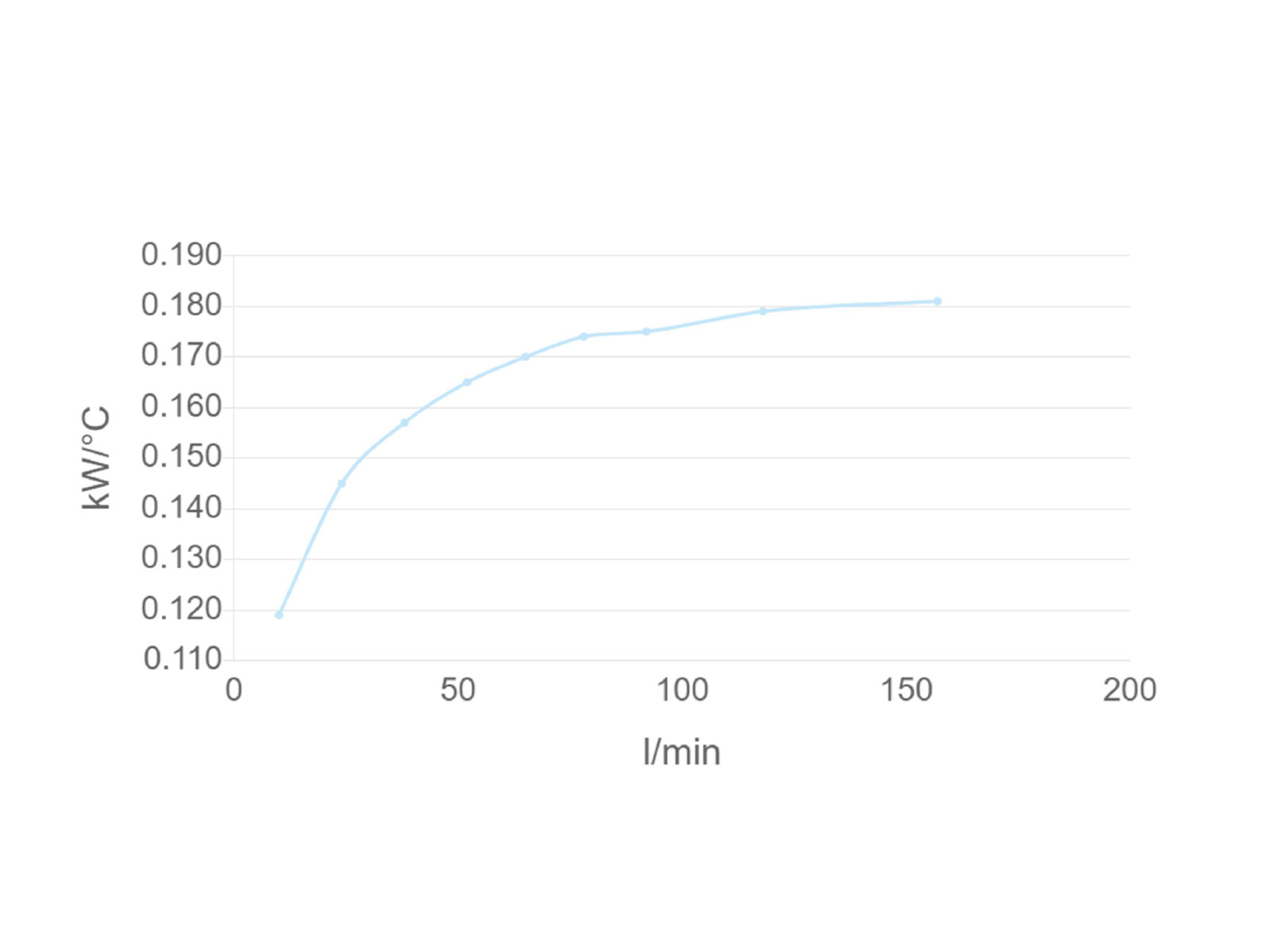

Cooling efficiency
0.18 kW/°C
Current max.
15.6 A
Current type
DC
Depth
176 mm
Flow rate nominal LMin
100 lpm
Height
300 mm
Material
Aluminium
Model code
ASATT07RD03BP
Noise level
78 dB-A
Pressure max.
26 bar
Pressure static max.
26 bar
Protection class
IP 68
Temperature ambient max.
+80 °C
Temperature ambient min.
-20 °C
Temperature max.
+80 °C
Temperature min.
-20 °C
Temperature working fluid max.
+80 °C
Voltage
12 V
Voltage max.
12 V
Width
320 mm
Pakke str.
1 pcs
Stregkode
479456
Brutto vægt
Kg
Netto vægt
7,00 Kg
Oprindelsesland
aut
Intrastat varekode
84186900

NOTE! also requires TT rail connection kit.

Please order separately.
