AIR COOLER TT 07 rail 230/460V 0.25kW 4-pol

AIR COOLER TT 07 rail 230/460V 0.25kW 4-pol

NOTE! also requires TT rail connection kit.

Please order separately.

Partnumber:
ASATT07RA44
Package size:
1 kpl
Min. order quantity is:
1 kpl
Foot mounting TT 07-36 (heavy duty = mobile use)
Partnumber: ILLEFUSSTTHDK
TT Connectorset nominal size 25 Connector: G 1"
Partnumber: ILLZSET5G25
TT-rail Connector Kit Mixed BSP1"
Partnumber: ILLZSET5G25B
Temperature control 12VDC
Partnumber: ILLZTC12-2K
Temperature control 24VDC
Partnumber: ILLZTC24-2K
Temperature switch BSP1/2" DIN-3P Set point 50C
Partnumber: ILLZTH4765K
Temperature switch BSP1/2" AMP Superseal 1.5 Set point 50C
Partnumber: ILLZTH5069K
Brand Name
ASA
By-pass valve
No

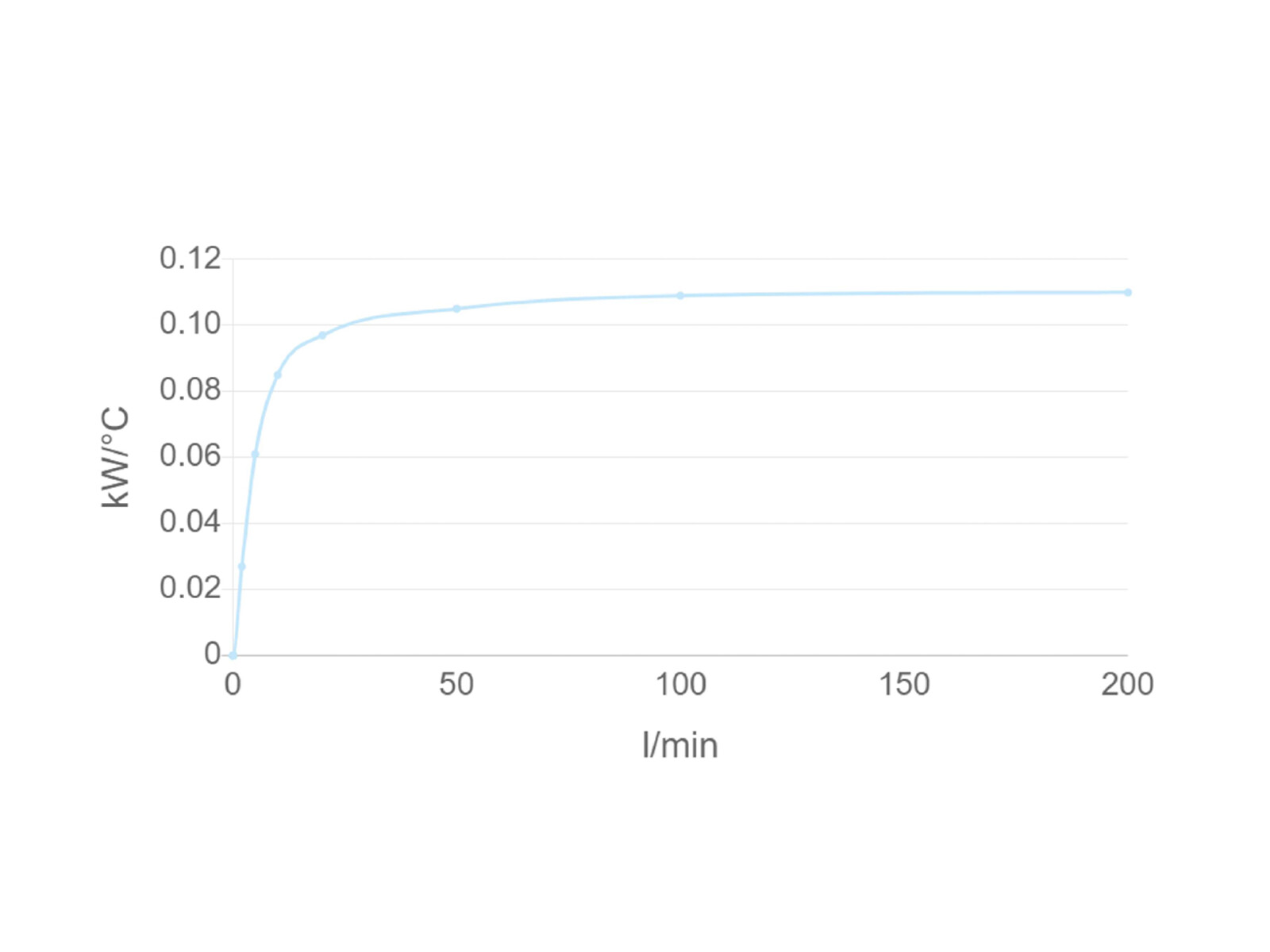

Cooling efficiency
0.11 kW/°C
Current type
AC
Depth
396 mm
Flow rate nominal LMin
100 lpm
Height
300 mm
Material
Aluminium
Model code
ASATT07RA44
Noise level
65 dB-A
Pressure max.
26 bar
Pressure static max.
26 bar
Temperature ambient max.
+80 °C
Temperature ambient min.
-20 °C
Temperature working fluid max.
+80 °C
Voltage
230, 400 V
Width
320 mm
Package size
1 kpl
Barcode
458774
Gross weight
Kg
Net weight
Kg
Country of origin
aut
Intrastat code
84186900

NOTE! also requires TT rail connection kit.

Please order separately.
