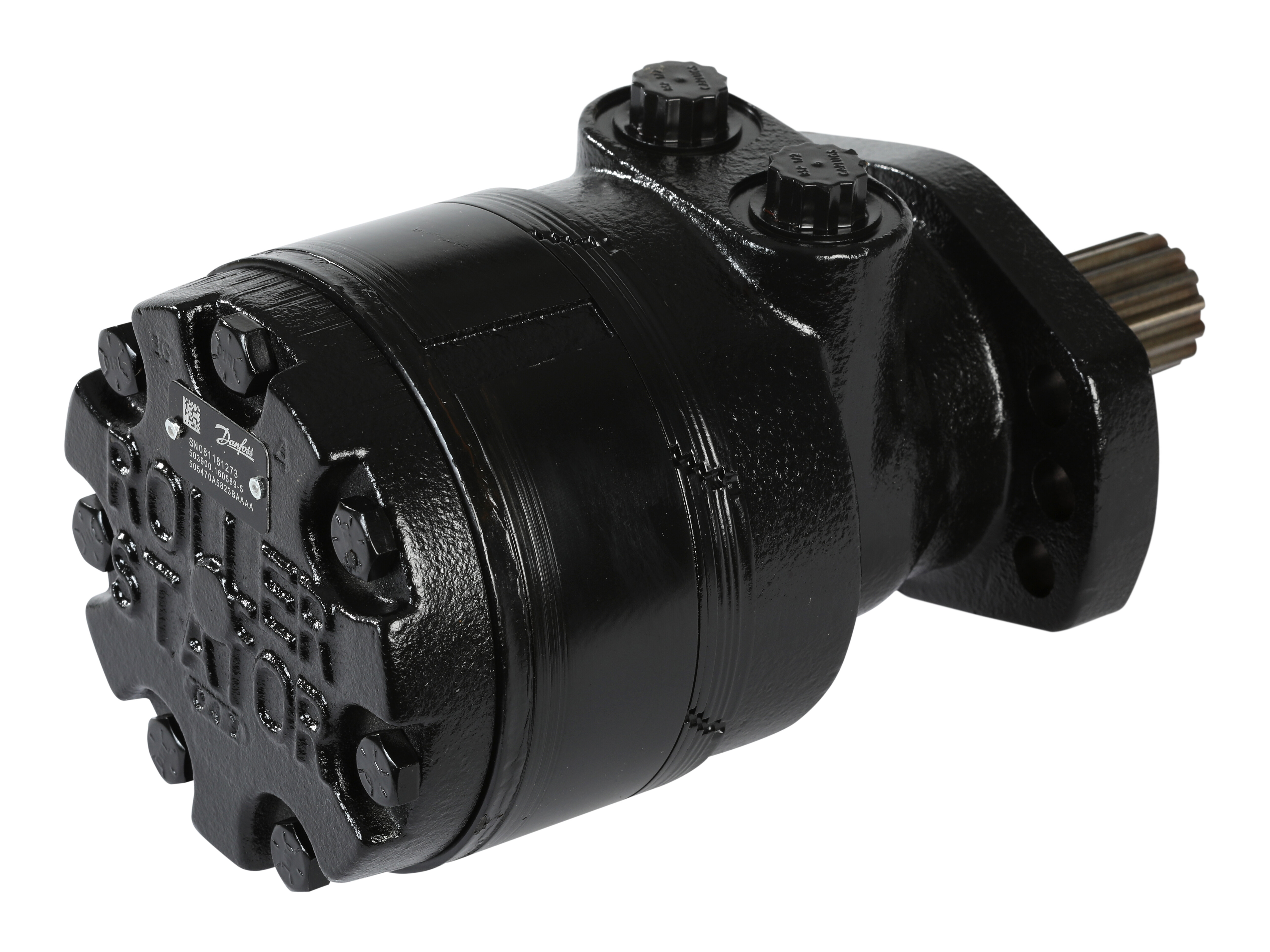

Orbit Motor RE505 470 CCW - 6 hole SAE A flange -1
14T Ura akseli 505470A5823BAAAA
Partnumber:
11200113
Package size:
1 kpl
Min. order quantity is:
1 kpl
Brand Name
Impro Fluidtek
Continuous rotation max.
160 rpm
Displacement
465 cm3

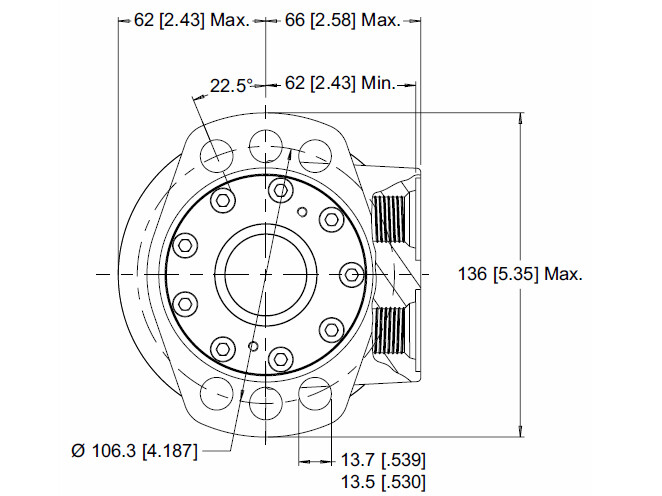

Holes circle
106.3 mm
L
187 mm
Model code
505470A5823BAAAA
Mounting flange
SAE-A6 Magneto
Number of mounting holes
6
Oil viscocity recommended
20 - 75 cSt
Port position
Side
Pressure drop continuous max.
172 bar
Recess
82,5 mm
Shaft spline
14T 12/24 SAE-C
Shaft type
Spline
Torque continuous max.
1096 Nm
Working ports
G 1/2 BSP
Package size
1 kpl
Barcode
368821
Gross weight
13,00 Kg
Net weight
13,00 Kg
Country of origin
Intrastat code
84122981
14T Ura akseli 505470A5823BAAAA
