Pipe clamp weld plates - single series - ACT

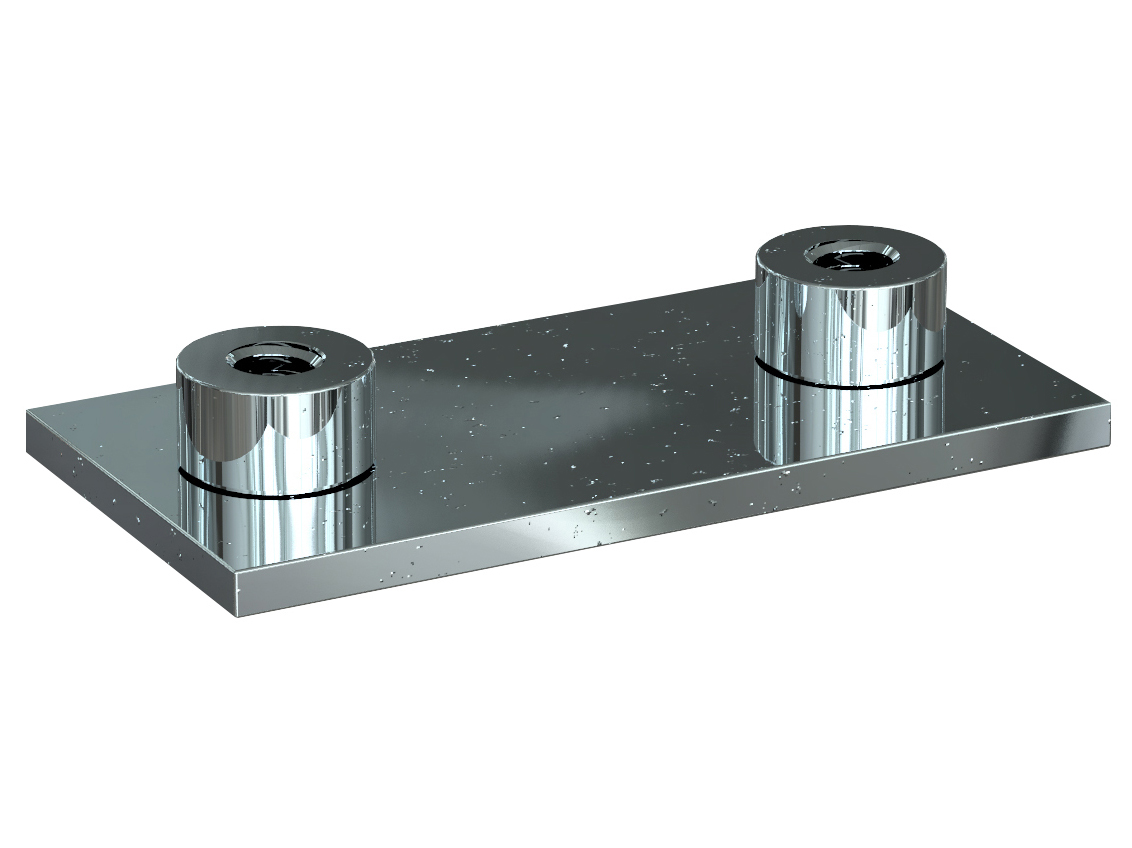

ACT standard single clamp weld plate.

ACT Mounting Hardware is made of Stainless Steel V4A (Material Code: W55) with enhanced
corrosion resistance by practically excluding metallic and non-metallic impurities during
production, processing and handling.

Weld plate - DIN 1 - ACT Stainless

1120023234

Weld plate - DIN 2 - ACT Stainless

1120023235

Weld plate - DIN 3 - ACT Stainless

1120023236

Weld plate - DIN 4 - ACT Stainless

1120023237

Weld plate - DIN 5 - ACT Stainless

1120023238

VÆLG VARIANT

Varenummer	Beskrivelse	DIN størrelse	Mærke navn
1120023234	Weld plate - DIN 1 - ACT Stainless	1	Stauff
1120023235	Weld plate - DIN 2 - ACT Stainless	2	Stauff
1120023236	Weld plate - DIN 3 - ACT Stainless	3	Stauff
1120023237	Weld plate - DIN 4 - ACT Stainless	4	Stauff
1120023238	Weld plate - DIN 5 - ACT Stainless	5	Stauff

Specifikationer
Dimensioner og forsendelse (vælg variant)

Antal rørholdere

30 mm

Bredde

12 mm

6,5 mm

Mærke navn

Stauff

Overfladebehandling

Polished

3 mm

Standard DIN

DIN 3015 part 1

Produkt information
Målskitse (vælg variant)

ACT standard single clamp weld plate.
