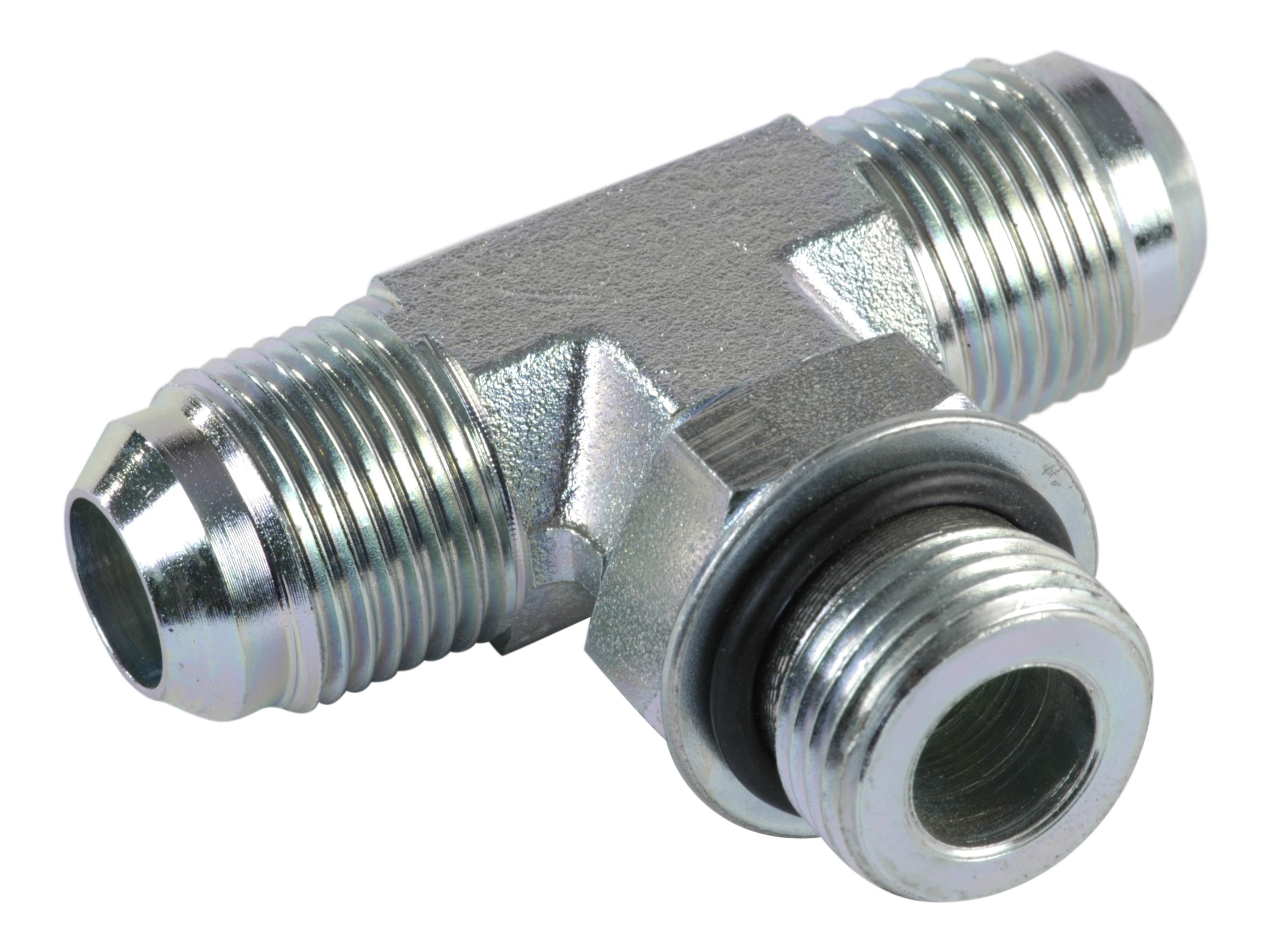

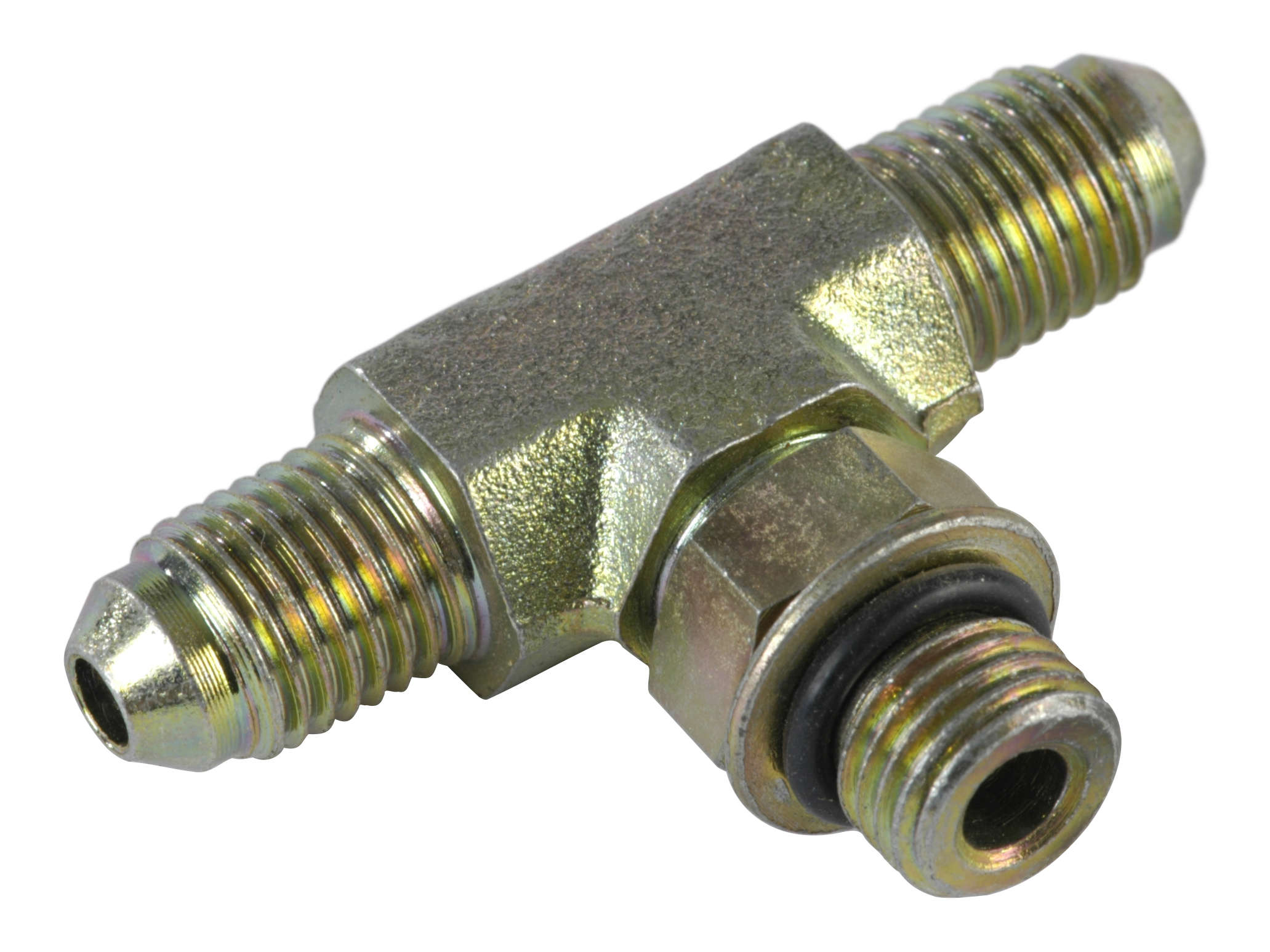

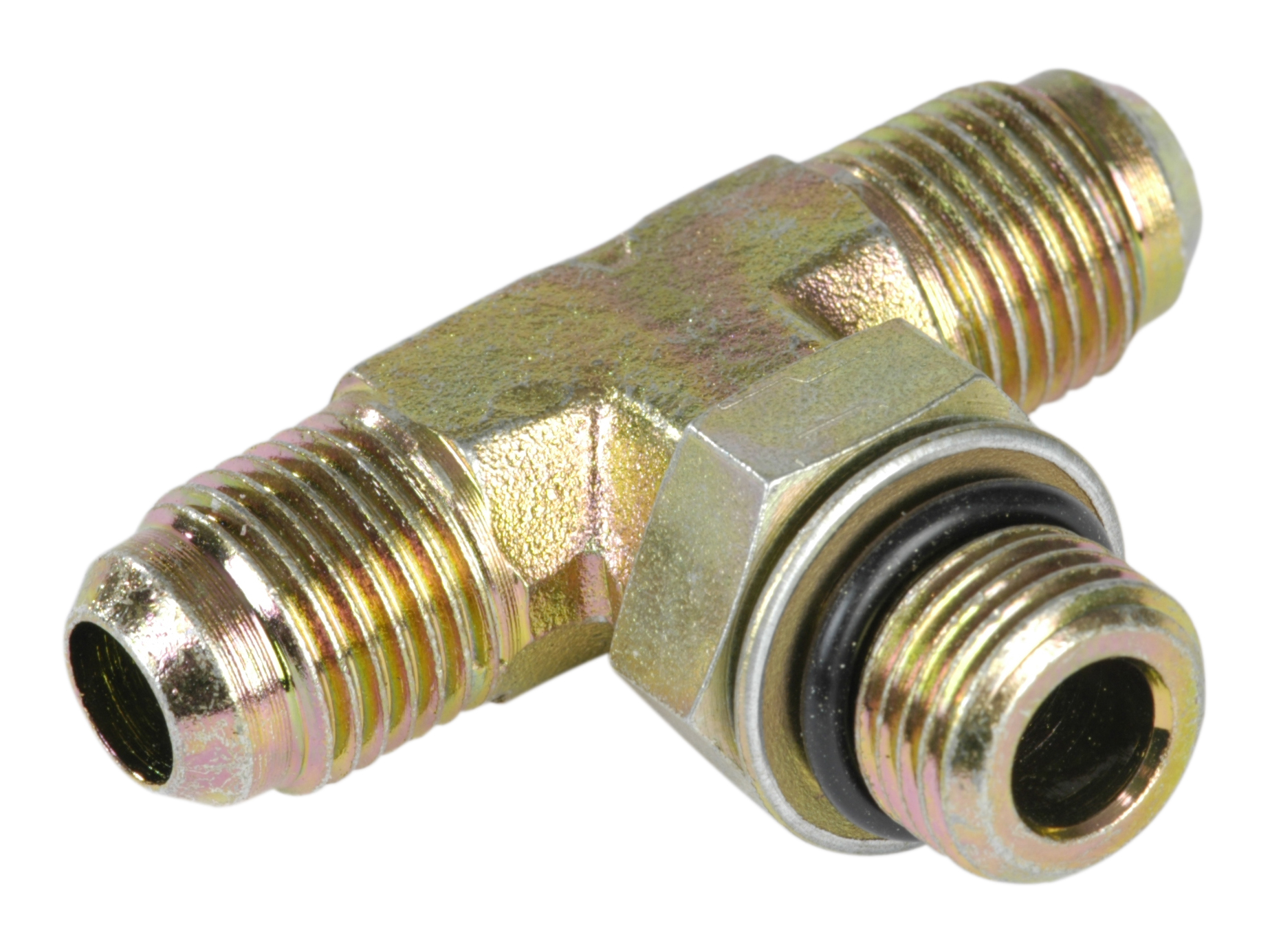

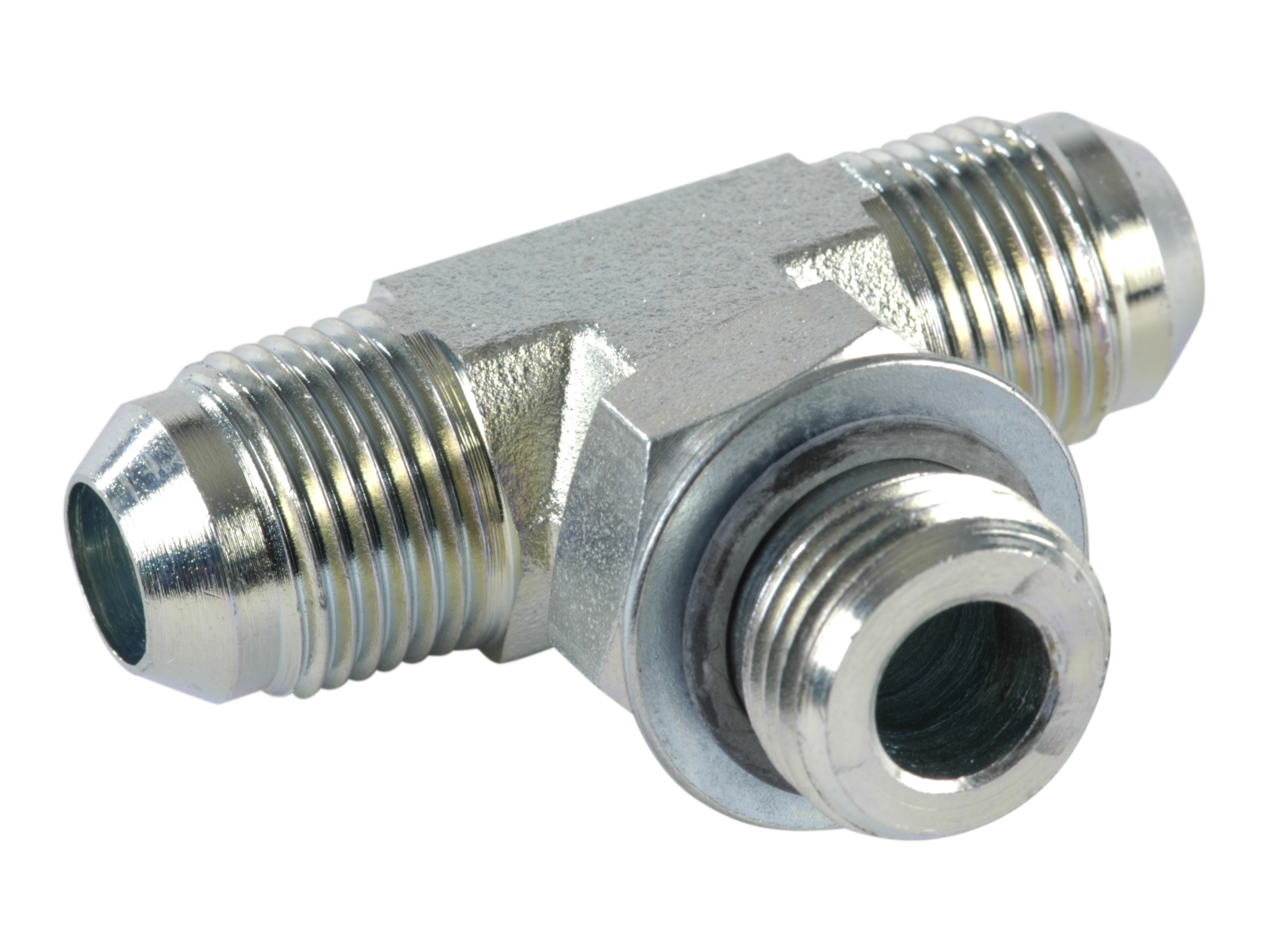

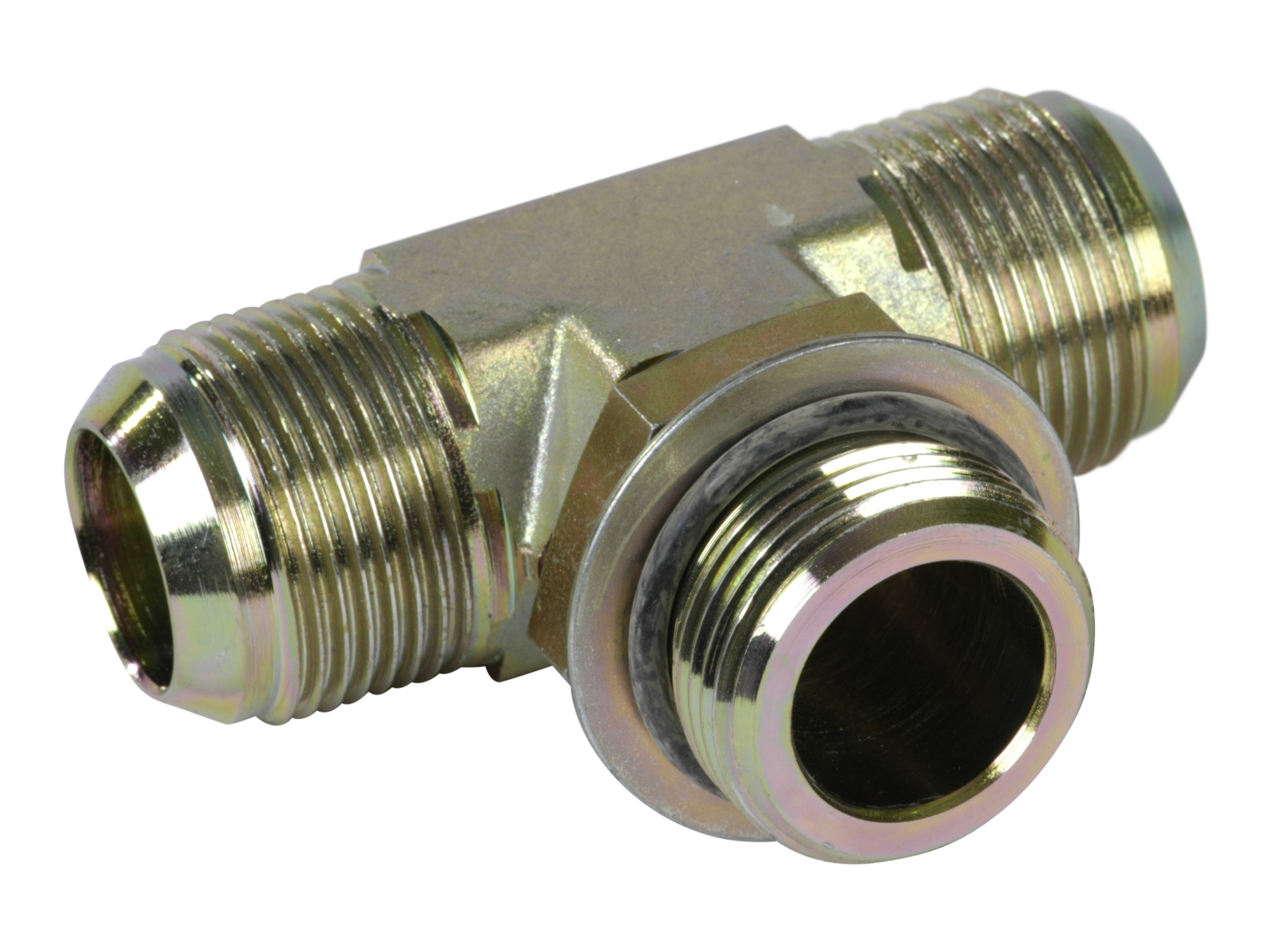

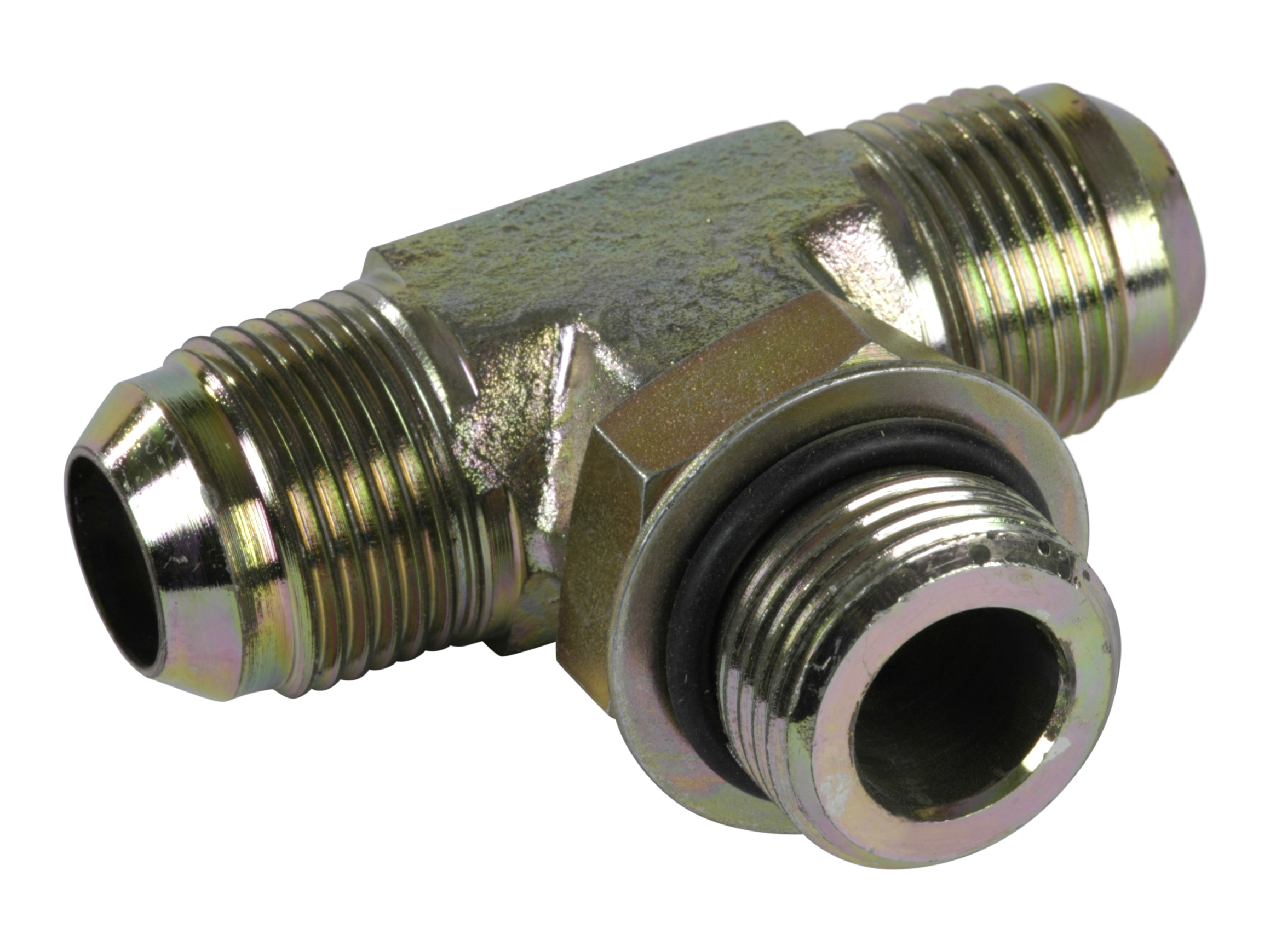

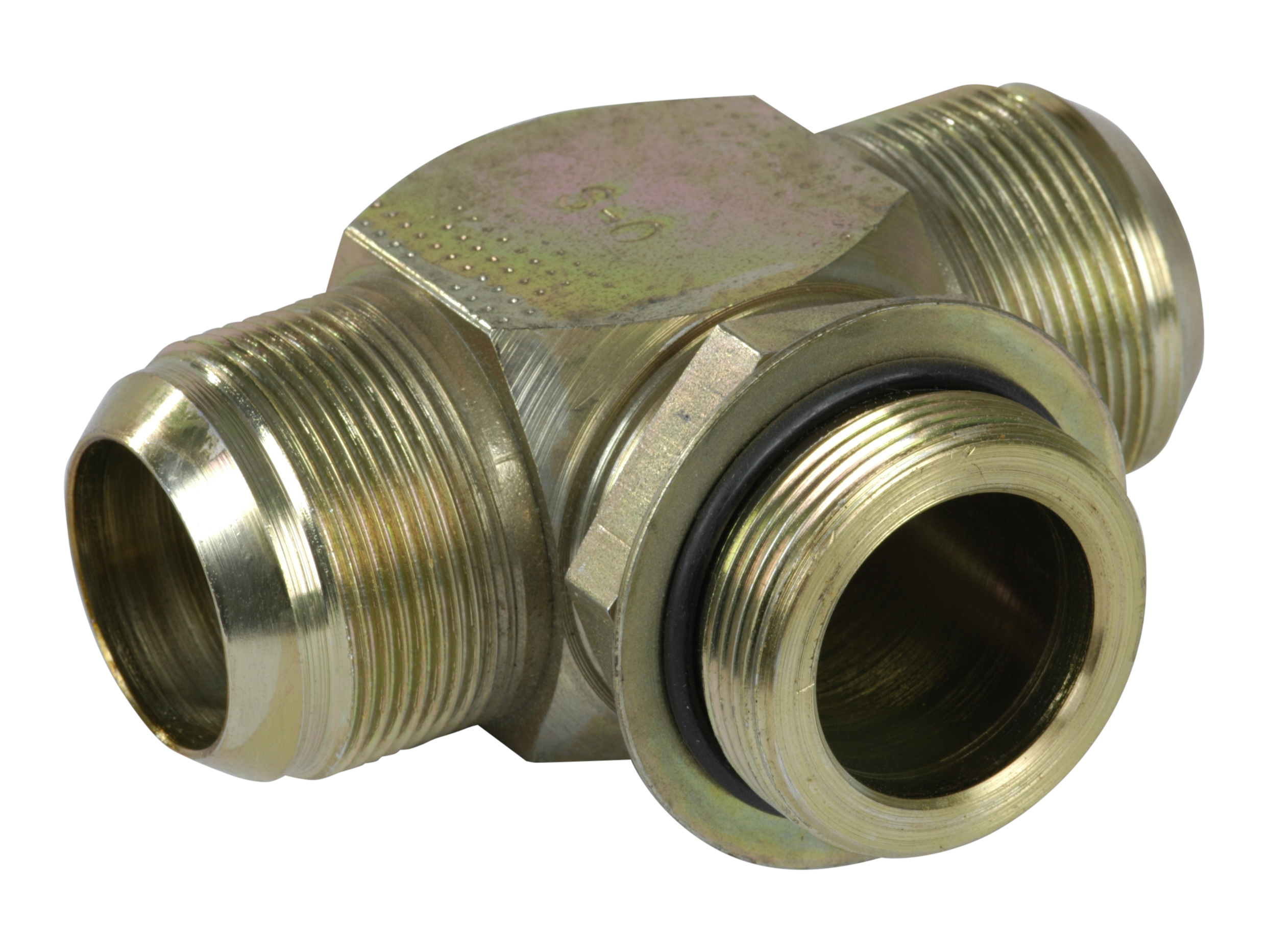

T-adapter JIC male x UNF male counter nut x JIC male - TOL-U / JTEEU

T-adapter JIC male x UNF male counter nut x JIC male - TOL-U / JTEEU

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread outer Thread outer Pressure max.
TOL-06-7/16 S585-06-11U Tee UNF 6 mm 7/16-20 JIC 7/16-20 UNF 450 bar
TOL-08-1/2 S585-08-12U Tee UNF 8 mm 1/2-20 JIC 1/2-20 UNF 416 bar
TOL-10-9/16 S585-10-14U Tee UNF 10 mm 9/16-18 JIC 9/16-18 UNF 350 bar
TOL-12-3/4 S585-12-19U Tee UNF 12 mm 3/4-16 JIC 3/4-16 UNF 350 bar
TOL-16-7/8 S585-16-22U Tee UNF 16 mm 7/8-14 JIC 7/8-14 UNF 350 bar
TOL-20-17/16 S585-20-27U Tee UNF 20 mm 1.1/16-12 JIC 1.1/16-12 UNF 300 bar
TOL-25-21/16 S585-25-33U Tee UNF 25 mm 1.5/16-12 JIC 1.5/16-12 UNF 290 bar
TOL-38-1.7/8 S585-38-48U Tee UNF 38 mm 1.7/8-12 JIC 1.7/8-12 UNF 250 bar
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Material
Steel
Surface treatment
Electro-galvanized / White chromatized
