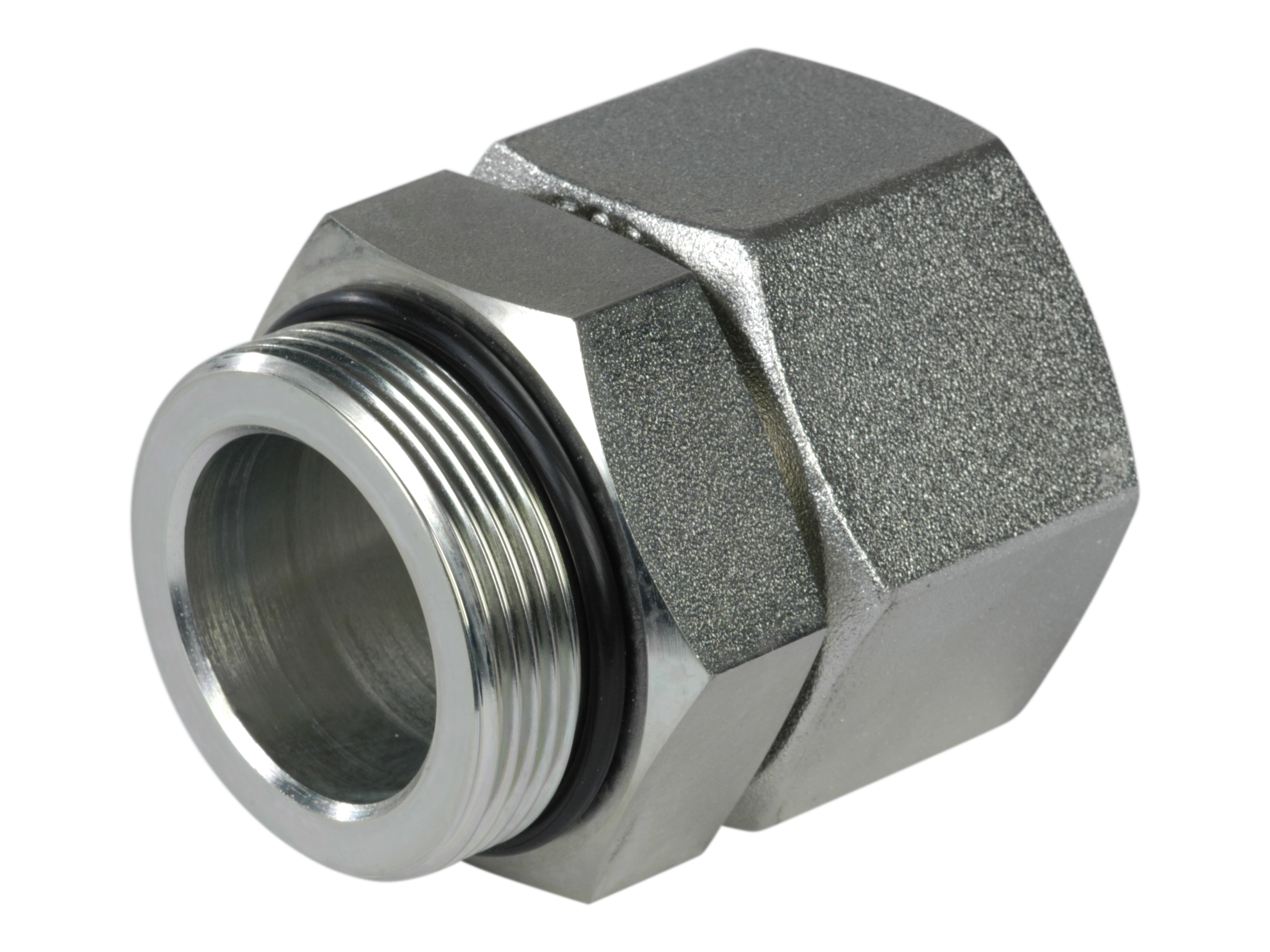

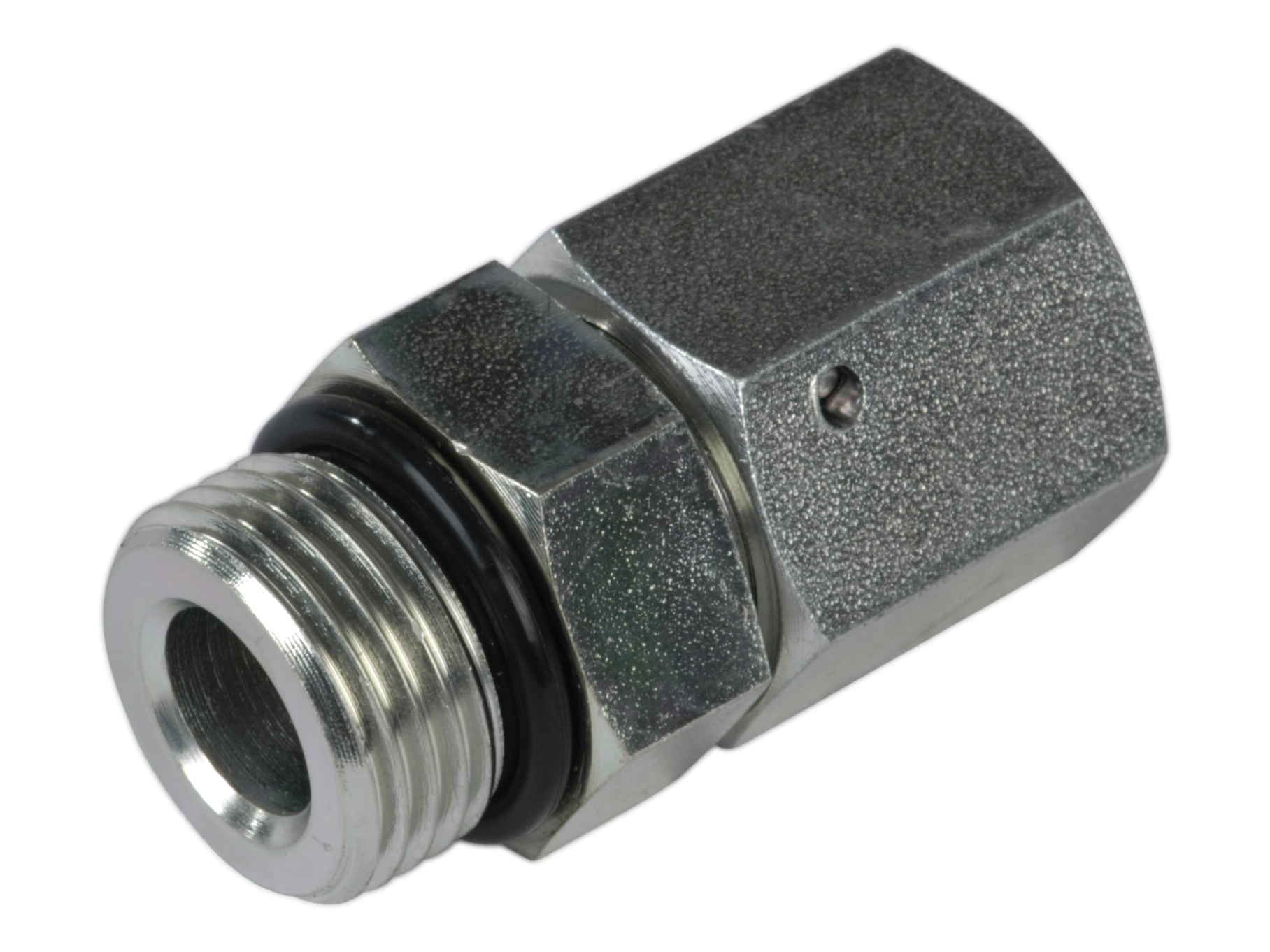

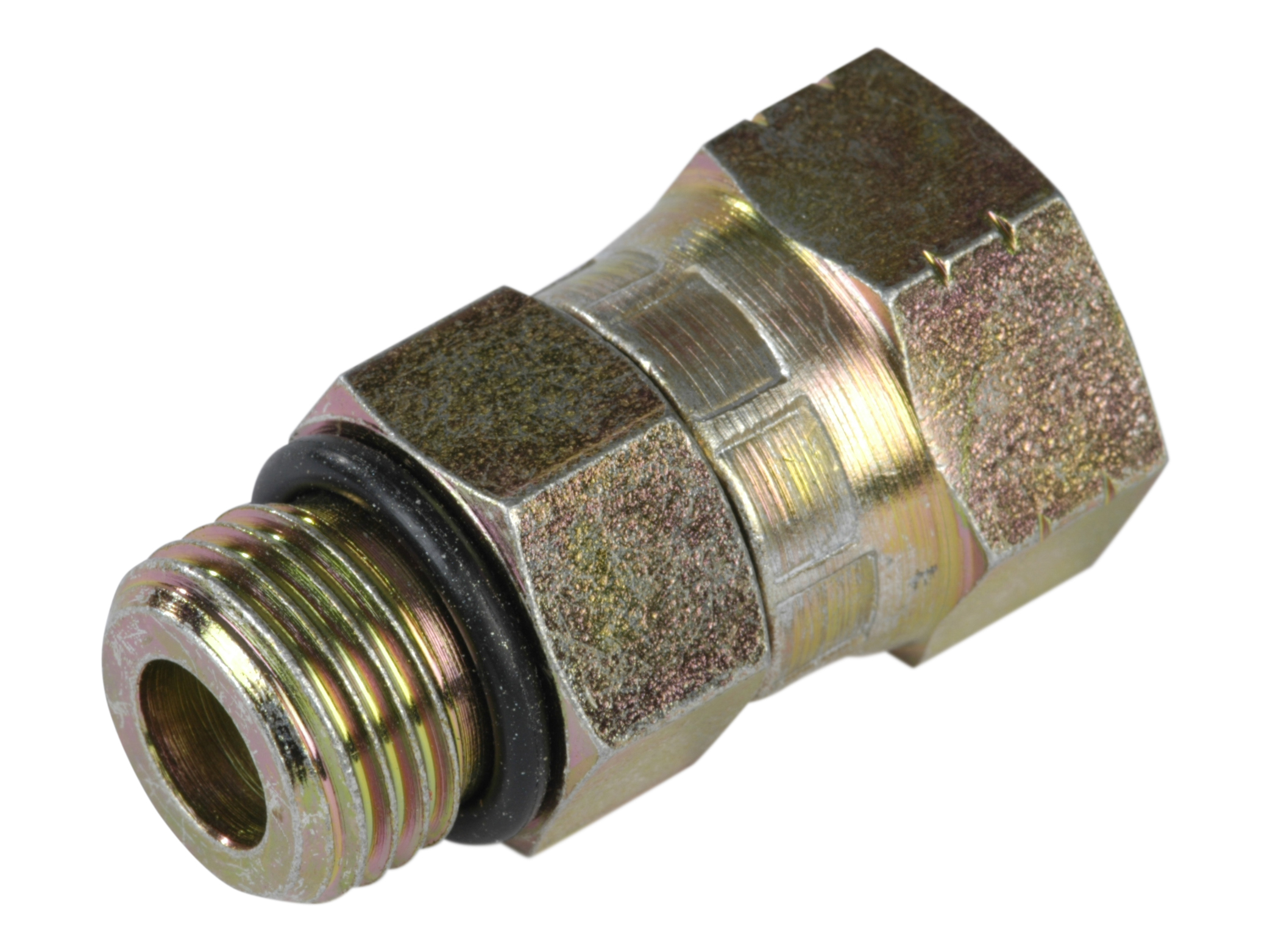

Adapter UNF male x JIC female ED seal - FG / JEVGEU

S170-06-11U adaptor with nut

S170-10-14U adaptor with nut

S170-12-19U adaptor with nut

S170-20-27U adaptor with nut

S170-25-33U adaptor with nut

S170-30-41U adaptor with nut

S170-38-48U adaptor with nut

SELECT VARIANT

Partnumber	Description	Diameter pipe	Thread inner	Thread outer	Pressure max.
FG-06-7/16	S170-06-11U adaptor with nut		7/16-20 JIC	7/16-20 UNF	450 bar
FG-10-9/16	S170-10-14U adaptor with nut		9/16-18 JIC	9/16-18 UNF	350 bar
FG-12-3/4UNF	S170-12-19U adaptor with nut		3/4-16 JIC	3/4-16 UNF	350 bar
FG-20-1.1/16	S170-20-27U adaptor with nut		1.1/16-12 JIC	1.1/16-12 UNF	300 bar
FG-25-1.5/16	S170-25-33U adaptor with nut	25 mm	1.5/16-12 JIC	1.5/16-12 UNF	290 bar
FG-32-1.5/8	S170-30-41U adaptor with nut		1.5/8-12 JIC	1.5/8-12 UNF	240 bar
FG-38-1.7/8	S170-38-48U adaptor with nut		1.7/8-12 JIC	1.7/16-12 UNF	250 bar

Angle

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Material

Steel

Surface treatment

Electro-galvanized / White chromatized
