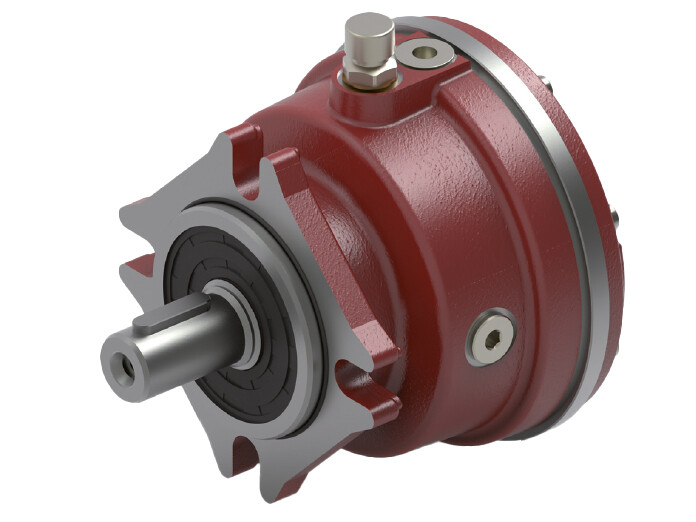

Reggiana brakes for orbital motors

Reggiana brakes for orbital motors

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Torque static Pressure opening min. Pressure opening max.
154-2348M10 Bremse RF2/32/310/OMP-OMR ø 25 31 - 34 daNm 18 - 20 bar 250 bar
154-2845 Brake RF2/21/DG-RF/288 Input OMR/OMP Output OMR/OMP ø25 20 - 22 daNm 12 - 13 bar 250 bar
154-2846 Brake RF2/32/DG-RF/288 Input OMR/OMP Output OMR/OMP ø25 31 - 34 daNm 18 - 20 bar 250 bar
154-2847 Brake RF2/43/DG-RF/288 Input OMR/OMP Output OMR/OMP ø25 41 - 45 daNm 24 - 26 bar 250 bar
154-2847M77 Brake RF2/60/DG-RF/288 Input OMR/OMP Output OMR/OMP ø25 57 - 60 daNm 27 - 32 bar 250 bar
154-2852 Brake RF2/43/DG-RF/289 Input OMSS Output OMS ø32 41 - 45 daNm 24 - 26 bar 250 bar
154-2857 Brake RF2/43/DG-RF/290 Input OMSS Output OMSW ø36 41 - 45 daNm 24 - 26 bar 250 bar
154-2883 Brake RF5/85/RR310-710/OMTS 83 - 92 daNm 18 - 20 bar 250 bar
154-2892 Brake RF5/130/RR310-710/OMVS 126 - 136 daNm 27 - 29 bar 250 bar
154-5302 Brake RF5/43/DG-RF/313 Input OMVS Output OMV 42 - 46 daNm 9 - 10 bar 250 bar
154-5306 Brake RF5/130/DG-RF/313 Input OMVS Output OMV 126 - 136 daNm 27 - 29 bar 250 bar
154-5310 Brake RF5/65/DG-RF/314 Input OMTS Output OMT 61 - 70 daNm 13 - 15 bar 250 bar
154-5311 Brake RF5/85/DG-RF/314 Input OMTS Output OMT 83 - 92 daNm 18 - 20 bar 250 bar
154-5312 Brake RF5/110/DG-RF/314 Input OMTS Output OMT 108 - 118 daNm 23 - 25 bar 250 bar
154-5320 Brake RF5/130/DG-RF/316 Input OMVS Output OMVW 126 - 136 daNm 27 - 29 bar 250 bar
154-5327 Brake RF5/130/DG-RF/315 Input OMTS Output OMTW 126 - 136 daNm 27 - 29 bar 250 bar
154F3353 Brake RF2/60/DG-RF/289 Input OMSS - Output OMS 57 - 60 daNm 27 - 32 bar 250 bar
154F3354 Brake RF2/60/DG-RF/290 Input OMSS - Output OMSW 57 - 60 daNm 27 - 32 bar 250 bar
Brand Name
Reggiana Riduttori
Oil viscocity recommended
32
Pressure opening max.
250
