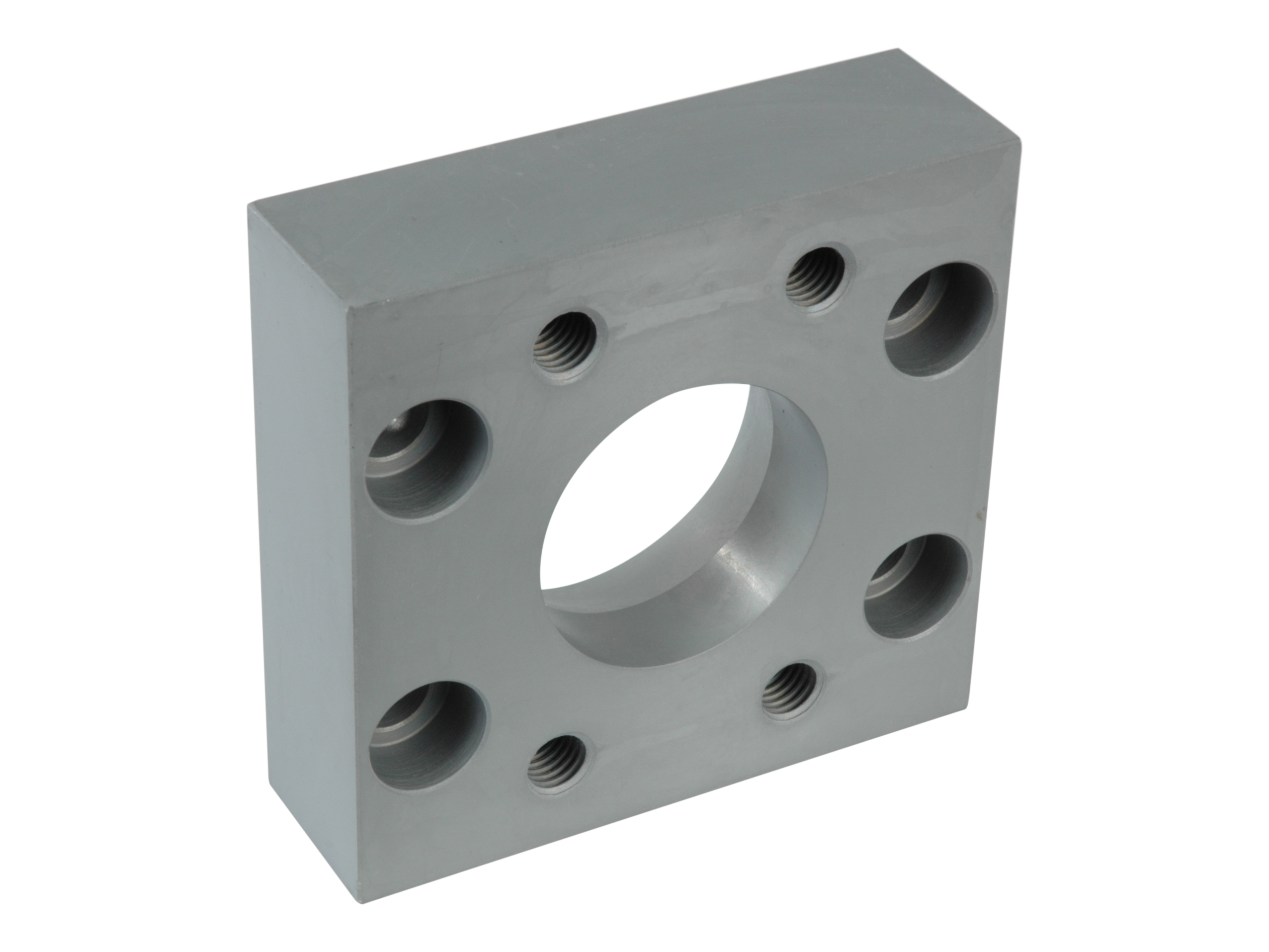

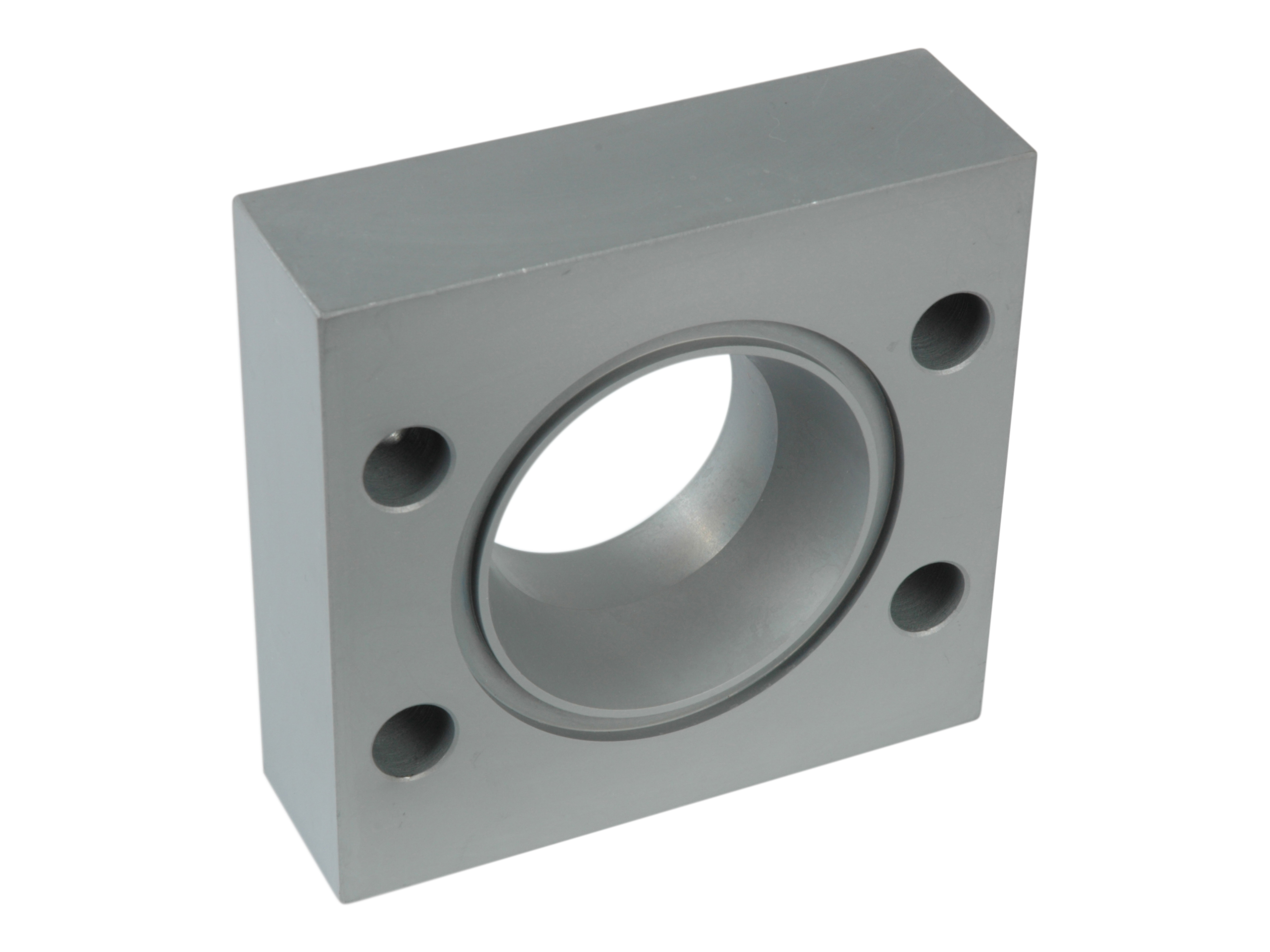

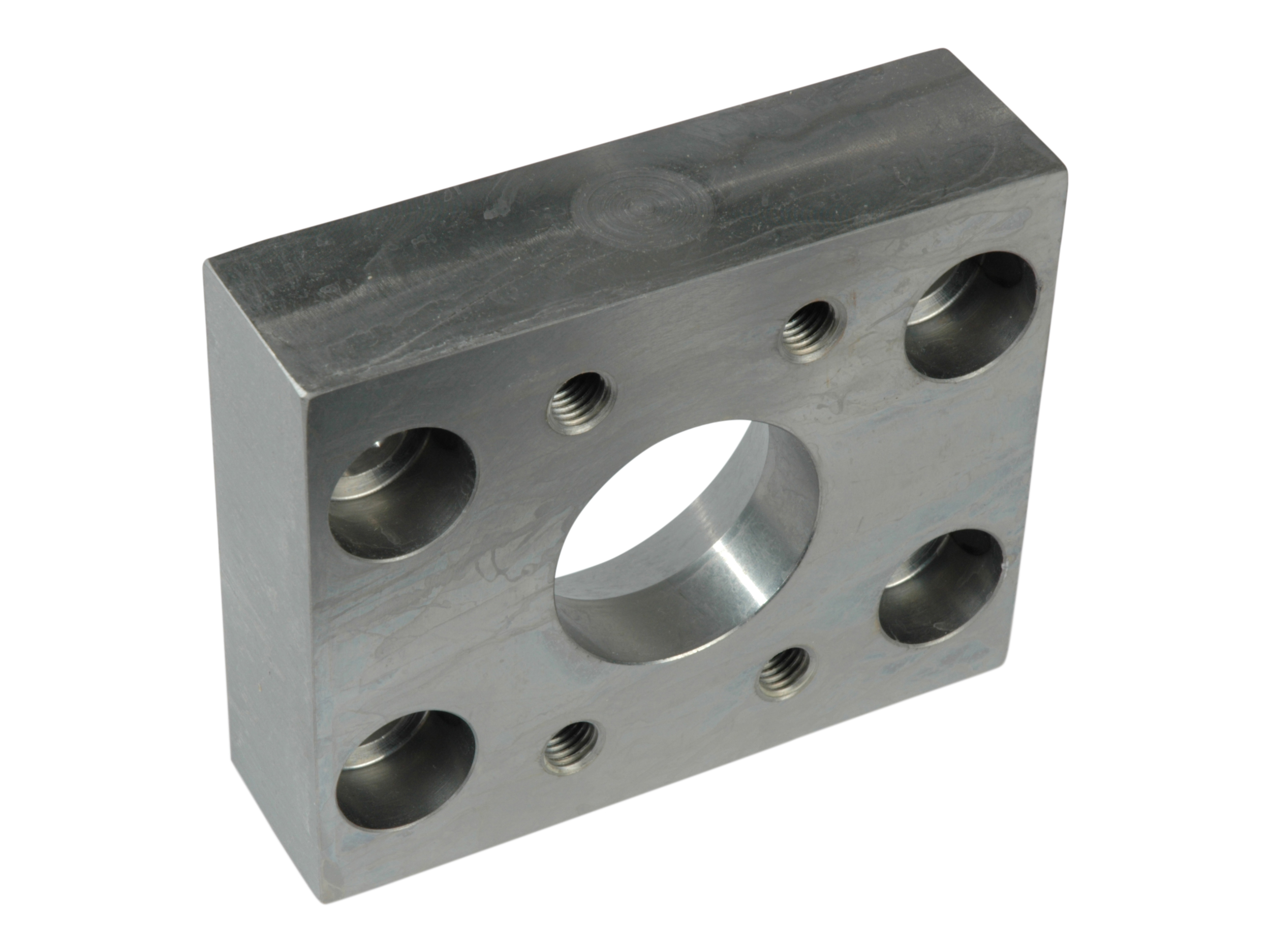

Reduction flanges SAE 3000 PSI - GAF3 / REDF

VÄLJ VARIANT

Artikelnummer	Beskrivning	Flange SAE/DIN	Flange
GAF306/305	Reduction flange 2" x 1.1/2" SAE3000	3000 PSI	1.1/2, 2 "
GAF307/306	Reduction flange 2.1/2" x 2" SAE3000	3000 PSI	2, 2.1/2 "
GAF308/306	Reduction flange 3" x 2" SAE3000	3000 PSI	2, 3 "
GAF308/307	Reduction flange 3" x 2.1/2" SAE3000	3000 PSI	2.1/2, 3 "

Brand Name

Havit

Corrosion resistance

480 hours salt spray DIN EN 9227

Flange SAE/DIN

3000 PSI

Material

Steel

Number of bolts

Shore

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Surface treatment

Zinc-Nickel plated

Temperature max.

+90

Temperature min.

-40

Thread of bolt metric

M12
