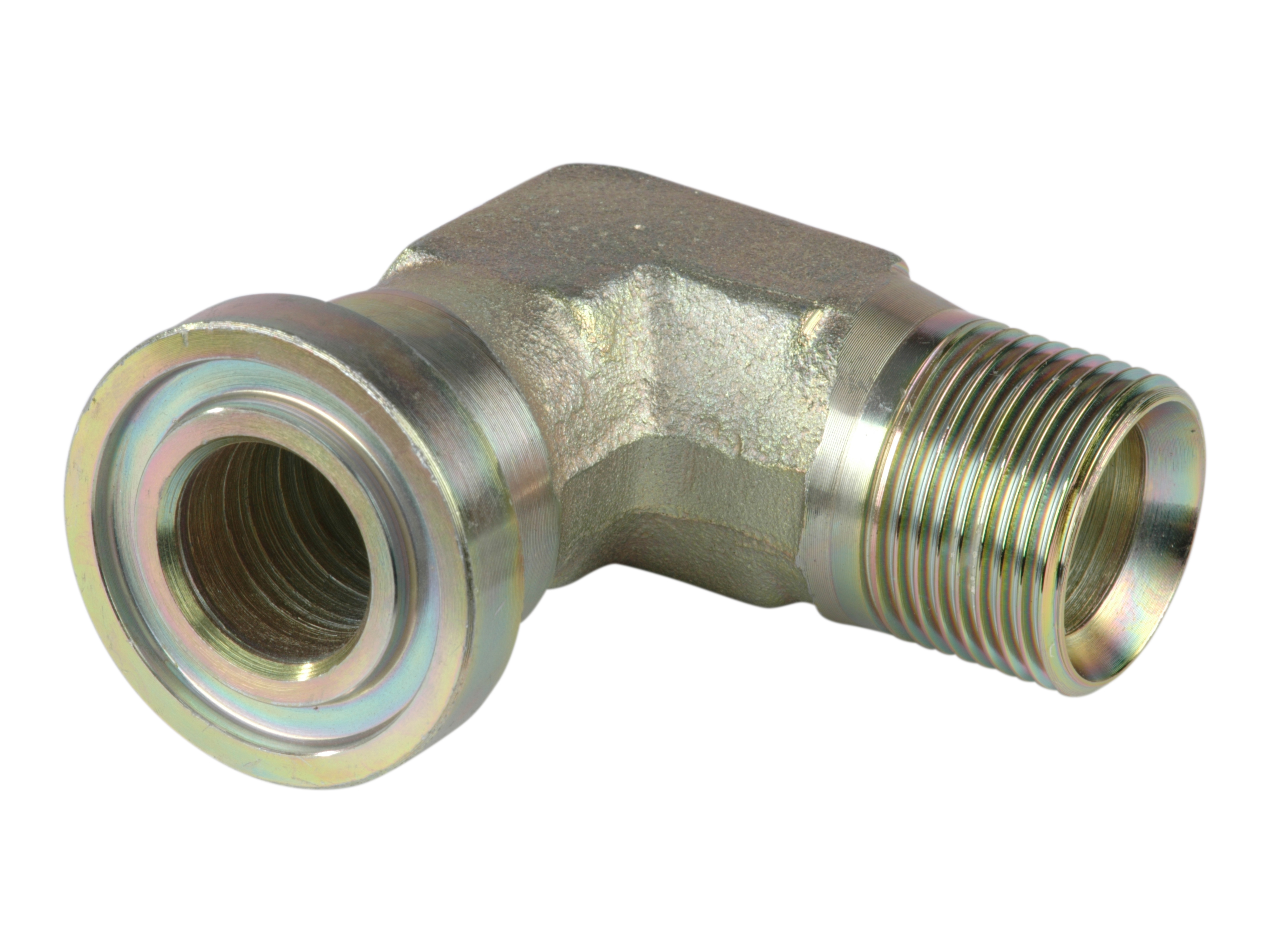

Threaded flange adapter 90° SAE 6000 PSI x BSP male adjustable - 27PH / 8669-G

Threaded flange adapter 90° SAE 6000 PSI x BSP male adjustable - 27PH / 8669-G

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Flange SAE/DIN Flange
27PH1212 Elbow 3/4 BSPx3/4 flange 6000 PSI 3/4 "
27PH1216 Elbow 3/4 BSPx1 flange 6000 PSI 1 "
27PH1616 Elbow 1 BSPx1 flange 6000 PSI 1 "
27PH1620 Elbow 1 BSPx1.1/4 flange 6000 PSI 1.1/4 "
27PH2020 Elbow 1.1/4 BSPx1.1/4 flange 6000 PSI 1.1/4 "
Angle
90
Flange SAE/DIN
6000 PSI
Material
Steel
Shore
90
Standard ISO
ISO 6162-2
Standard SAE
SAE J518 Code 62
Surface treatment
Electro zinc plated
