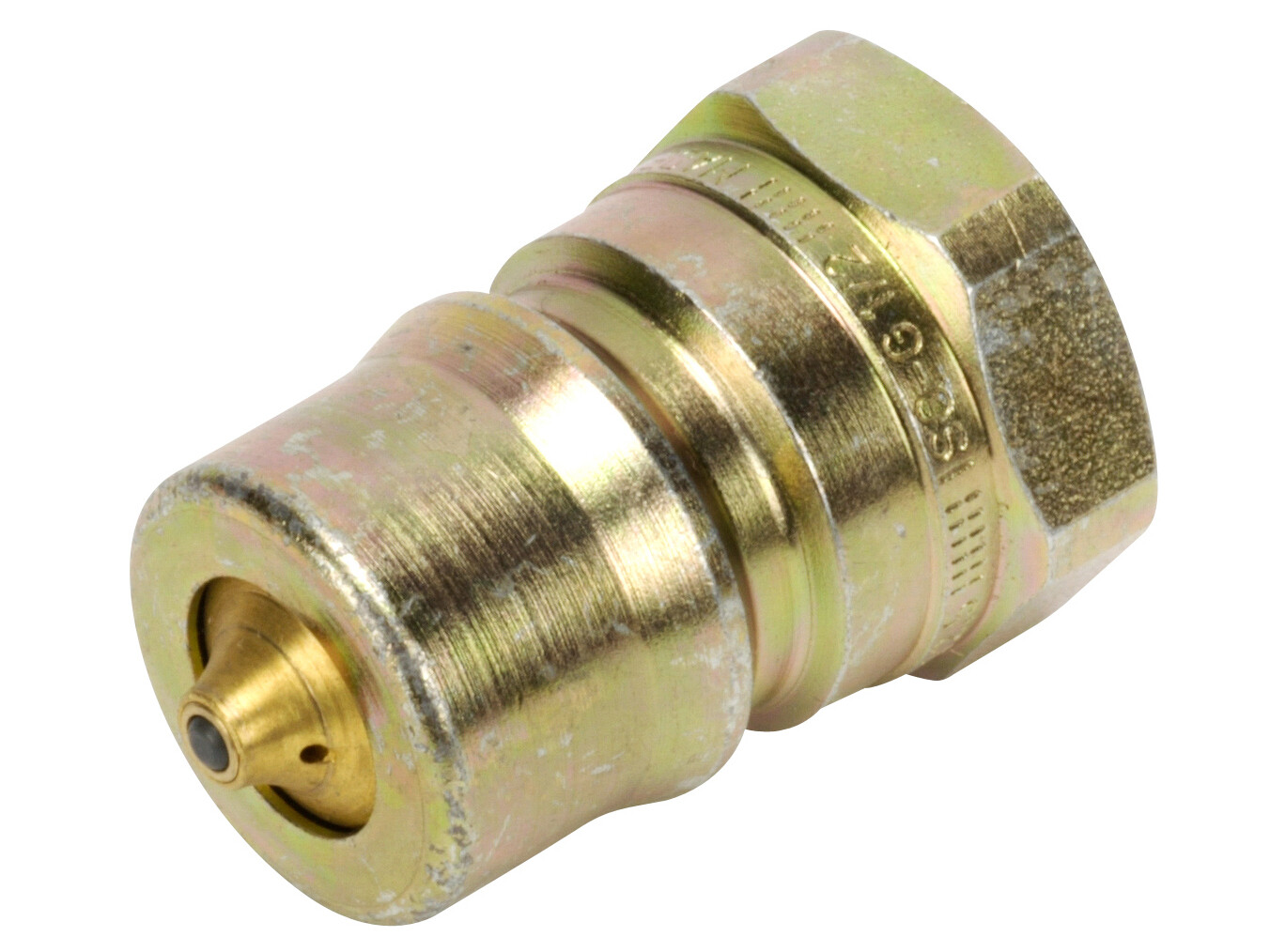

Lynkobling han - Tema (ISO-B) - DN10 - G3/8" m. eliminator

Quick-coupling with ball-lock.

With pressure eliminator = confined pressure is relieved on connection. Requires that one of the coupling parts is relieved to tank on connection.

Partnumber:
TIB3821

Package size:
0 pcs

Min. order quantity is:
1 pcs
DN
10 mm

Dimension A
G 3/8 BSP

Dimension D
24 mm

Dimension D1
19 mm

Dimension L
42 mm

Dimension L1
12 mm

Flow rate nominal LMin
38 lpm

Hexagon
22 mm

Material
Steel

Model code
IB3821

Pressure eliminator
Yes

Pressure max.
320 bar

Sealing material
NBR

Size
3/8 "

Standard ISO
ISO 7241-1-B

Temperature max.
+100 °C

Temperature min.
-30 °C

Thread inner
G 3/8 BSP
Package size
0 pcs

Barcode
5704334114284

Gross weight
0,052 Kg

Net weight
0,052 Kg

Country of origin
swe

Intrastat code
84812010

Quick-coupling with ball-lock.

With pressure eliminator = confined pressure is relieved on connection. Requires that one of the coupling parts is relieved to tank on connection.
