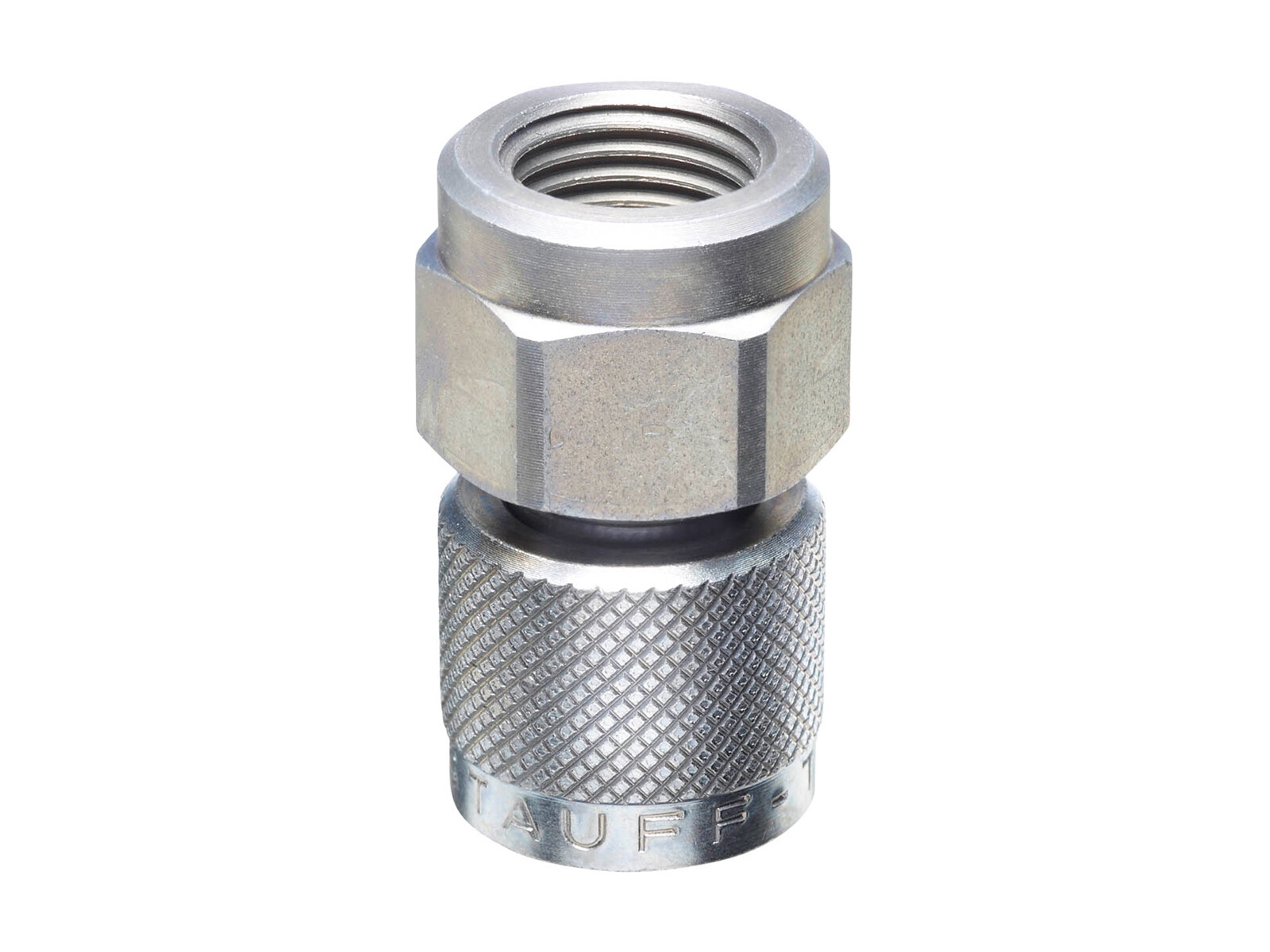

Pressure gauge adaptor1/4 Direct connection M12,65x1,5
Pressure gauge adaptor for direct connection of a pressure gauge or measuring accessory to a mini-test point interface with thread S12,65x1,5. The adaptor provides a G 1/4 BSP inner thread on the gauge side.
Designed for hydraulic pressure measurement setups where a compact direct adaptor is required. The connection uses an NBR seal and a zinc-nickel plated surface. Key selection criteria include the measuring-point thread, the gauge thread, and the pressure and temperature limits.
Typical Applications
- Connecting a pressure gauge to a mini-test measuring point in hydraulic circuits
- Pressure diagnostics and commissioning measurements
Partnumber:
SMD12G1/4
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
Stauff
HEX A
19 mm
Material
Steel
Pressure max.
630 bar
Sealing material
NBR
Surface treatment
Zinc-Nickel plated
T
G 1/4 BSP
Temperature max.
+100 °C
Temperature min.
-20 °C
Thread inner
G 1/4 BSP
Thread inner metric
M12,65x1,5
h
35 mm
Package size
0 pcs
Barcode
5704295391472
Gross weight
0,06 Kg
Net weight
0,06 Kg
Country of origin
DEU
Intrastat code
84812010
Pressure gauge adaptor for direct connection of a pressure gauge or measuring accessory to a mini-test point interface with thread S12,65x1,5. The adaptor provides a G 1/4 BSP inner thread on the gauge side.
Designed for hydraulic pressure measurement setups where a compact direct adaptor is required. The connection uses an NBR seal and a zinc-nickel plated surface. Key selection criteria include the measuring-point thread, the gauge thread, and the pressure and temperature limits.
Typical Applications
- Connecting a pressure gauge to a mini-test measuring point in hydraulic circuits
- Pressure diagnostics and commissioning measurements
