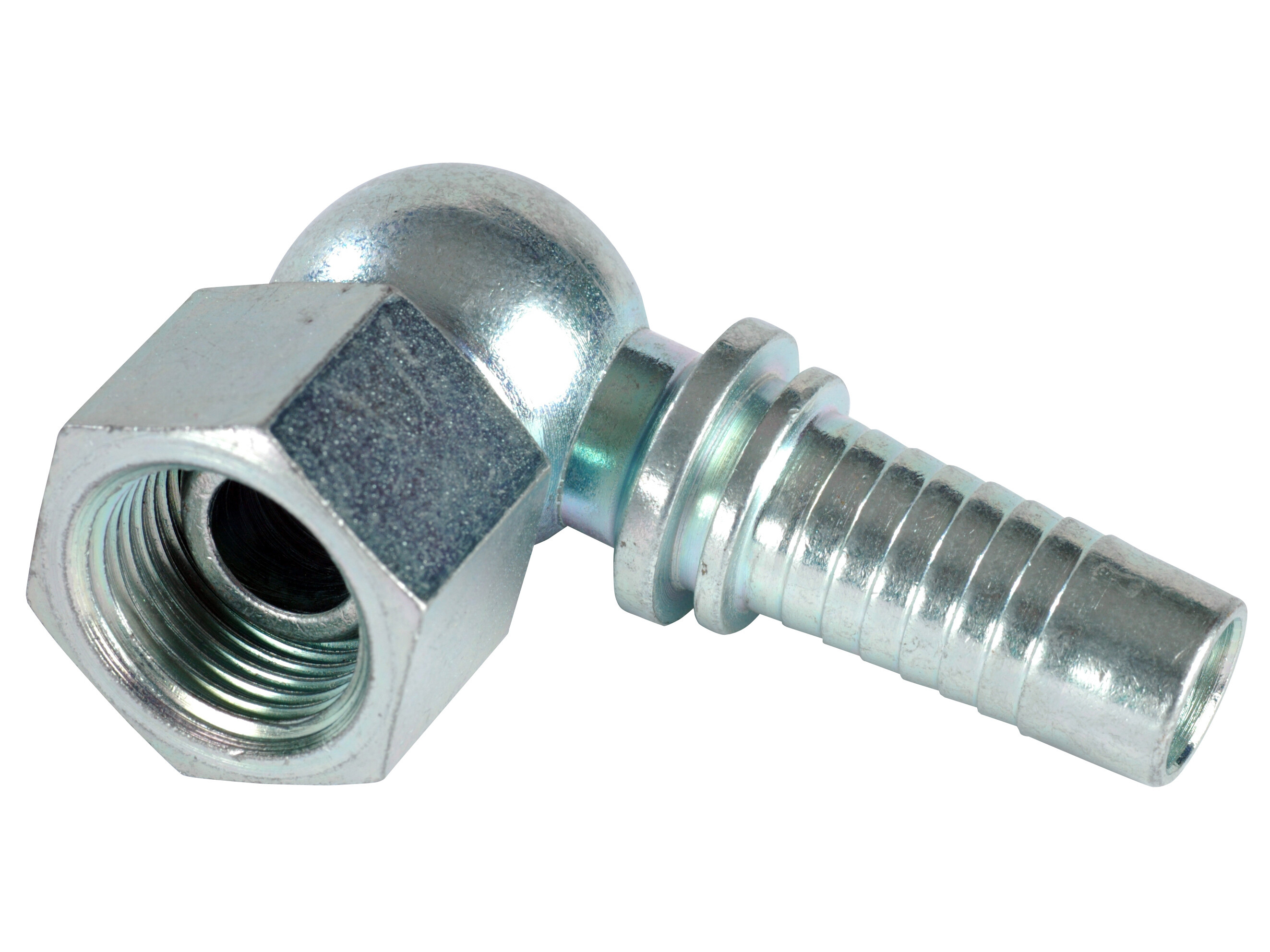

Insert 3/4" - 1" BSP nut 90S

Insert with nut and BSP female thread. Short version elbow.

Connection: BSP female thread in nut, with 60° cone face.

Sealing: Metal against metal (cone).

Varenummer:

P1216NU90S

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Specifikationer
Dimensioner og forsendelse

Angle

90 °

Brand Name

I.M.M Hydraulics

Dimension C

40 mm

Dimension E

38 mm

Dimension H

36 mm

Dimension T

G 1 BSP

Hose coupling type

For separate ferrule

Hose size

3/4 "

Material

Steel

Model code

2300-12-16

Surface treatment

Electro-galvanized / White chromatized

Thread

G 1 BSP

Torque tightening

137 Nm

Pakke str.

0 pcs

Stregkode

5704295694290

Brutto vægt

0,36 Kg

Netto vægt

0,36 Kg

Oprindelsesland

ITA

Intrastat varekode

73269098

Produkt information
Målskitse

Insert with nut and BSP female thread. Short version elbow.

Connection: BSP female thread in nut, with 60° cone face.

Sealing: Metal against metal (cone).
