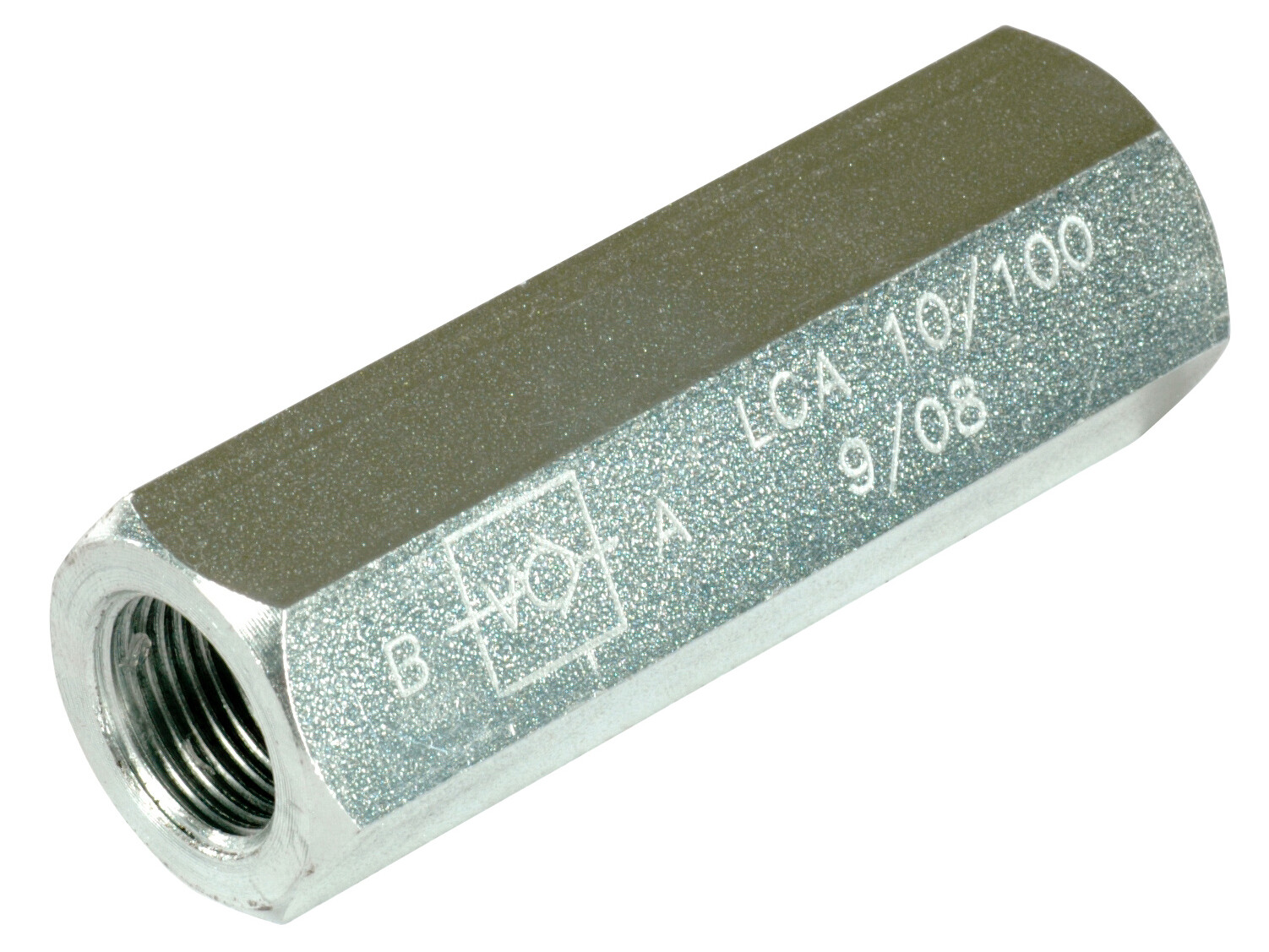

Check valve 3/8 8-100 bar
Line mounted poppet type check valve with adjustable cracking pressure. Flow is always allowed to pass from port A to port B when pressure at A rises above the spring bias pressure and the poppet is pushed from the seat.

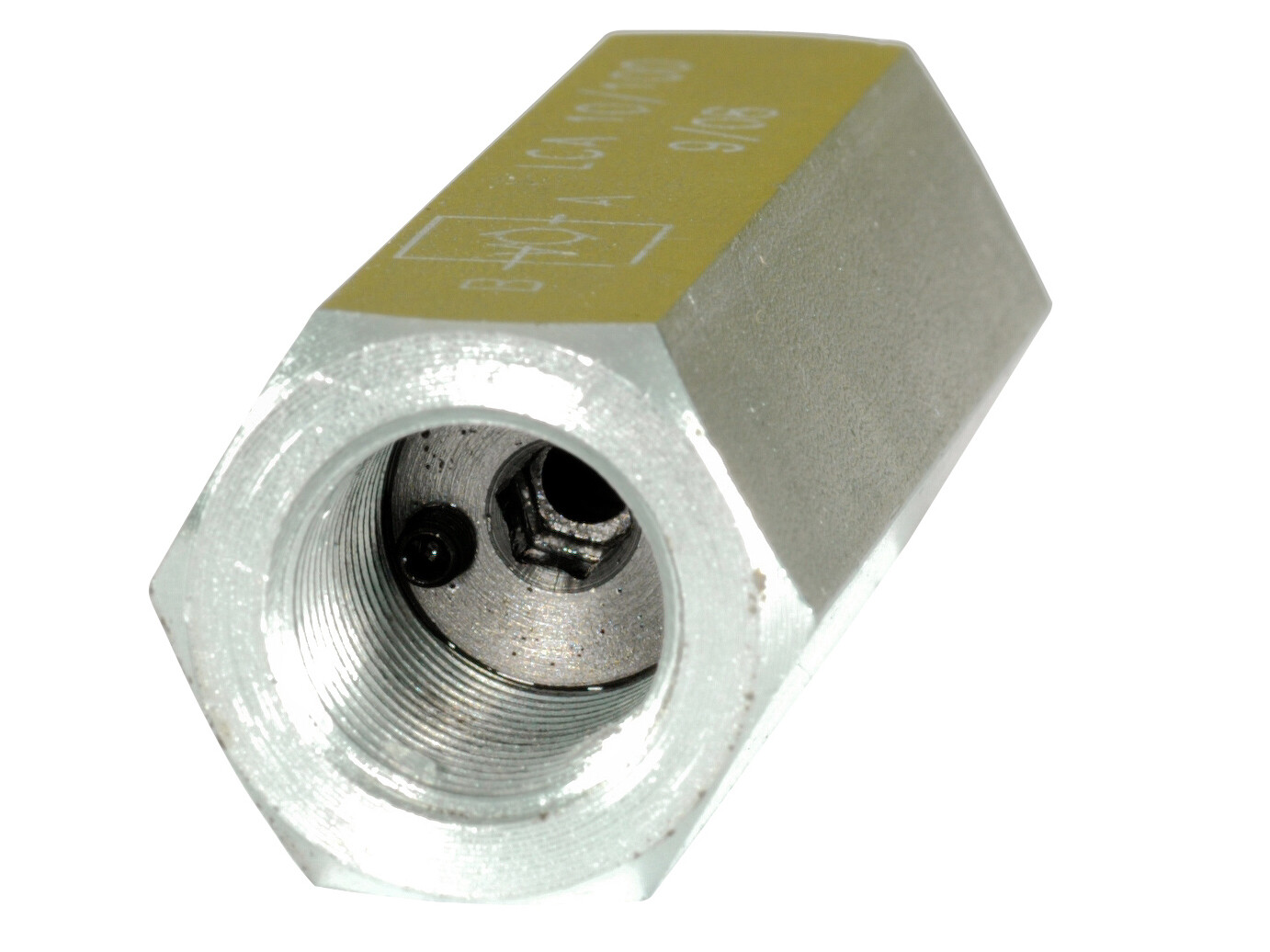

The spring load is adjustable by turning the internal ring nut with a insex wrench: screwing down increases the spring load and increases the cracking pressure (in order to turn the Ring Nut, loosen first the little locking screw with a insex wrench; tighten it again once the spring load is adjusted).
The valve is normally closed (checked) from B to A.
Partnumber:
LCA10/100
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
Hydraspecma
Flow rate nominal LMin
30 lpm
Pressure max.
350 bar
Pressure setting max.
100 bar
Pressure setting min.
8 bar
Temperature max.
+100 °C
Temperature min.
-20 °C
Thread
G 3/8 BSP
Package size
0 pcs
Barcode
5704295791333
Gross weight
0,20 Kg
Net weight
0,20 Kg
Country of origin
ITA
Intrastat code
84812010
Line mounted poppet type check valve with adjustable cracking pressure. Flow is always allowed to pass from port A to port B when pressure at A rises above the spring bias pressure and the poppet is pushed from the seat.
The spring load is adjustable by turning the internal ring nut with a insex wrench: screwing down increases the spring load and increases the cracking pressure (in order to turn the Ring Nut, loosen first the little locking screw with a insex wrench; tighten it again once the spring load is adjusted).
The valve is normally closed (checked) from B to A.
