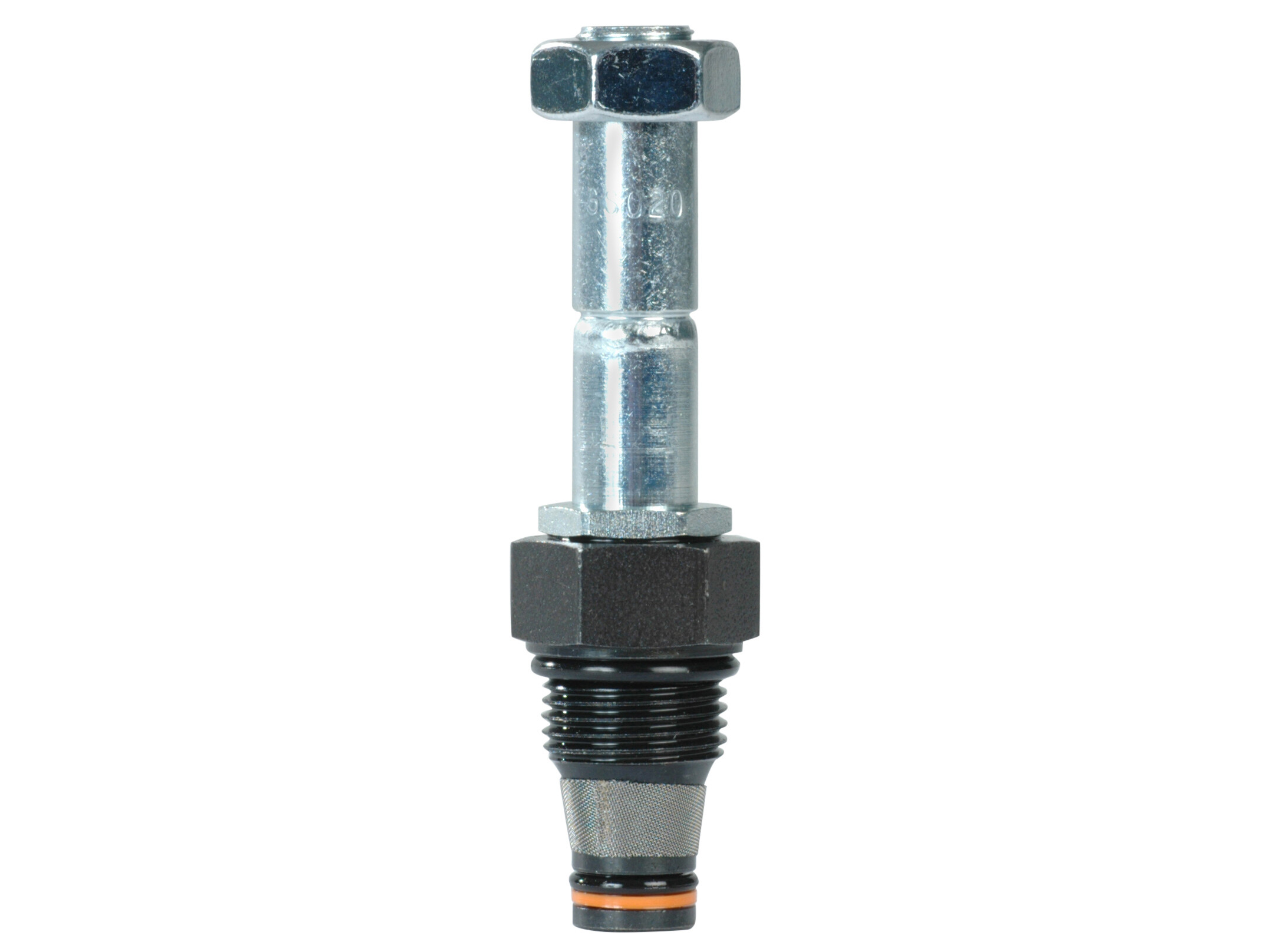

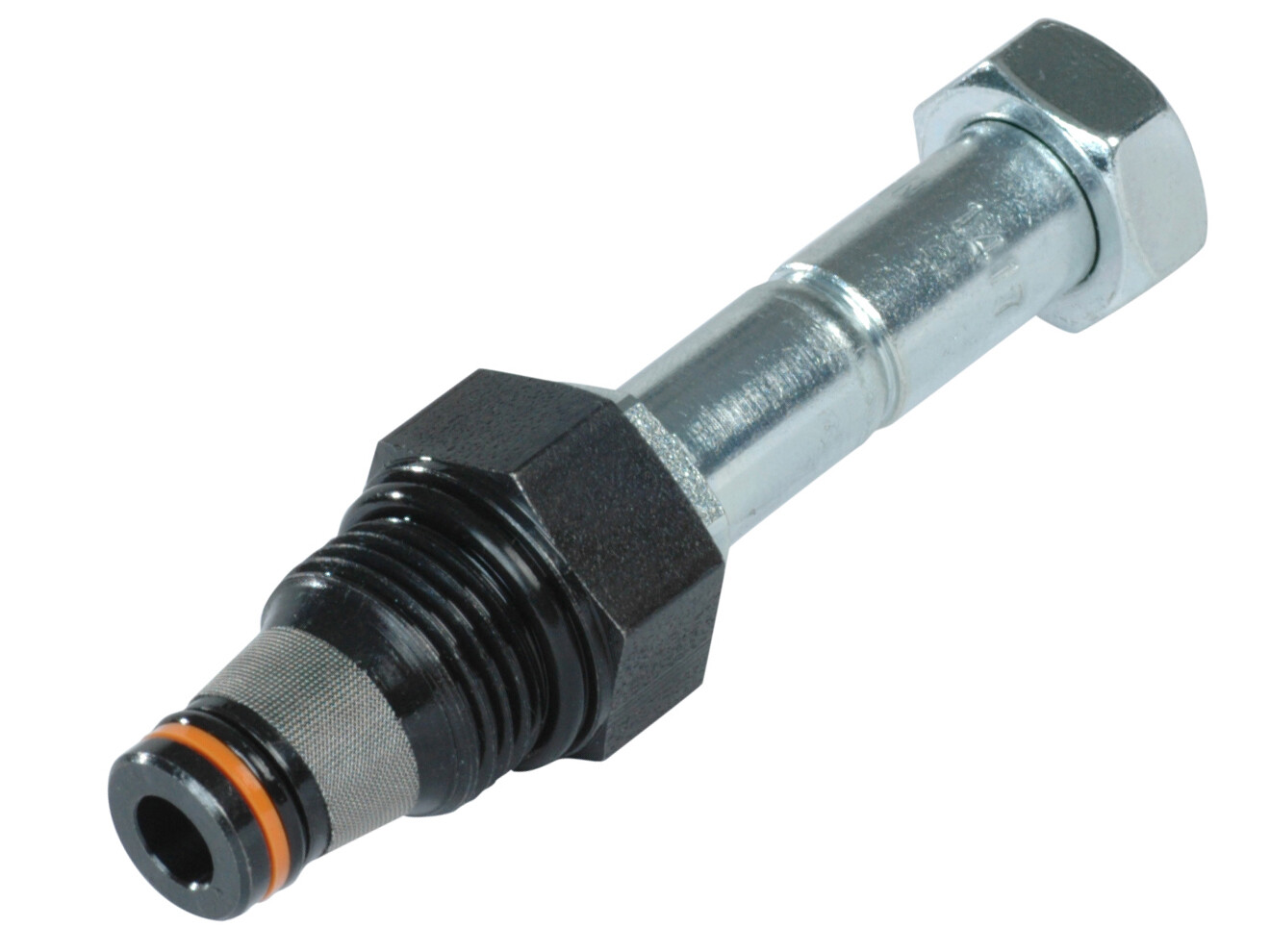

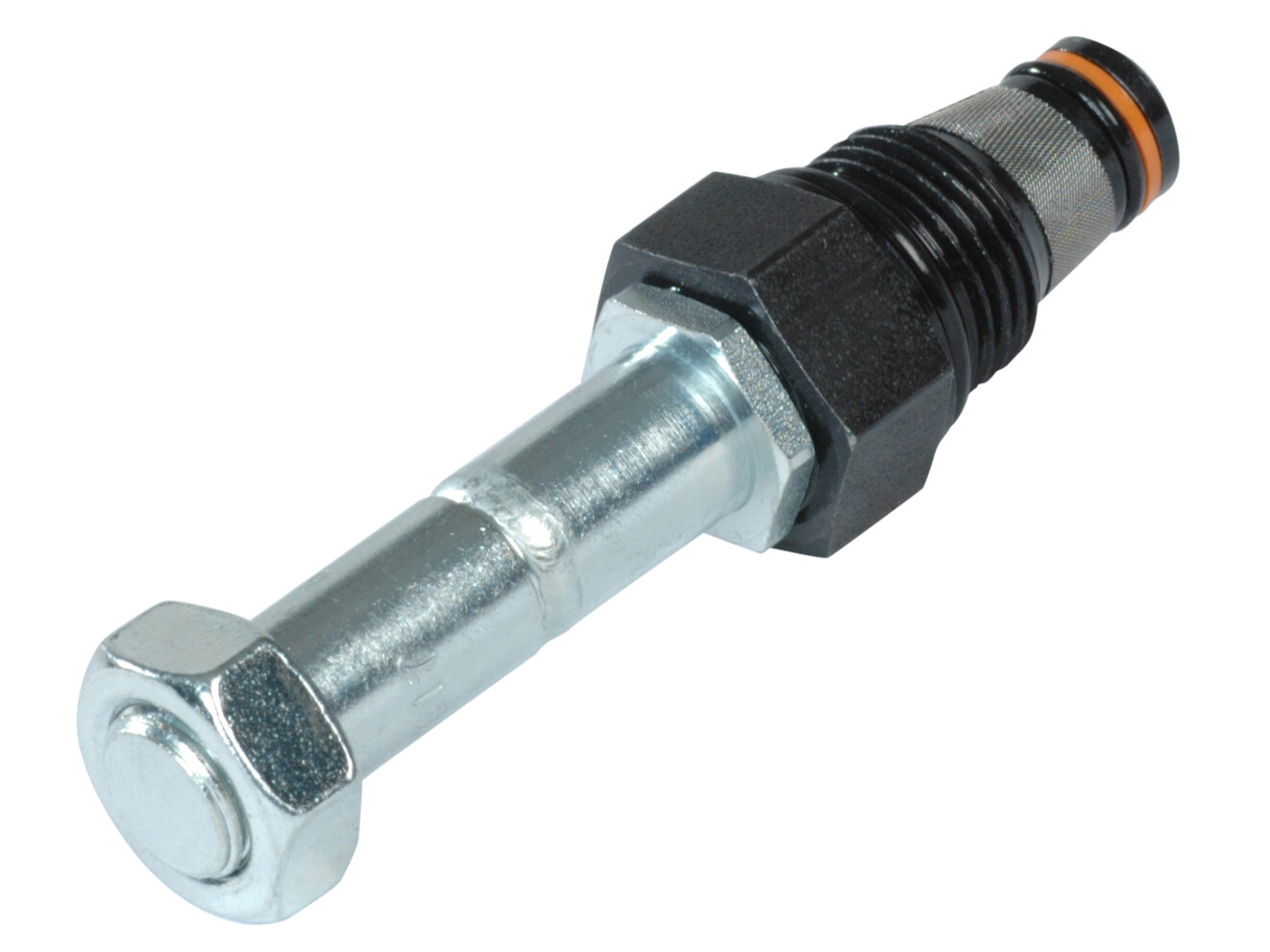

Solenoid cartridge valve With filter

Varenummer:

GS02-01-01N

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Tillbehör (4)

Sensor-/actuator cable - SAC-3P- 3.0-PUR/A-1L-Z

Partnumber: 1434992

Valve Block alu. 1/8 (2L)

Partnumber: 504A

Valve Block alu. 1/4 (2L)

Partnumber: 505A

Ventilblok alu. 3/8 (2L) CAV02-2

Partnumber: 506A

Specifications
Dimensions and shipping

Activation

Solenoid

Brand Name

Hydraspecma

Cavity

CAV02-2

Contamination level max.

18/16/13 - ISO 4406

Filter built-in

Yes

Flow rate nominal LMin

19 lpm

Manual operated

Number of ways/positions

2/2

Oil viscocity recommended

15 - 50 cSt

Pressure max.

210 bar

Sealing material

NBR

Solenoidtype

CCS

Temperature max.

+121 °C

Temperature min.

-34 °C

Torque tightening

30 Nm

Valve type

NC - Normally closed

Package size

0 pcs

Barcode

5704295031620

Gross weight

0,13 Kg

Net weight

0,13 Kg

Country of origin

USA

Intrastat code

84812010

Product information

Solenoid cartridge valve With filter
