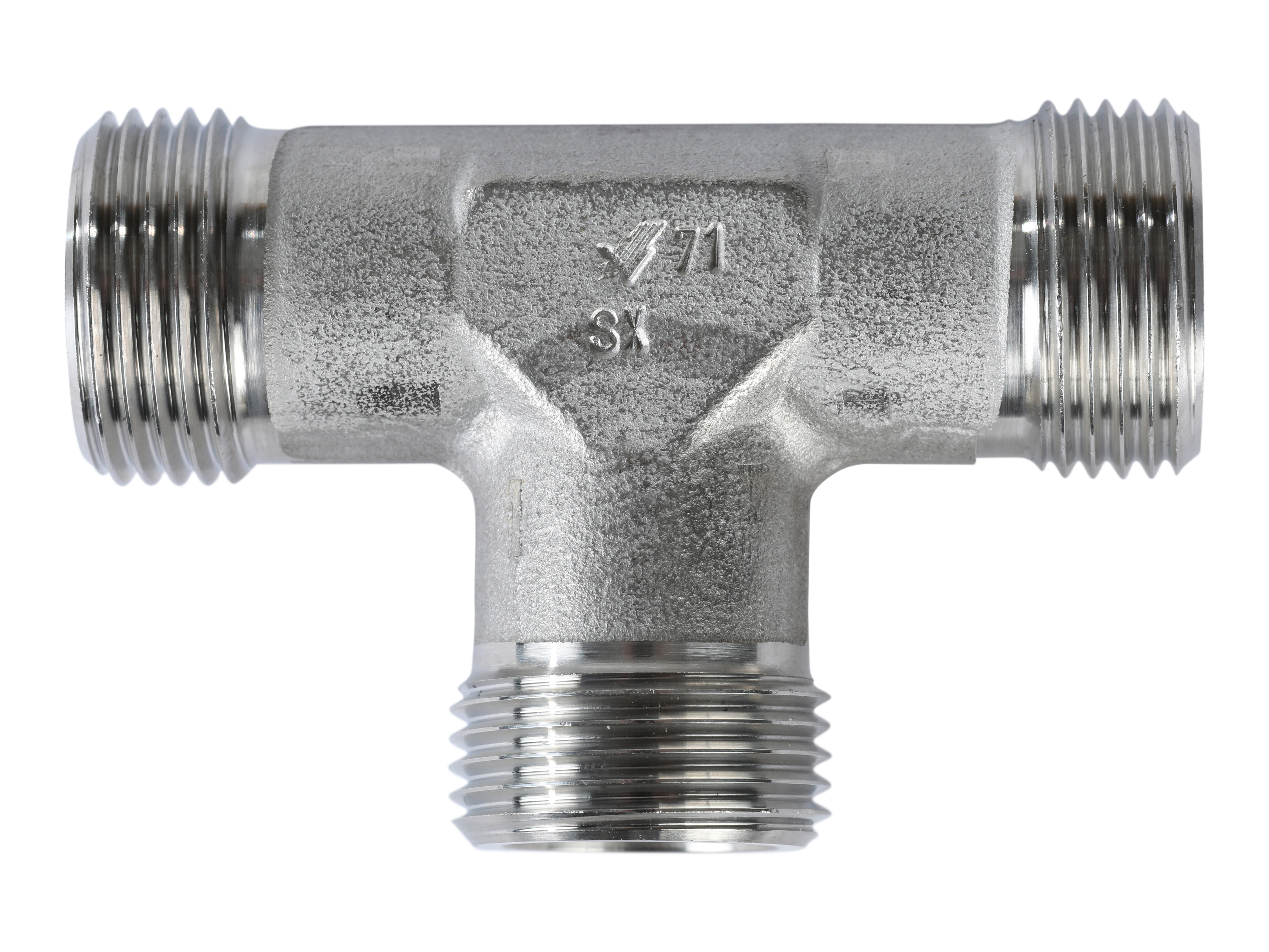

Tee fitting - ø35L - AISI316
Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Varenummer:
G35LX/71
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Brand Name
Volz

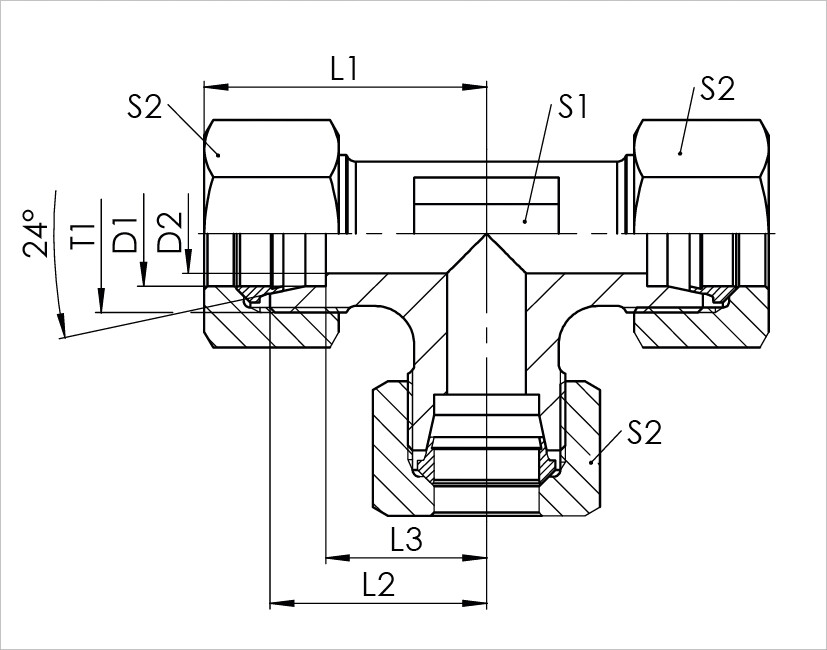

Diameter pipe
35 mm
L1
57 mm
L2
45 mm
L3
34,5 mm
Material
Acid-resistant steel
Material quality
1.4571 / AISI316Ti
Model code
XTV 35 L
Pressure max.
250 bar
S1
41 mm
S2
50 mm
Safety factor
4
Series
L
Temperature max.
+400 °C
Temperature min.
-55 °C
Thread T
M45x2
Thread outer metric
M45x2
Type
Forged
d1
35 mm
d2
30 mm
Pakke str.
0 pcs
Stregkode
5704295771861
Brutto vægt
0,53 Kg
Netto vægt
0,53 Kg
Oprindelsesland
DEU
Intrastat varekode
73072910
Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
