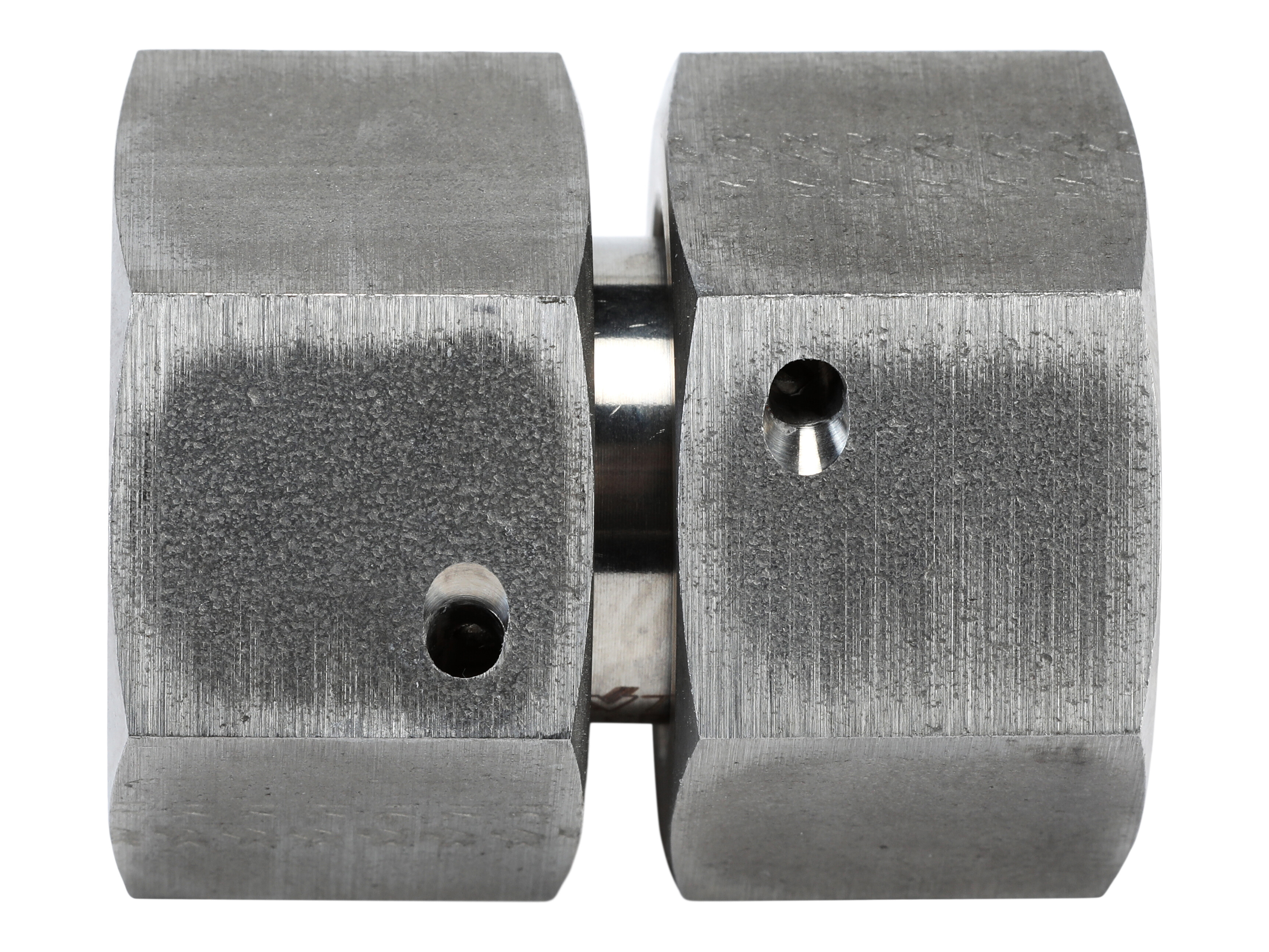

EDKO12L/71 - Omvendt samler - ø12L - AISI 316Ti
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
EDKO12L/71
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
Volz
Diameter pipe
12 mm

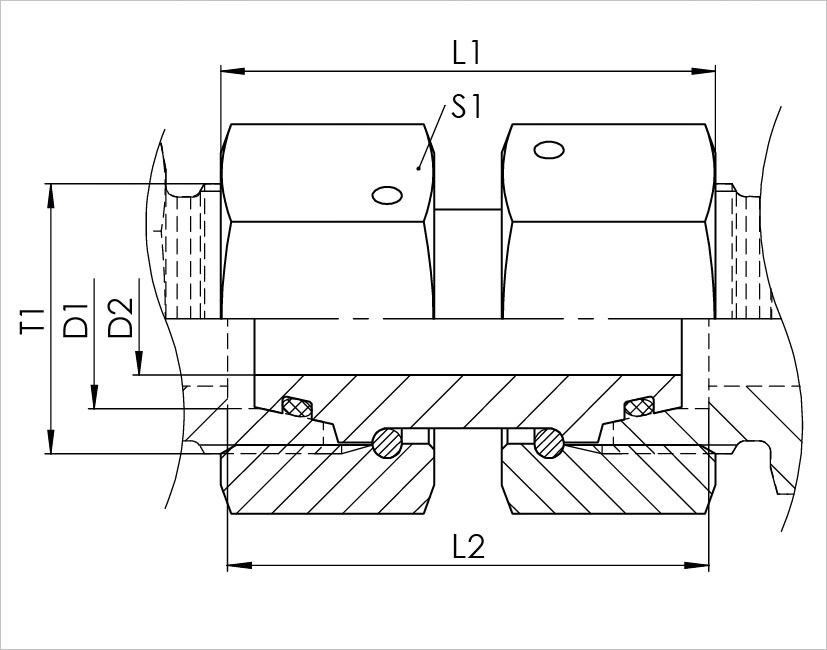

L1
36 mm
L2
34,8 mm
Material
Syrefast Stål
Material quality
1.4571 / AISI316Ti
Model code
EDKV 12 L
Pressure max.
400 bar
REACH compliant
Ja
RoHs compliant
Ja
S1
22 mm
Safety factor
4
Sealing material
FKM/FPM (Viton®)
Series
L
Series 1
N/A
Temperature max.
+200 °C
Temperature min.
-25 °C
Thread T
M18x1,5
Thread inner metric
M18x1,5 MM
d1
12 mm
d2
8 mm
Pakke str.
0 pcs
Stregkode
5704295395203
Brutto vægt
0,08 Kg
Netto vægt
0,08 Kg
Oprindelsesland
DEU
Intrastat varekode
73072910
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Bemærk: Åbning af 3D-filer kræver et program der understøtter fil-formatet
