TMTHW 315 Orbit motor F180-BC Ø140

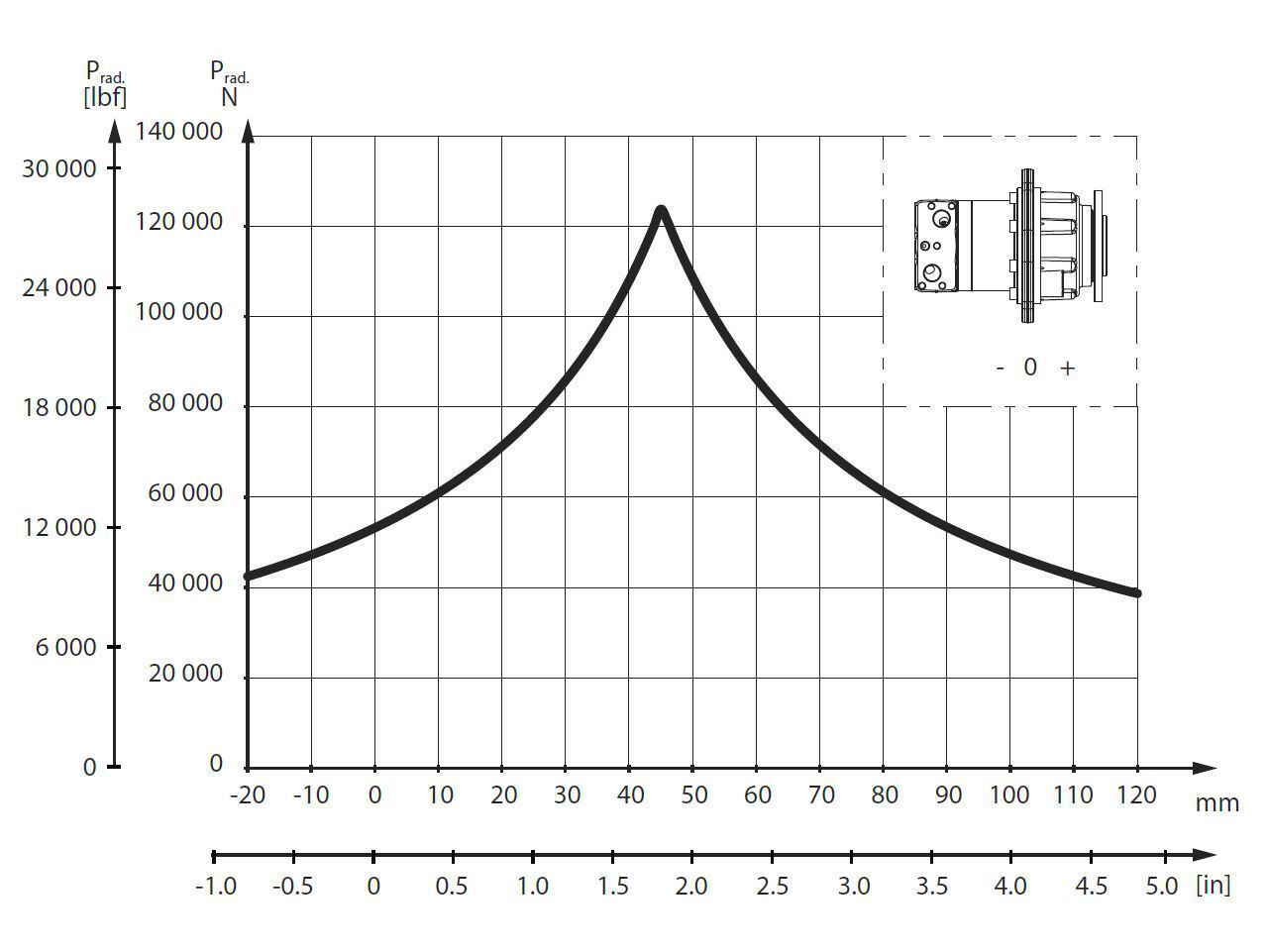

TMTHW is supplied as a wheel-motor designed for high torque and high speed. Increased bearing capcacity. The offset mounting flange allows mounting of a wheel hub, so that radial energy can be absorbed between the tapered roller bearings. A wheel motor is a very compact motor.

Partnumber:

11137330

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Brand Name

Danfoss

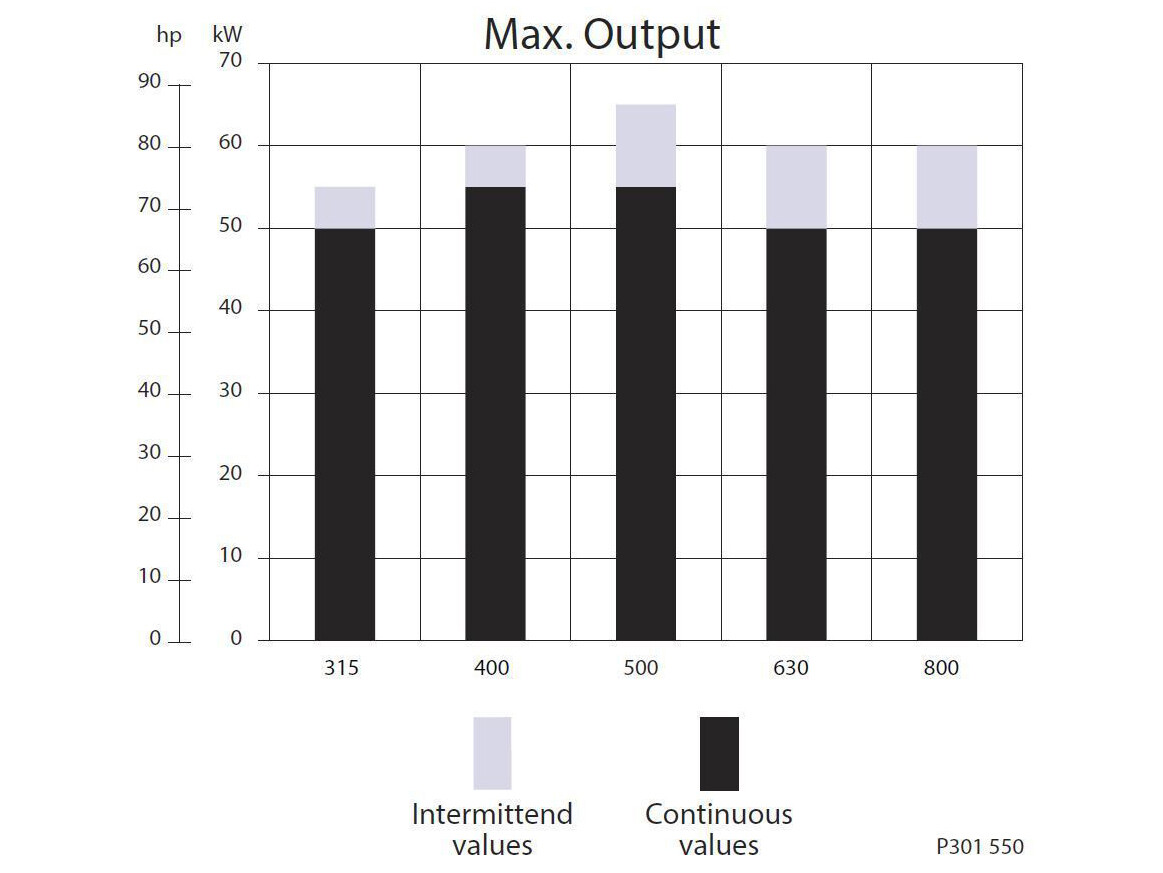

Continuous power max.

50 kW

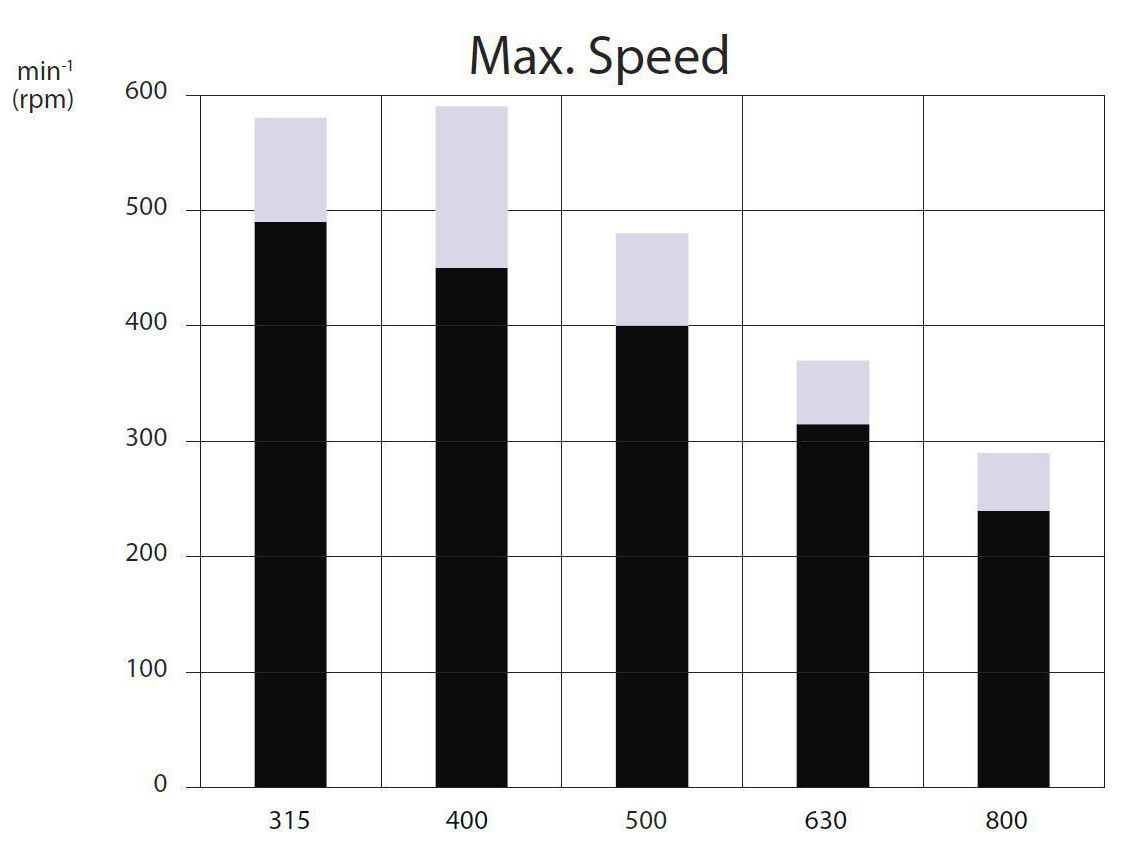

Continuous rotation max.

490 rpm

Dimension L

133.1 mm

Dimension L1

114.9 mm

Dimension L2

130.9 mm

Dimension L3

89.4 mm

Displacement

303.3 cm3

Drainport

G 1/4 BSP

Holes circle

140 mm

Pressure drop continuous max.

300 bar

Torque continuous max.

1300 Nm

Working ports

G 3/4 BSP

Package size

0 pcs

Barcode

5704334497769

Gross weight

39,50 Kg

Net weight

39,50 Kg

Country of origin

Intrastat code

84122981

Product information

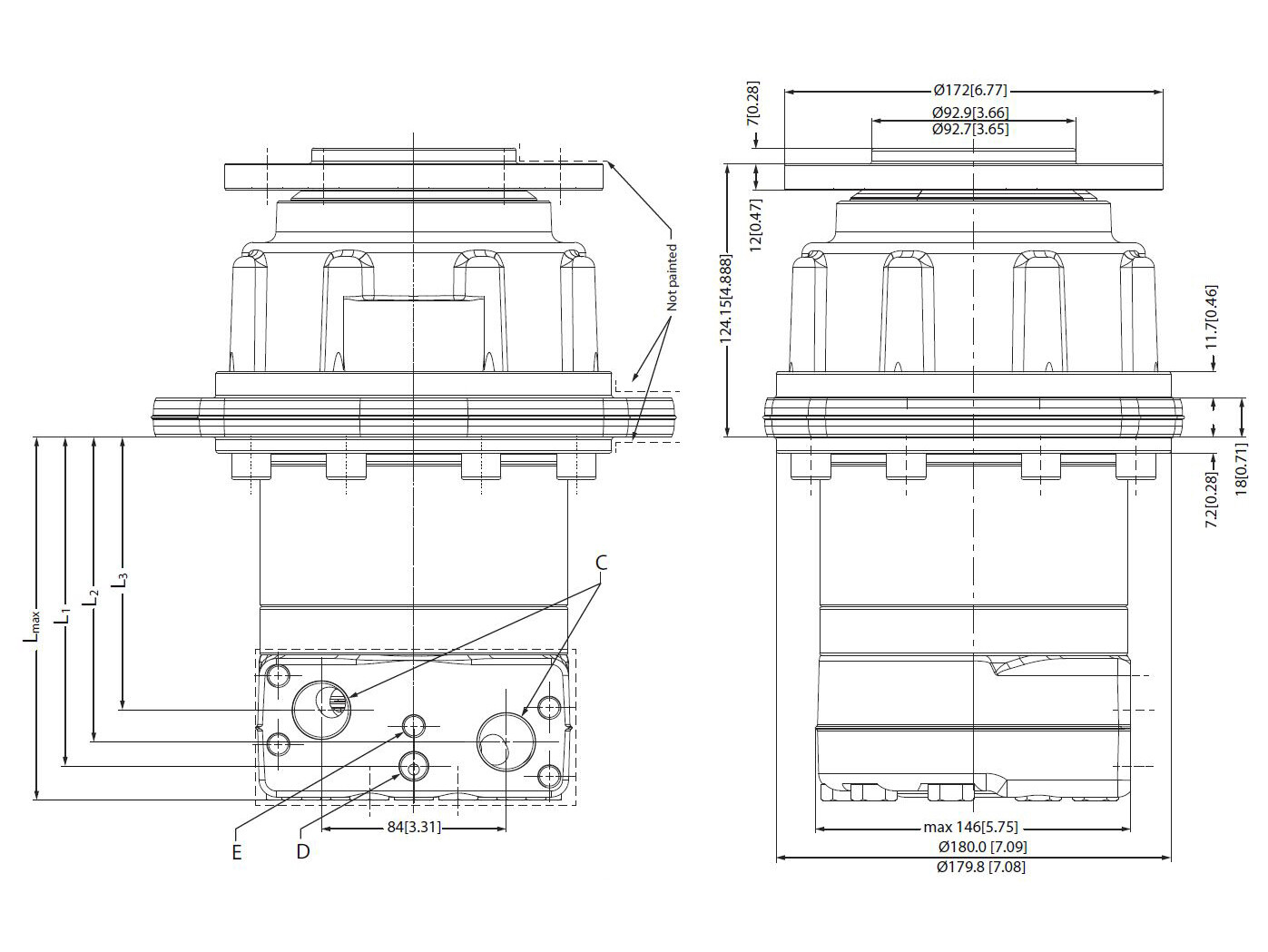

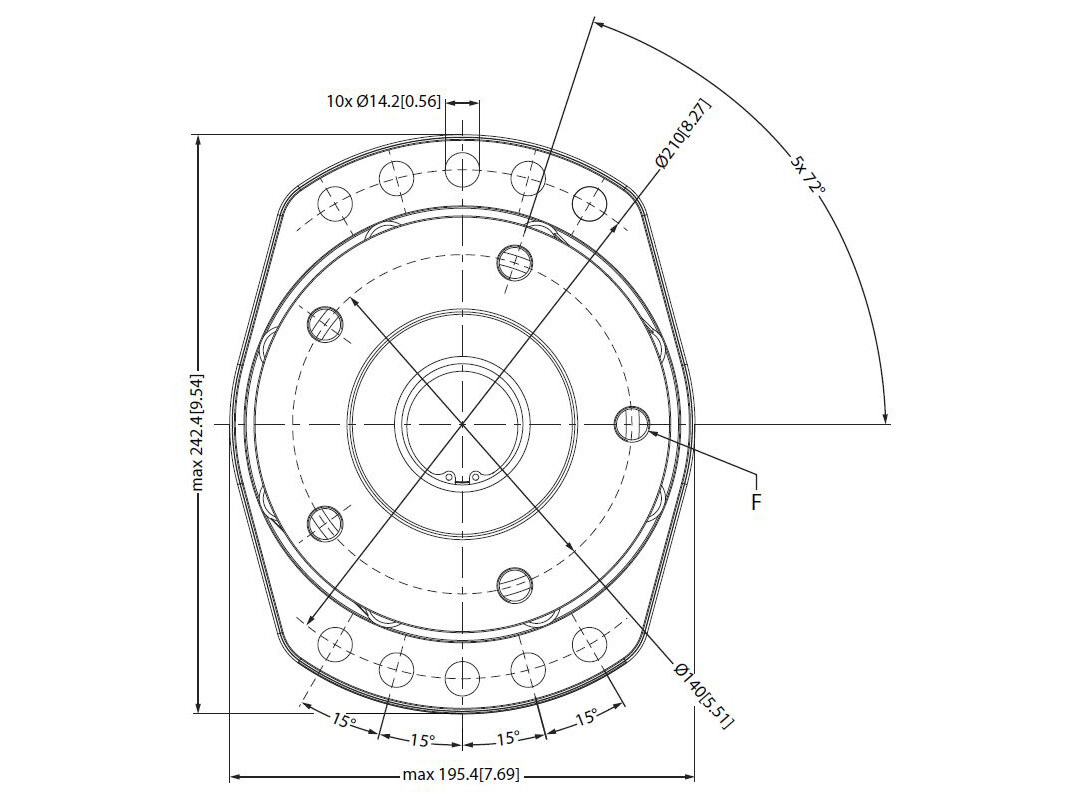

Measure sketch
