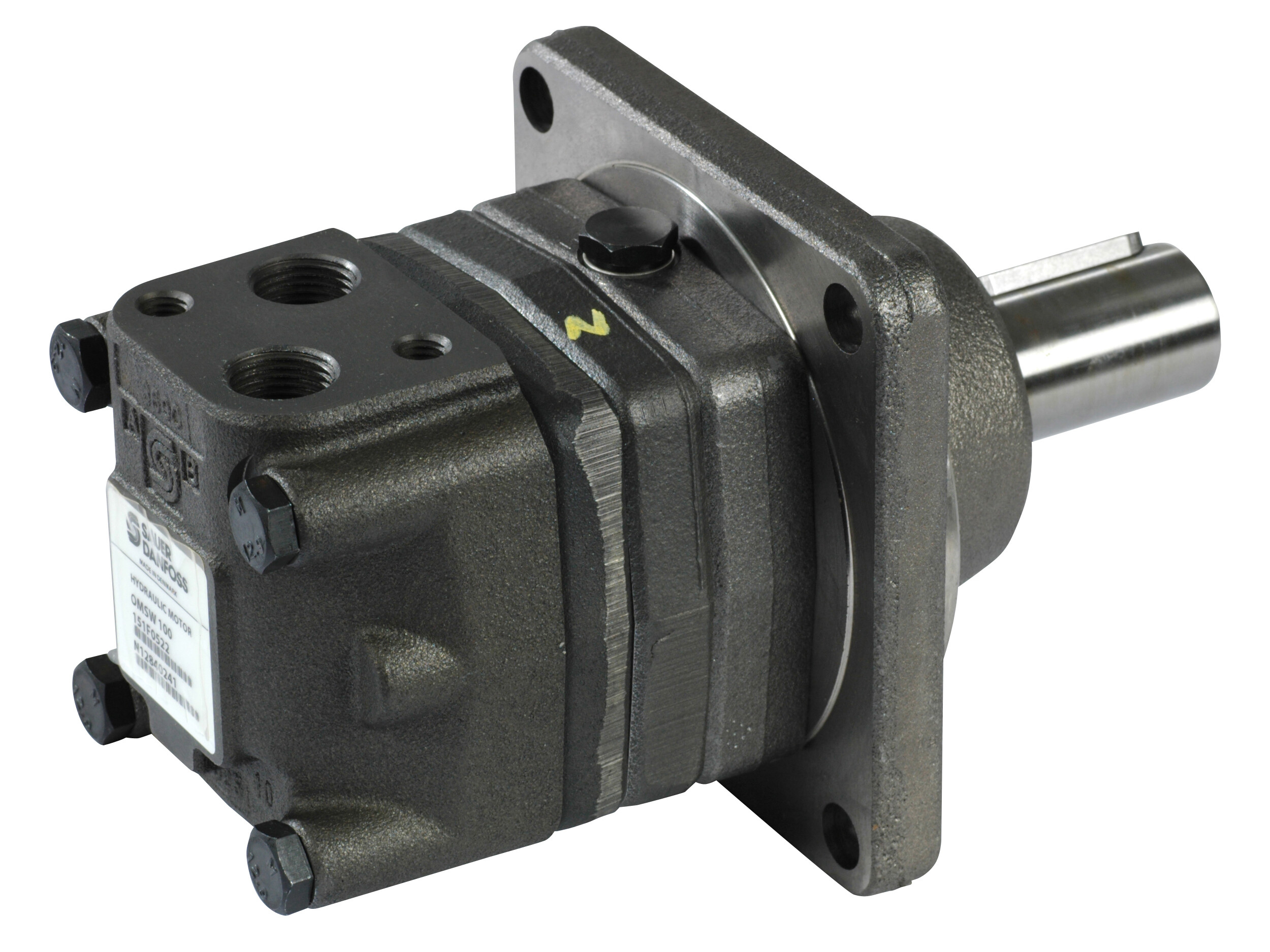

OMSW 315 HYDRAULIC MOTOR Series 3
OMS wheel-motor (OMSW). The offset mounting flange allows mounting of a wheel hub, so that radial energy can be absorbed between the tapered roller bearings. A wheel motor is a very compact motor.
Partnumber:
151F0527
Package size:
0 pcs
Min. order quantity is:
1 pcs
Aksel diameter
32 mm
Aksel notgang
10,0 mm
Akseltype
Cylindrical
Antal montage huller
4
Arbejdsporte
G 1/2 BSP
Boltcirkel
160 mm
C
G 1/4 BSP
D
M10
Drænport
G 1/4 BSP
E
G 1/2 BSP
Fortrængning
314.9 cm3
Intermittent Effekt Maks.
17
Intermittent Moment Maks.
1000 Nm
Intermittent Rotationshastighed Maks.
285
Kontinuerlig effekt maks.
13.5 kW

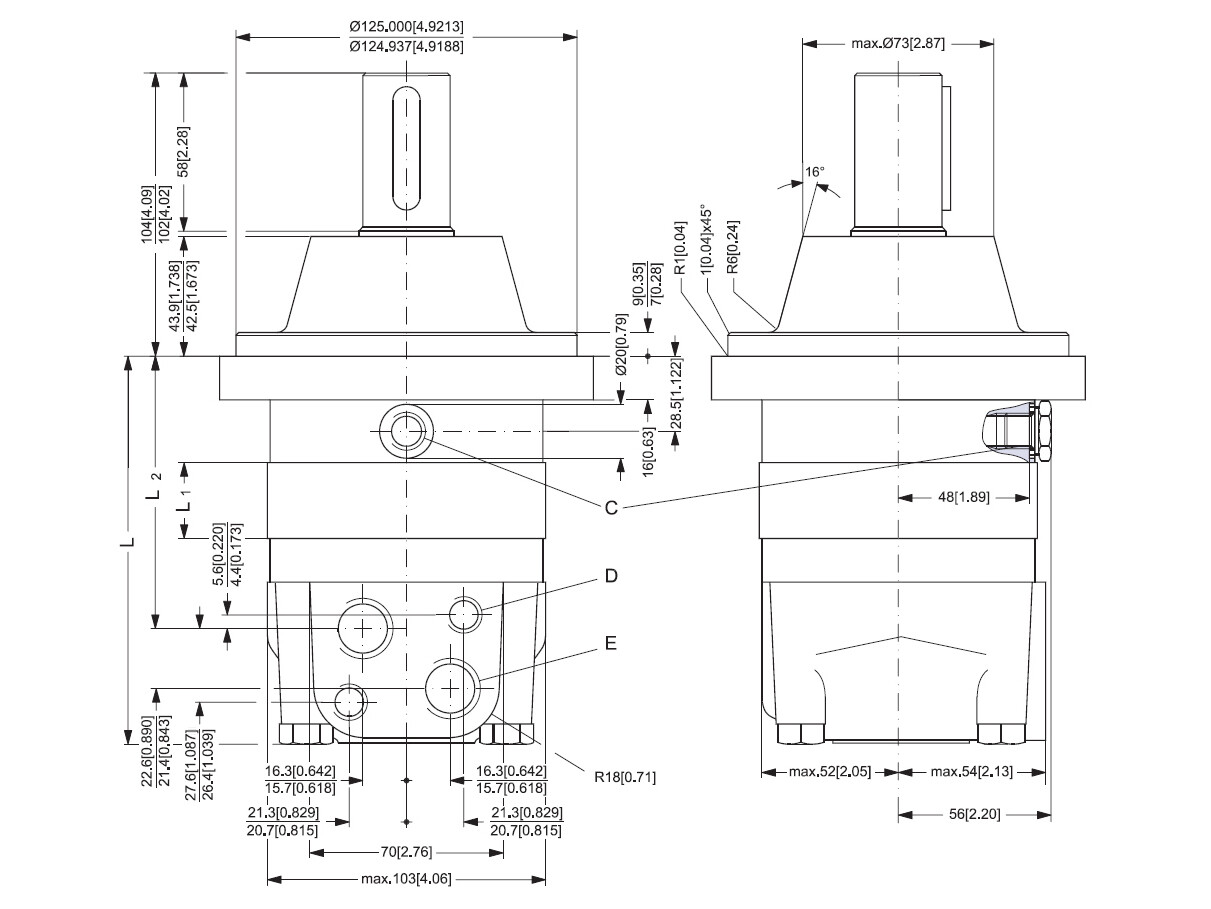

L
172 mm
L1
54,8 mm
L2
128 mm
Moment kontinuerlig maks.
825 Nm
Monteringsflange
Wheel 125
Mærke navn
White
Olieviskositet anbefalet
20 - 75 cSt
Portplacering
Side
Reces
125,0 mm
Rotationshastighed kontinuerligt maks.
240 rpm
Tryk intermitterende maks.
295 bar
Tryk kontinuerligt maks.
230 bar
Tryk spids maks.
300 bar
Trykfald kontinuerlig maks.
200 bar
Package size
0 pcs
Barcode
5704295495835
Gross weight
13,60 Kg
Net weight
13,60 Kg
Country of origin
Intrastat code
84122981
OMS wheel-motor (OMSW). The offset mounting flange allows mounting of a wheel hub, so that radial energy can be absorbed between the tapered roller bearings. A wheel motor is a very compact motor.
