SD5/4-P(JG3-120)/28ES3/28ES3/ 28ES3/28ES3/AE-24VDC

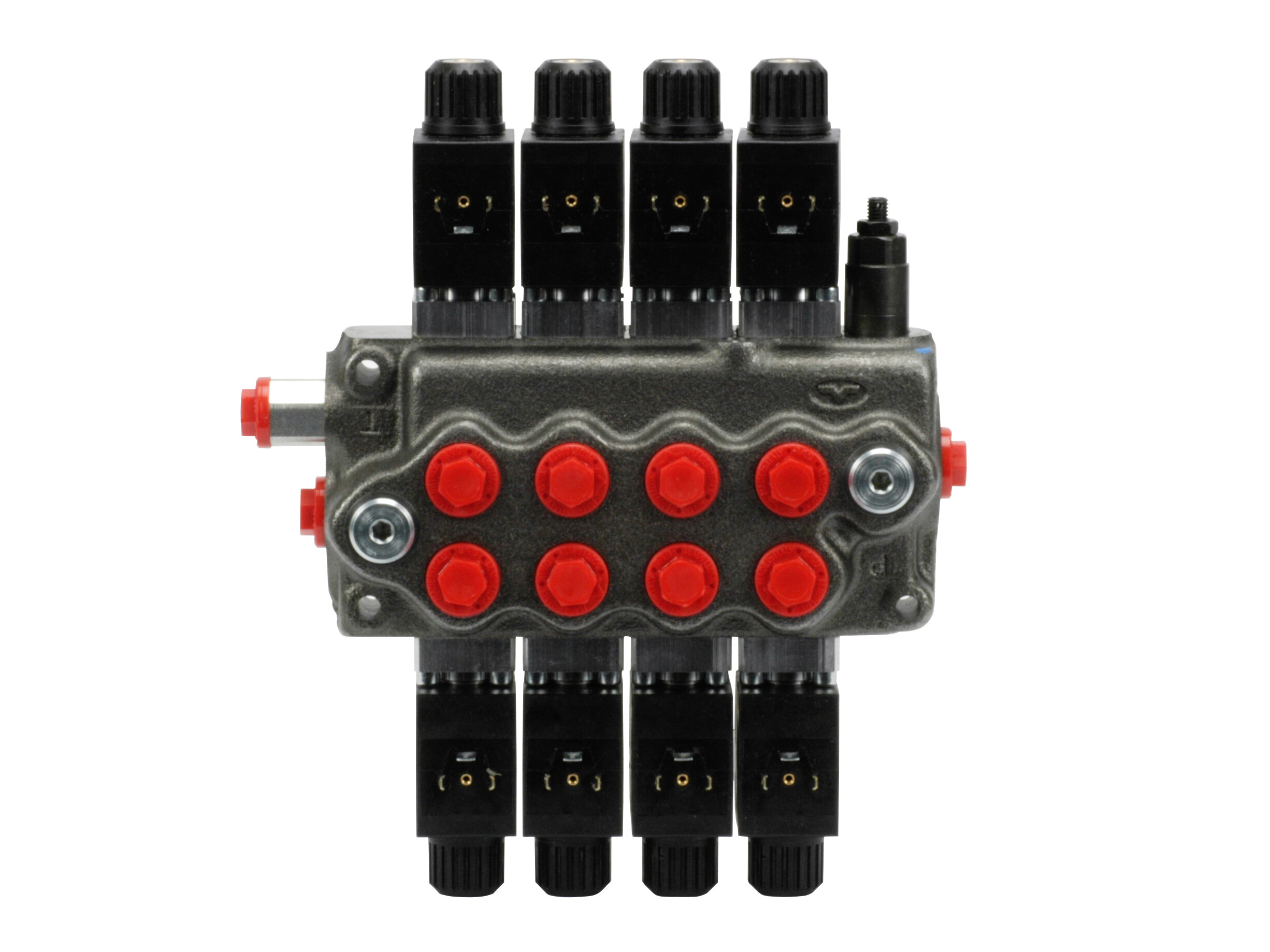

4-section SD5 monoblock valve with built-in pressure relief valve and 4 spools in parallel. Solenoid (24 Vdc) activated.

Spool function: 4 x double acting with port A and B to T in neutral position. Spring centered.

Solenoid activation: On/Off.

Open center P to T in neutral position.

Partnumber:
102400508

Package size:
0 pcs

Min. order quantity is:
1 pcs
Solenoid D12 24VDC for SD5 8ES1-8ES2-8ES3 - ISO4400
Varenummer: 4SOL412024
KIT8ES3SD5, Ankarrör SD5
Varenummer: 5CAN08025
Brand Name
Walvoil

Contamination level max.
-/19/16 - ISO 4406

Current type
DC

Flowrate nominal LMin
45 lpm

Lever
Exclusive

Material
Cast iron

Model code
SD5/4-P(JG3-120)/28ES3/28ES3/28ES3/28ES3/AE-24VDC

Number of sections
4

Oil viscocity recommended
12 - 400 cSt

Port P
G 3/8 BSP

Port T
G 3/8 BSP

Pressure T max.
25 bar

Pressure carry-over
Yes

Pressure max.
315 bar

Pressure relief valve
Yes

Pressure setting max.
200 bar

Pressure setting min.
50 bar

Voltage
24 V

Working ports
G 3/8 BSP
Pakke str.
0 pcs

Stregkode
5704334159025

Brutto vægt
8,35 Kg

Netto vægt
8,35 Kg

Oprindelsesland
ITA

Intrastat varekode
84812010

4-section SD5 monoblock valve with built-in pressure relief valve and 4 spools in parallel. Solenoid (24 Vdc) activated.

Spool function: 4 x double acting with port A and B to T in neutral position. Spring centered.

Solenoid activation: On/Off.

Open center P to T in neutral position.
