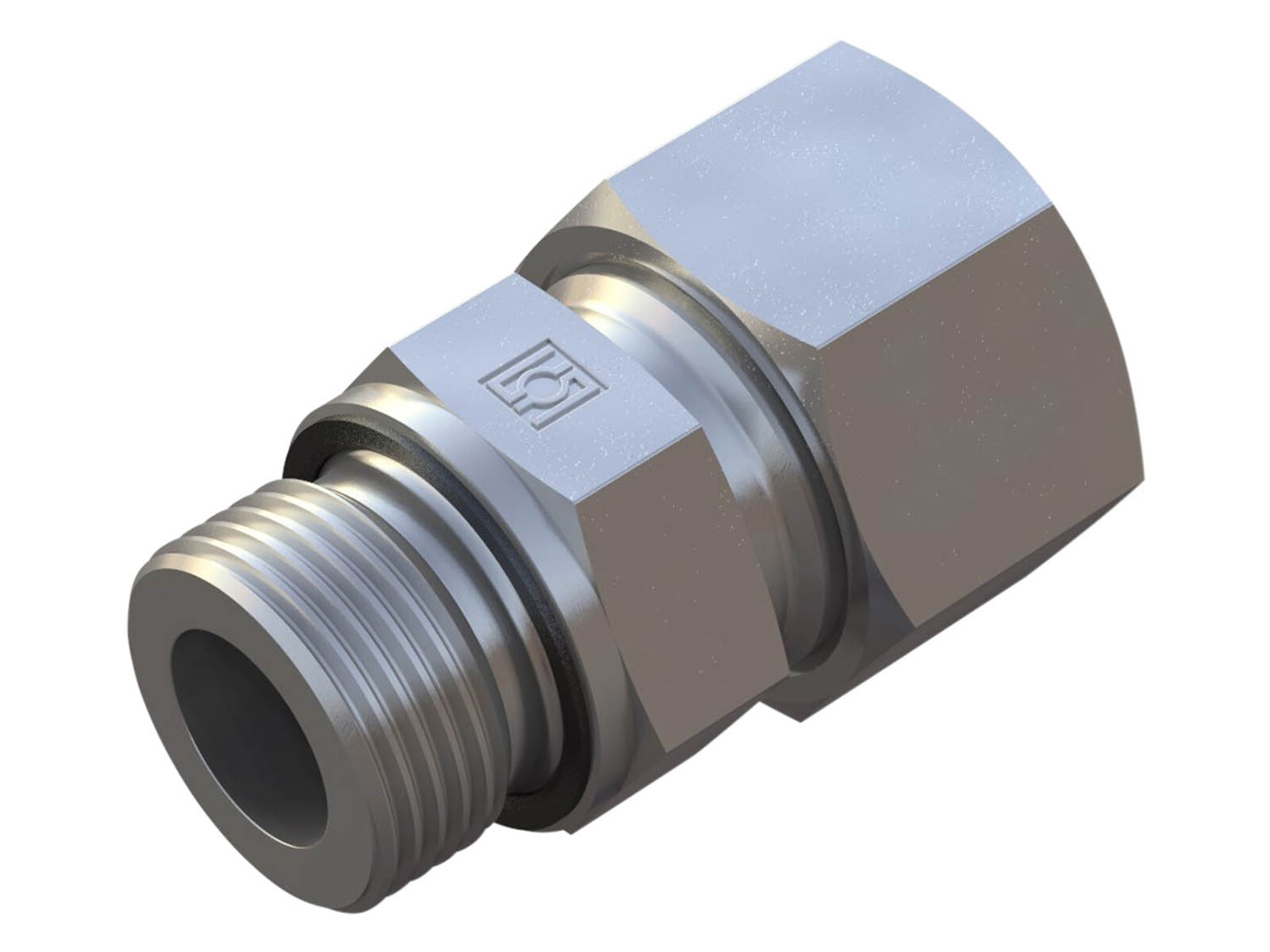

Forskruning lige 0° - L-serie - DIN udv. x BSP udv. 60° pakflade

Forskruning lige 0° - L-serie - DIN udv. x BSP udv. 60° pakflade

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread outer Pressure max.
A06RLAX A06RLAX - Indskruning - ø6L x 1/8" BSP 60° 6 mm 250 bar
FXGE06LR18DF FXGE06LR18DF - Indskruning - ø6L x 1/8" BSP 60° 6 mm G 1/8 BSP 250 bar
FXGE08LR14DF FXGE08LR14DF - Indskruning - ø8L x 1/4" BSP 60° 8 mm G 1/4 BSP 250 bar
FXGE08LR38DF FXGE08LR38DF - Indskruning - ø8L x 3/8" BSP 60° 8 mm G 3/8 BSP 250 bar
FXGE10LR12DF FXGE10LR12DF - Indskruning - ø10L x 1/2" BSP 60° 10 mm G 1/2 BSP 160 bar
FXGE10LR14DF FXGE10LR14DF - Indskruning - ø10L x 1/4" BSP 60° 10 mm G 1/4 BSP 250 bar
FXGE10LR38DF FXGE10LR38DF - Indskruning - ø10L x 3/8" BSP 60° 10 mm G 3/8 BSP 315 bar
FXGE12LR12DF FXGE12LR12DF - Indskruning - ø12L x 1/2" BSP 60° 12 mm G 1/2 BSP 160 bar
FXGE12LR14DF FXGE12LR14DF - Indskruning - ø12L x 1/4" BSP 60° 12 mm G 1/4 BSP 250 bar
FXGE15LR12DF FXGE15LR12DF - Indskruning - ø15L x 1/2" BSP 60° 15 mm G 1/2 BSP 160 bar
FXGE15LR34DF FXGE15LR34DF - Indskruning - ø15L x 3/4" BSP 60° 15 mm G 3/4 BSP 160 bar
FXGE15LR38DF FXGE15LR38DF - Indskruning - ø15L x 3/8" BSP 60° 15 mm G 3/8 BSP 250 bar
FXGE18LR12DF FXGE18LR12DF - Indskruning - ø18L x 1/2" BSP 60° 18 mm G 1/2 BSP 160 bar
FXGE18LR38DF FXGE18LR38DF - Indskruning - ø18L x 3/8" BSP 60° 18 mm G 3/8 BSP 250 bar
FXGE35LR114DF FXGE35LR114DF - Indskruning ø35L x 1.1/4" BSP 60° 35 mm G 1.1/4 BSP 125 bar
FXGE42LR112DF FXGE42LR112DF - Indskruning - Ø42L x 1.1/2" BSP 60° 42 mm G 1.1/2 BSP 125 bar
FXGE42LR114DF FXGE42LR114DF - Indskruning - Ø42L x 1.1/4" BSP 60° 42 mm G 1.1/4 BSP 125 bar
