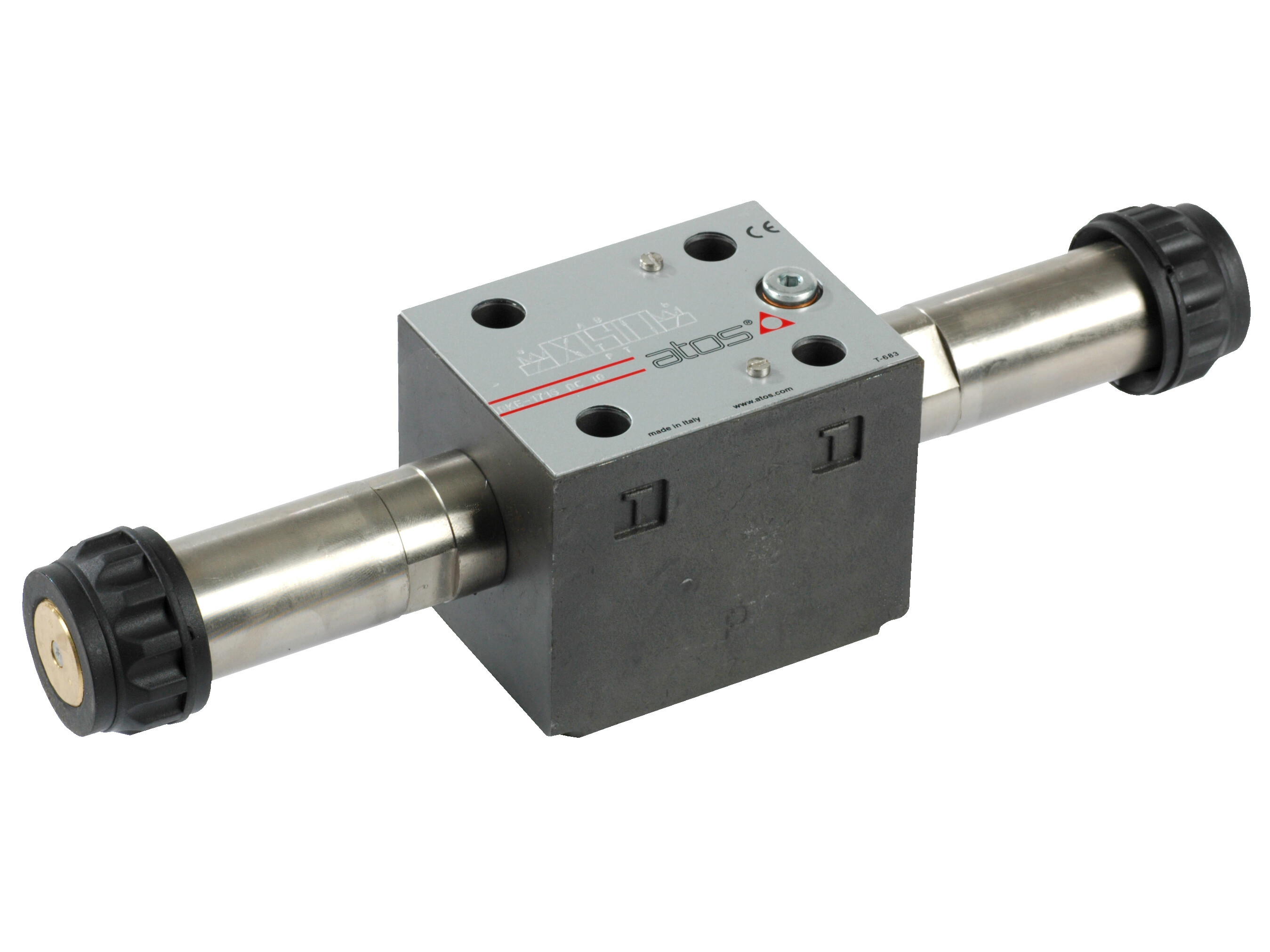

NG10 4/3 ventiler Atos DKE med magnetspole 24VDC

NG10 4/3 ventiler Atos DKE med magnetspole 24VDC

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Pressure T max. Voltage Current type Number of ways/positions
DKE1710-H DKE1710-H - DKE-1710-X24-DC Atos magnetventil Cetop5 210 bar 24 V DC 4/3
DKE1710/L-H DKE1710/L-H - DKE-1710/L-X24-DC Atos magnetventil Cetop5 210 bar 24 V DC 4/3
DKE1711-H DKE1711-H - DKE-1711-X24-DC Atos magnetventil Cetop5 210 bar 24 V DC 4/3
DKE1711/L-H DKE1711/L-H - DKE-1711/L-X24-DC Atos magnetventil Cetop5 210 bar 24 V DC 4/3
DKE1713-H DKE1713-H - DKE-1713-X24-DC Atos magnetventil Cetop5 210 bar 24 V DC 4/3
DKE1713/L-H DKE1713/L-H - DKE-1713/L-X24-DC Atos magnetventil Cetop5 210 bar 24 V DC 4/3
DKE1714-H DKE1714-H - DKE-1714-X24-DC Atos magnetventil Cetop5 210 bar 24 V DC 4/3
DKE1714/L-H DKE1714/L-H - DKE-1714/L-X24-DC Atos magnetventil Cetop5 210 bar 24 V DC 4/3
Activation
Magnetspole, Manuel nødbetjening
Brand Name
Atos
Contamination level max.
20/18/15 - ISO 4406
Current type
DC
Flow rate nominal LMin
150
NG ISO-size
NG10
Number of ways/positions
4/3
Oil viscocity recommended
15 - 100
Plug type
DIN EN 175301-803 Form A
Pressure T max.
210
Pressure max.
350
Standard ISO
ISO 4401
Temperature max.
+80
Temperature min.
-20
Torque tightening
15
Voltage
24
