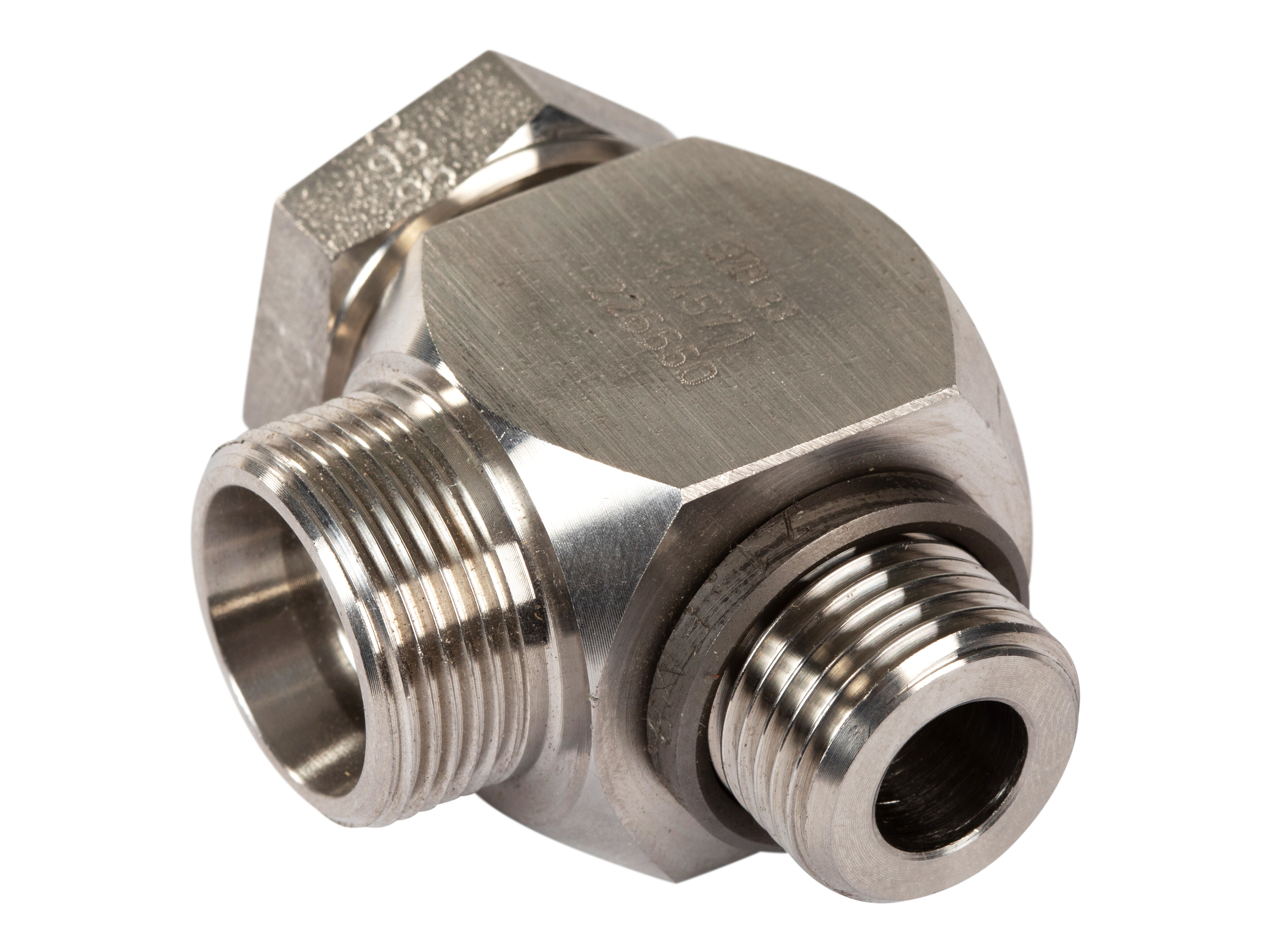

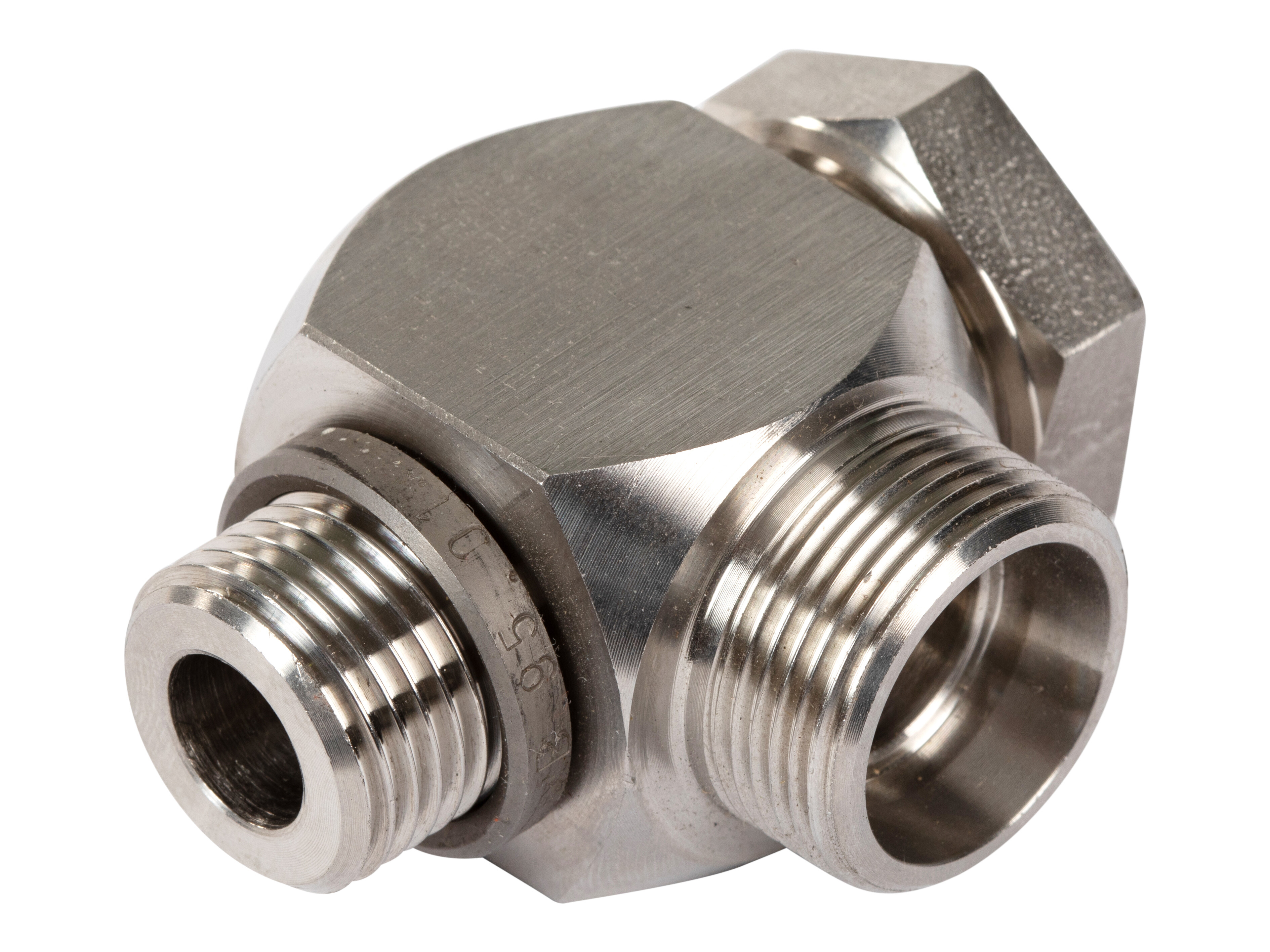

SBE20RSX/71 - Banjo - ø20S x 3/4" BSP - AISI 316Ti
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
SBE20RSX/71
Package size:
0 pcs
Min. order quantity is:
1 pcs

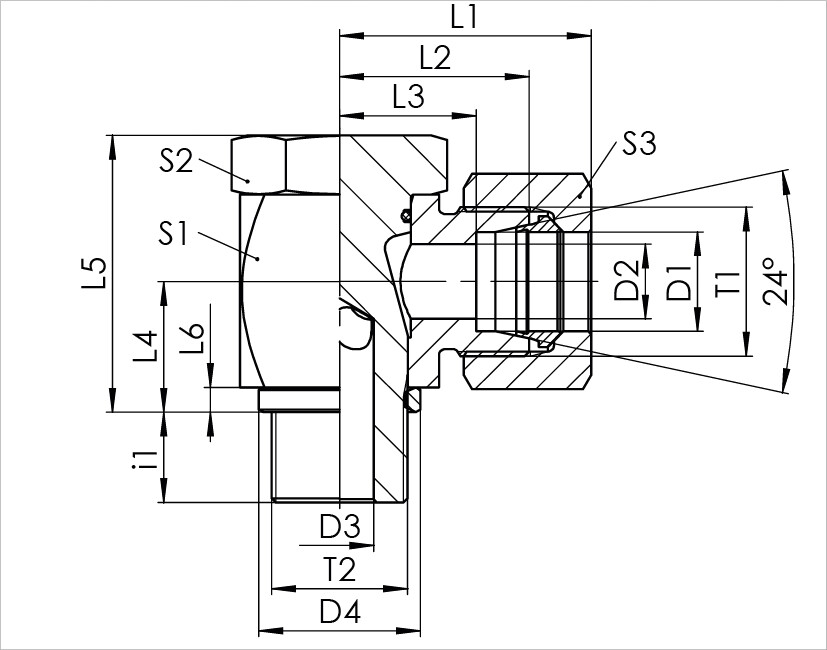

Diameter rør
20 mm
Dimension D1
20 mm
Dimension D2
16 mm
Dimension D3
15 mm
Dimension D4
32 mm
Dimension L1
49 mm
Dimension L2
37 mm
Dimension L3
26.5 mm
Dimension L4
24.5 mm
Dimension L6
4 mm
Dimension S1
41 mm
Dimension S2
36 mm
Dimension S3
36 mm
Dimension i
15.5 mm
Gevind T
M30x2
Gevind udvendig
G 3/4 BSP
Gevind udvendig metrisk
M27x2
Materiale
Syrefast Stål
Materialekvalitet
1.4571 / AISI316Ti
Model kode
XEWHV 20 SR 3/4
Mærke navn
Volz
Pakningsmateriale
FKM/FPM (Viton®)
REACH compliant
Ja
RoHs compliant
Ja
Serie
S
Sikkerhedsfaktor
2.5
Temperatur maks.
+200 °C
Temperatur min.
-25 °C
Thread T2
G 3/4 BSP
Tryk maks.
160 bar
Vinkel
90 °
Package size
0 pcs
Barcode
5704334306955
Gross weight
0,43 Kg
Net weight
0,43 Kg
Country of origin
DEU
Intrastat code
73072910
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
