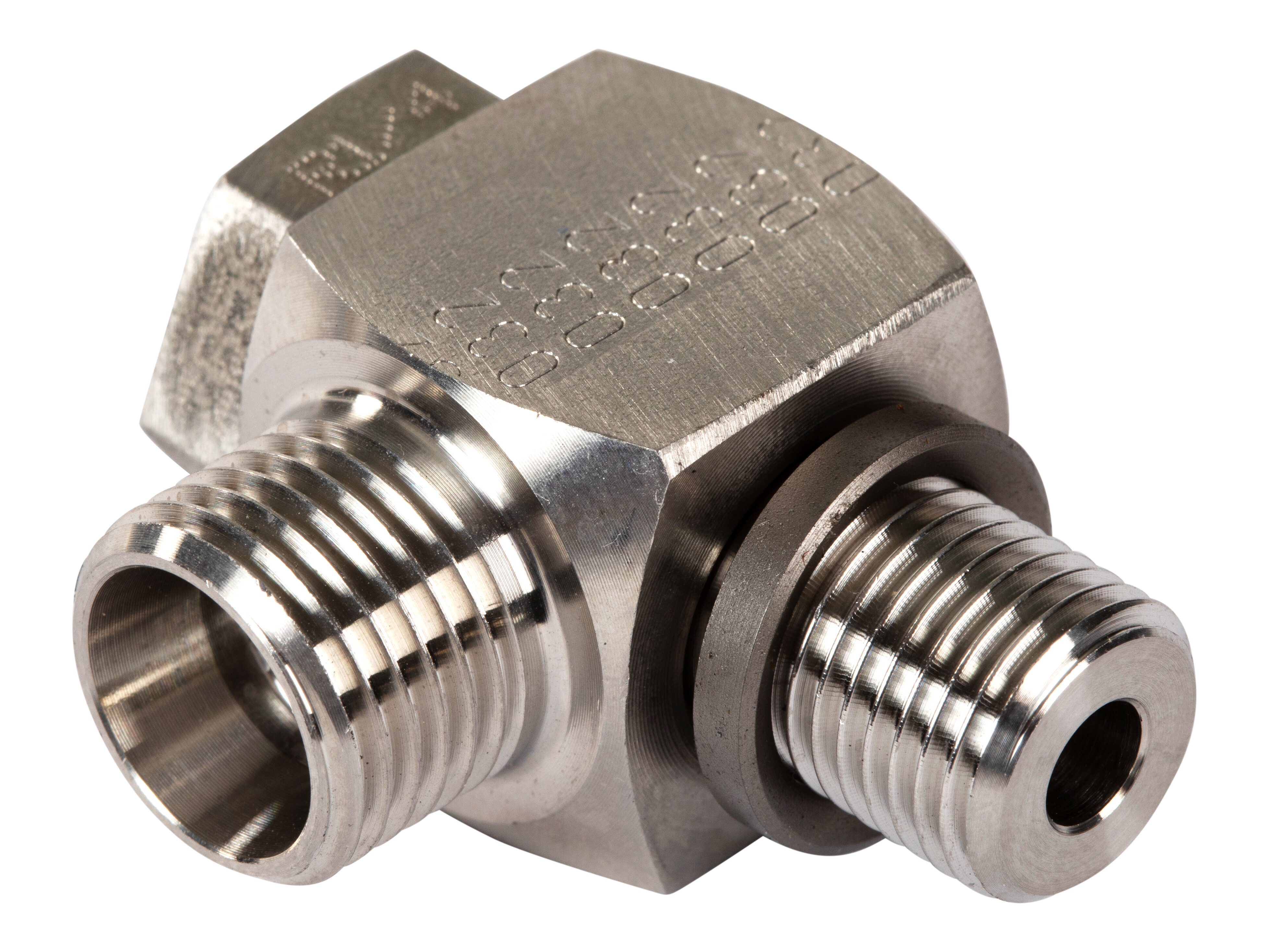

Banjo - ø12L x 3/8" BSP - AISI 316Ti
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Artikelnummer:
SBE12RLX/71
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Diameter rør
12 mm
Dimension D1
12 mm
Dimension D2
10 mm
Dimension D3
8 mm
Dimension D4
22 mm
Dimension L1
33 mm
Dimension L2
25 mm
Dimension L3
18 mm
Dimension L4
16.5 mm
Dimension L6
3 mm
Dimension S1
27 mm
Dimension S2
24 mm
Dimension S3
22 mm
Dimension i
12 mm
Gevind T
M18x1,5
Gevind udvendig
G 3/8 BSP
Gevind udvendig metrisk
M18x1,5
Materiale
Rustfrit stål
Materialekvalitet
1.4571 / AISI316Ti
Model kode
XEWHV 12 LR 3/8
Mærke navn
Volz
Pakningsmateriale
FKM/FPM (Viton®)
Serie
L
Sikkerhedsfaktor
2.5
Temperatur maks.
+200 °C
Temperatur min.
-25 °C
Thread T2
G 3/8 BSP
Tryk maks.
250 bar
Vinkel
90 °
Package size
0 pcs
Barcode
5704334298212
Gross weight
0,18 Kg
Net weight
0,18 Kg
Country of origin
DEU
Intrastat code
73072910
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
