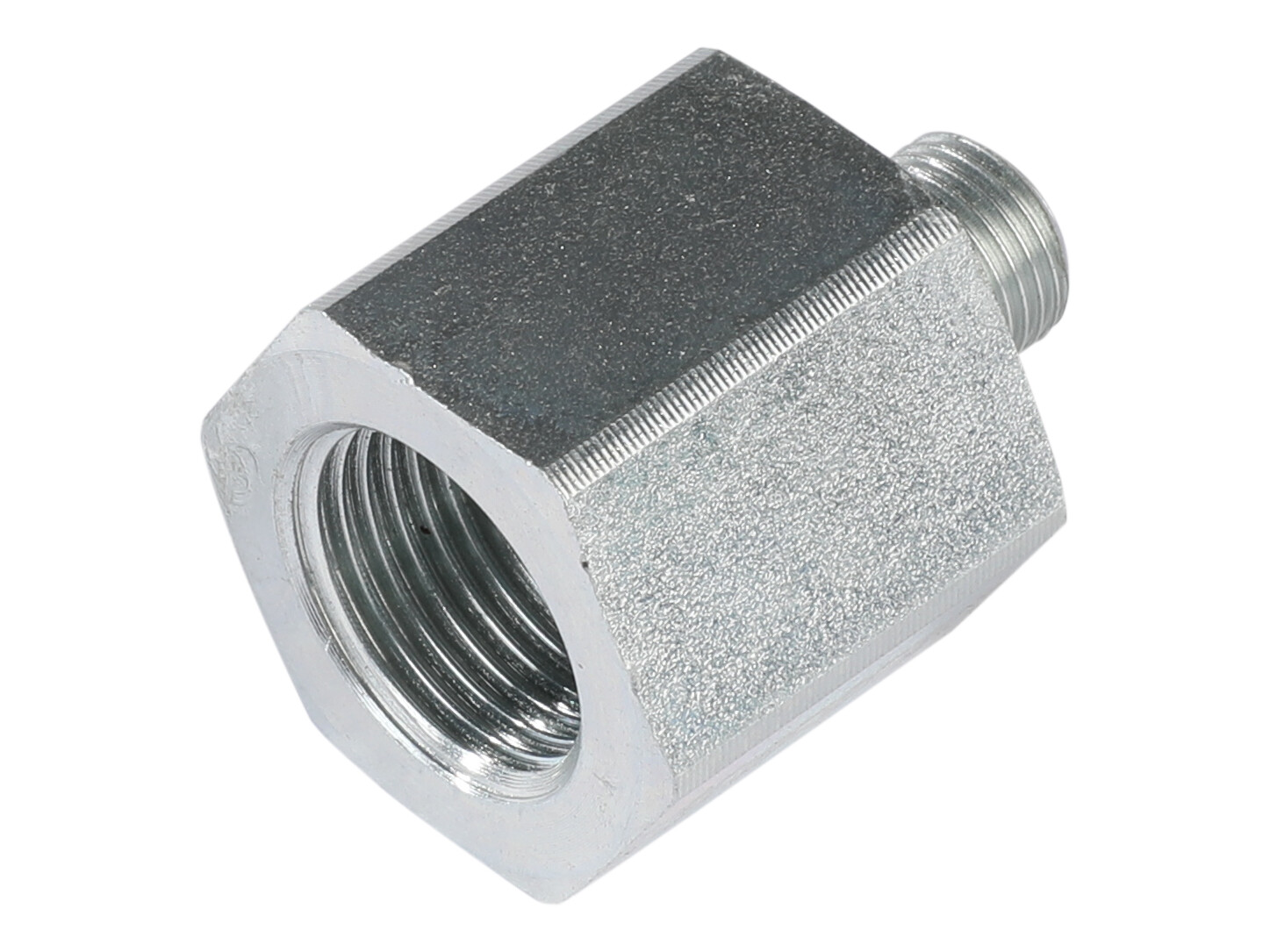

Reduction - 1/8" BSP x 3/8" BSP female

Reduction - 1/8" BSP x 3/8" BSP female

Partnumber:
RI1/8-3/8

Package size:
0 pcs

Min. order quantity is:
1 pcs
Reduction - 1/8" BSP x 3/8" BSP female - WD seal
Partnumber: RI1/8WD3/8
Angle
0 °

Brand Name
Stauff

Corrosion resistance
1200 hours salt spray DIN EN ISO 9227

Diameter pipe
4 mm

Hexagon
24 mm

Material
Steel

Model code
FI-RED-R1/8-R3/8-W3

Pressure max.
630 bar

Safety factor
2.5

Surface treatment
Zinc-Nickel plated

Temperature max.
+120 °C

Temperature min.
-40 °C

Thread inner
G 3/8 BSP

Thread outer
G 1/8 BSP

Total length
32 mm
Package size
0 pcs

Barcode
5704295277066

Gross weight
0,06 Kg

Net weight
0,06 Kg

Country of origin
DEU

Intrastat code
73071110

Reduction - 1/8" BSP x 3/8" BSP female

Note: Opening 3D files requires a program that supports the file format
