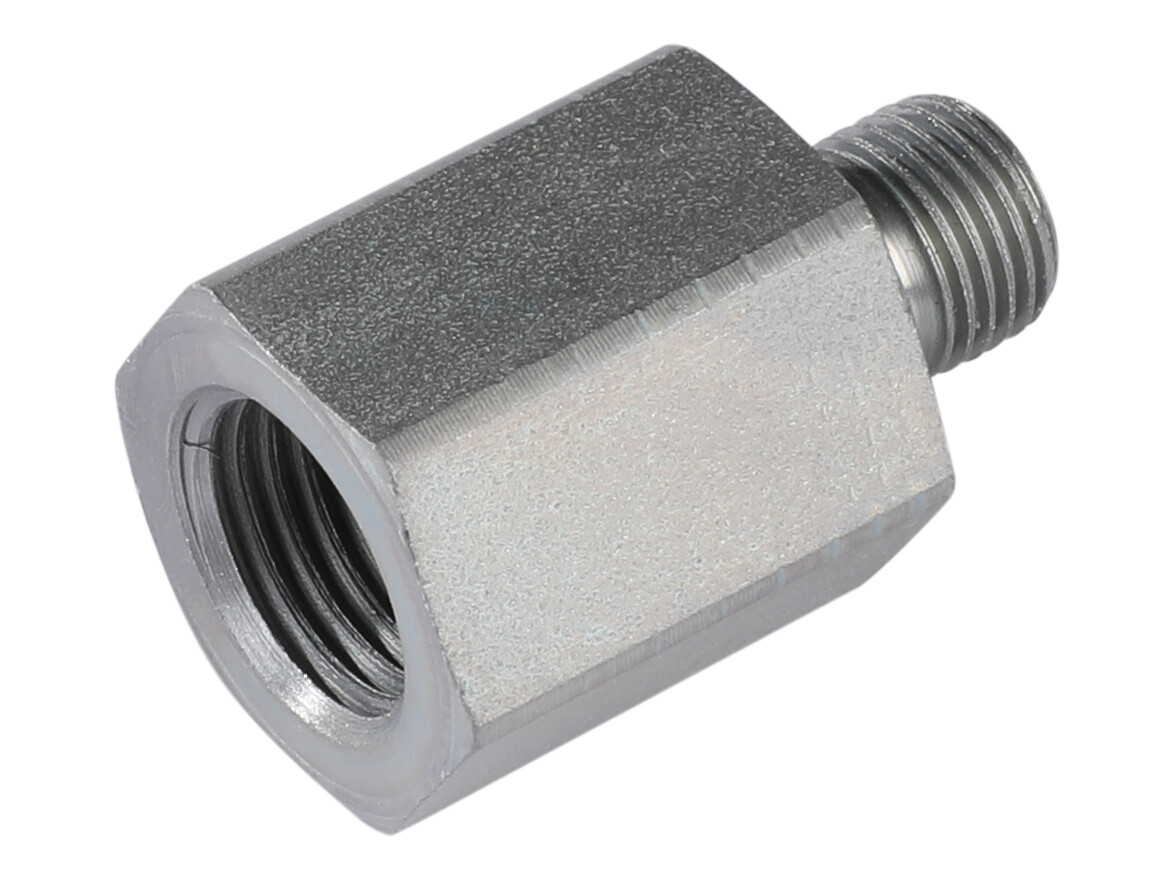

Reduktion - 1/8" BSP x 1/4" BSP indv

Reduktion - 1/8" BSP x 1/4" BSP indv

Partnumber:
RI1/8-1/4

Package size:
0 pcs

Min. order quantity is:
1 pcs
Angle
0 °

Brand Name
Stauff

Corrosion resistance
1200 hours salt spray DIN EN ISO 9227

Diameter pipe
4 mm

Hexagon
19 mm

Material
Stål

Model code
FI-RED-R1/8-R1/4-W3

Pressure max.
630 bar

Safety factor
2.5

Surface treatment
Zink-Nikkel belagt

Temperature max.
+120 °C

Temperature min.
-40 °C

Thread inner
G 1/4 BSP

Thread outer
G 1/8 BSP

Total length
31 mm
Package size
0 pcs

Barcode
5704295277042

Gross weight
0,04 Kg

Net weight
0,04 Kg

Country of origin
DEU

Intrastat code
73071110

Reduktion - 1/8" BSP x 1/4" BSP indv
