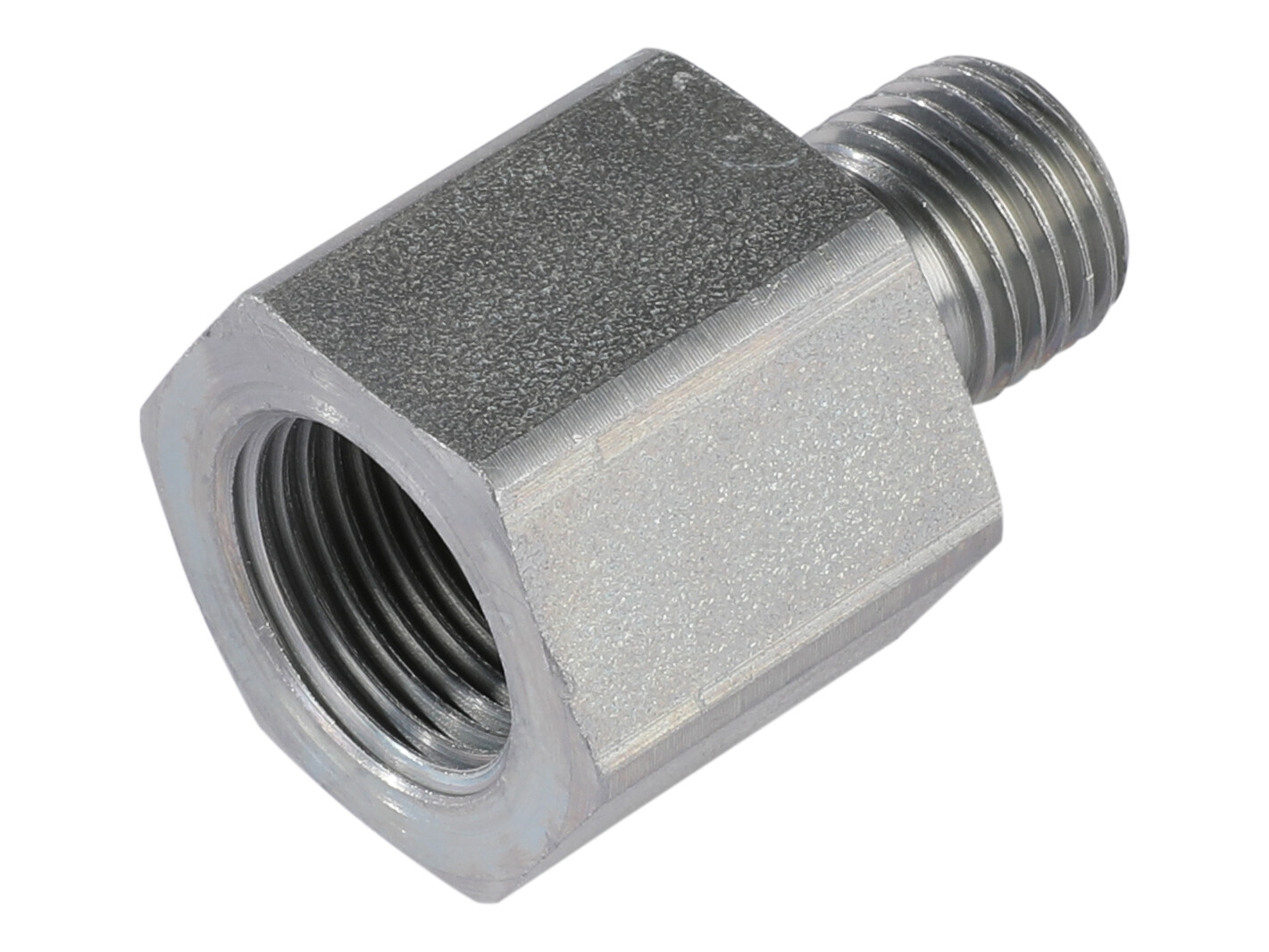

Reduktion - 1/4" BSP x 3/8" BSP indv

Varenummer:

RI1/4-3/8

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Alternativer (1)

Reduktion - 1/4" BSP x 3/8" BSP indv - WD pakning

Partnumber: RI1/4WD3/8

Specifications
Dimensions and shipping

Diameter rør

5 mm

Gevind indvendig

G 3/8 BSP

Gevind udvendig

G 1/4 BSP

Korrosions resistens

1200 hours salt spray DIN EN ISO 9227

Materiale

Stål

Model kode

FI-RED-R1/4-R3/8-W3

Mærke navn

Stauff

Overfladebehandling

Zink-Nikkel belagt

Sekskant

24 mm

Sikkerhedsfaktor

2.5

Temperatur maks.

+120 °C

Temperatur min.

-40 °C

Totallængde

36 mm

Tryk maks.

630 bar

Vinkel

0 °

Package size

0 pcs

Barcode

5704295276984

Gross weight

0,07 Kg

Net weight

0,07 Kg

Country of origin

DEU

Intrastat code

73071110

Product information

Reduktion - 1/4" BSP x 3/8" BSP indv

Note: Opening 3D files requires a program that supports the file format
