RD20SX/71 - Kontraventil - ø20S - 1 bar - AISI 316Ti
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
RD20SX/71
Package size:
0 pcs
Min. order quantity is:
1 pcs

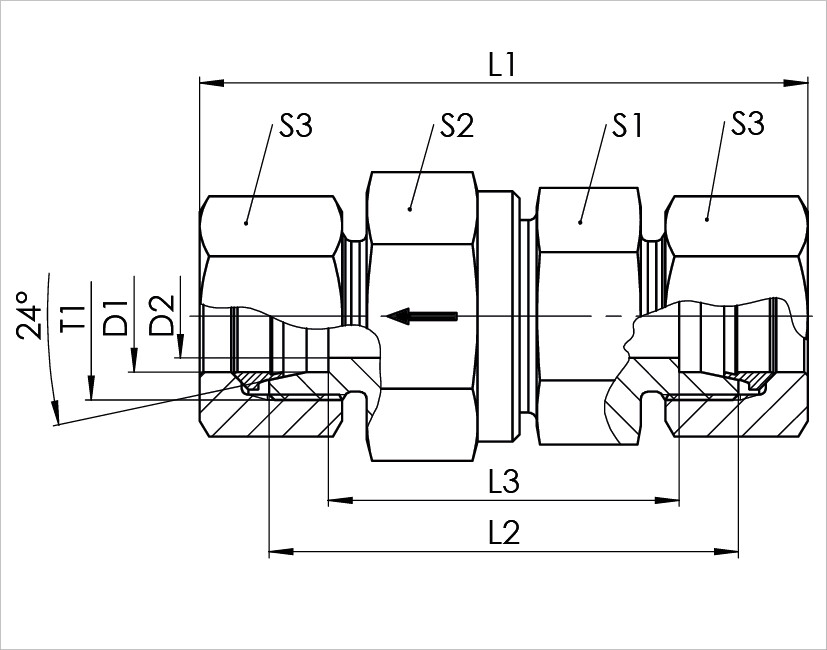

Diameter rör
20 mm
Dimension D1
20 mm
Dimension D2
16 mm
Dimension L1
99.5 mm
Dimension L2
75.5 mm
Dimension L3
54.5 mm
Dimension S1
41 mm
Dimension S2
46 mm
Dimension S3
36 mm
Gänga T1
M30x2
Materialkvalitet
1.4571 / AISI316Ti
Modell kod
XRSV 20 S 1,0
Märke namn
Volz
Serie
S
Säkerhetsfaktor
2.5
Temperatur max.
+90 °C
Temperatur min.
-20 °C
Tillverkningsmaterial
Syrefast Stål
Tryck max.
250 bar
Tryck ôppning
1 bar
Package size
0 pcs
Barcode
5704334282495
Gross weight
0,48 Kg
Net weight
0,48 Kg
Country of origin
DEU
Intrastat code
73072910
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
