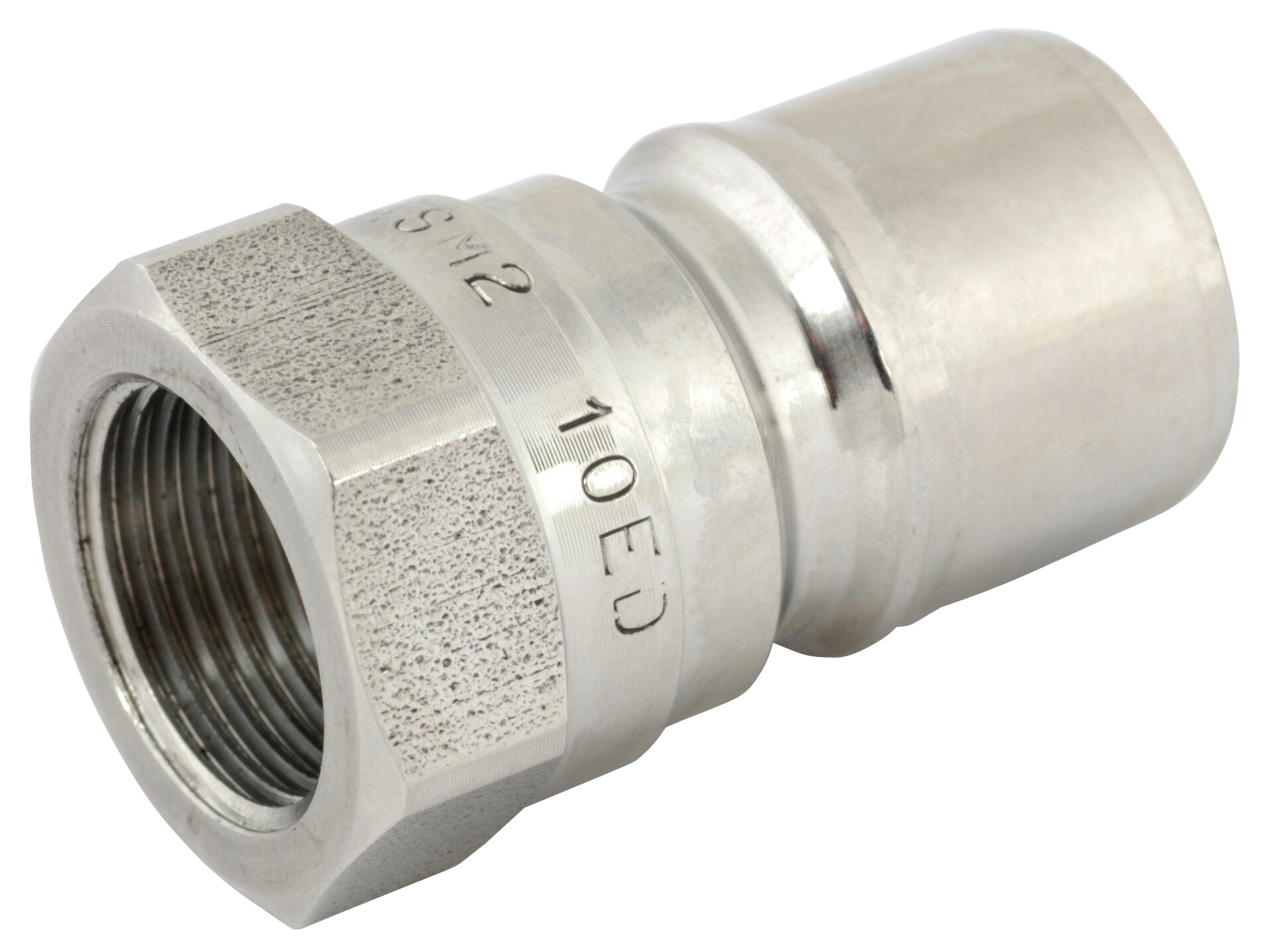

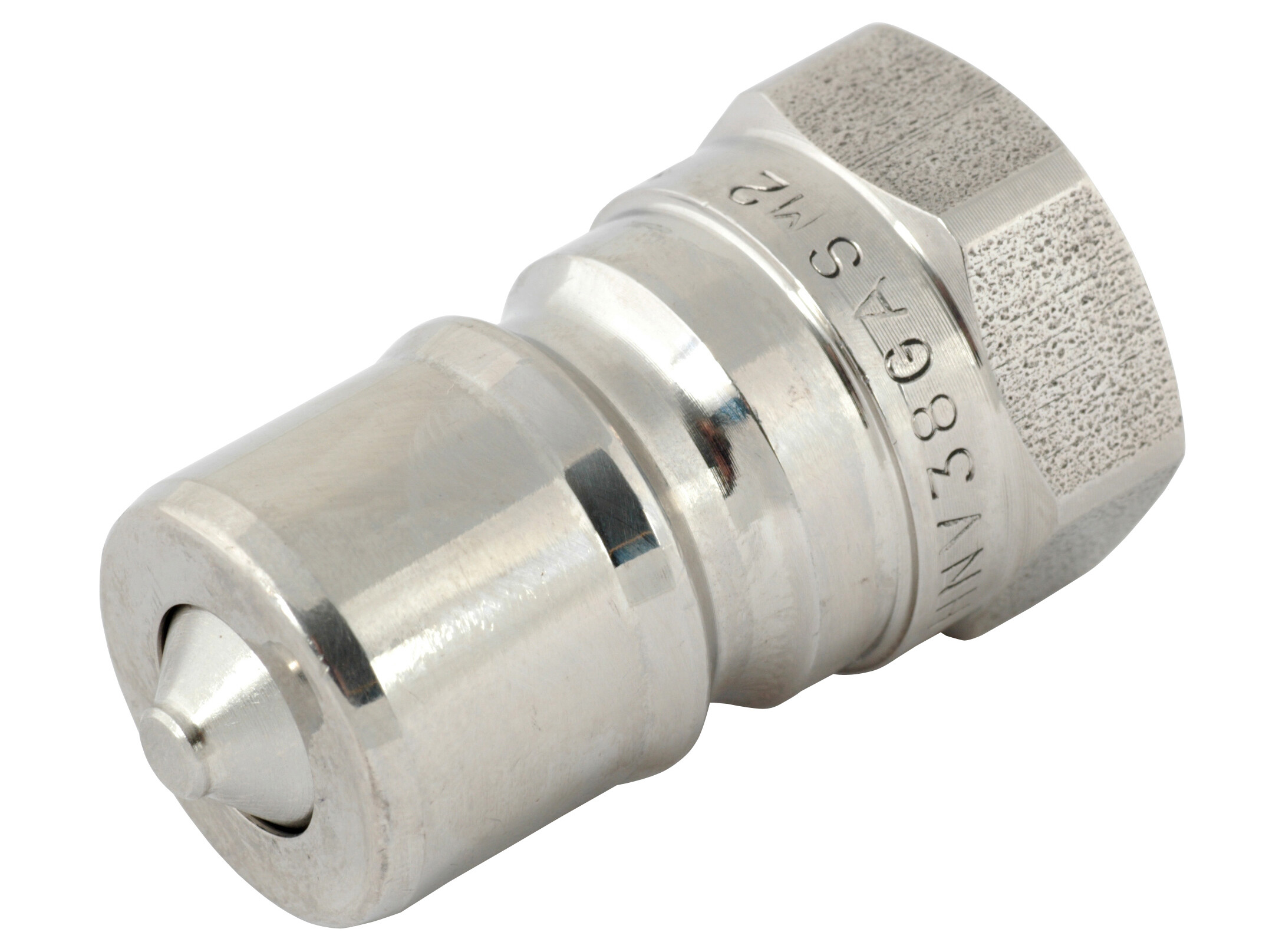

Lynkobling han HNV (ISO-B) - DN10 - 3/8"BSP - AISI316
Faster lynkoblingshalvpart.
Samling/adskillelse: Træk yderringen tilbage.
Lukkesystem: Kegle.
Samling/adskillelse: Skal ske trykløst (uden tryk på halvparterne).
Partnumber:
HNV38GASM2
Package size:
0 stk
Min. order quantity is:
1 stk
Brand Name
Faster
C
39 mm
DN
10 mm
E
G 3/8 BSP
Flowrate nominal LMin
27 lpm
H
19 mm
Hexagon
22 mm
ISO size
10
Material
Rustfrit stål
Model code
HNV 38 GAS M 2V
Pressure burst min.
1100 bar
Pressure max.
270 bar
Pressurized connection
Ikke tilladt
Sealing material
FKM/FPM (Viton®)
Size
10 mm
Size
3/8 "
Size nominal
06
Standard ISO
ISO 7241-1-B
Surface treatment
Ubehandlet
Temperature max.
+200 °C
Temperature min.
-20 °C
Thread inner
G 3/8 BSP
Valve type
Poppetventil
Working Pressure
270 bar
Working Pressure
27 MPa
Y
22 mm
Package size
0 stk
Barcode
5704334228325
Gross weight
0,06 Kg
Net weight
0,06 Kg
Country of origin
ITA
Intrastat code
84812010
Faster lynkoblingshalvpart.
Samling/adskillelse: Træk yderringen tilbage.
Lukkesystem: Kegle.
Samling/adskillelse: Skal ske trykløst (uden tryk på halvparterne).
