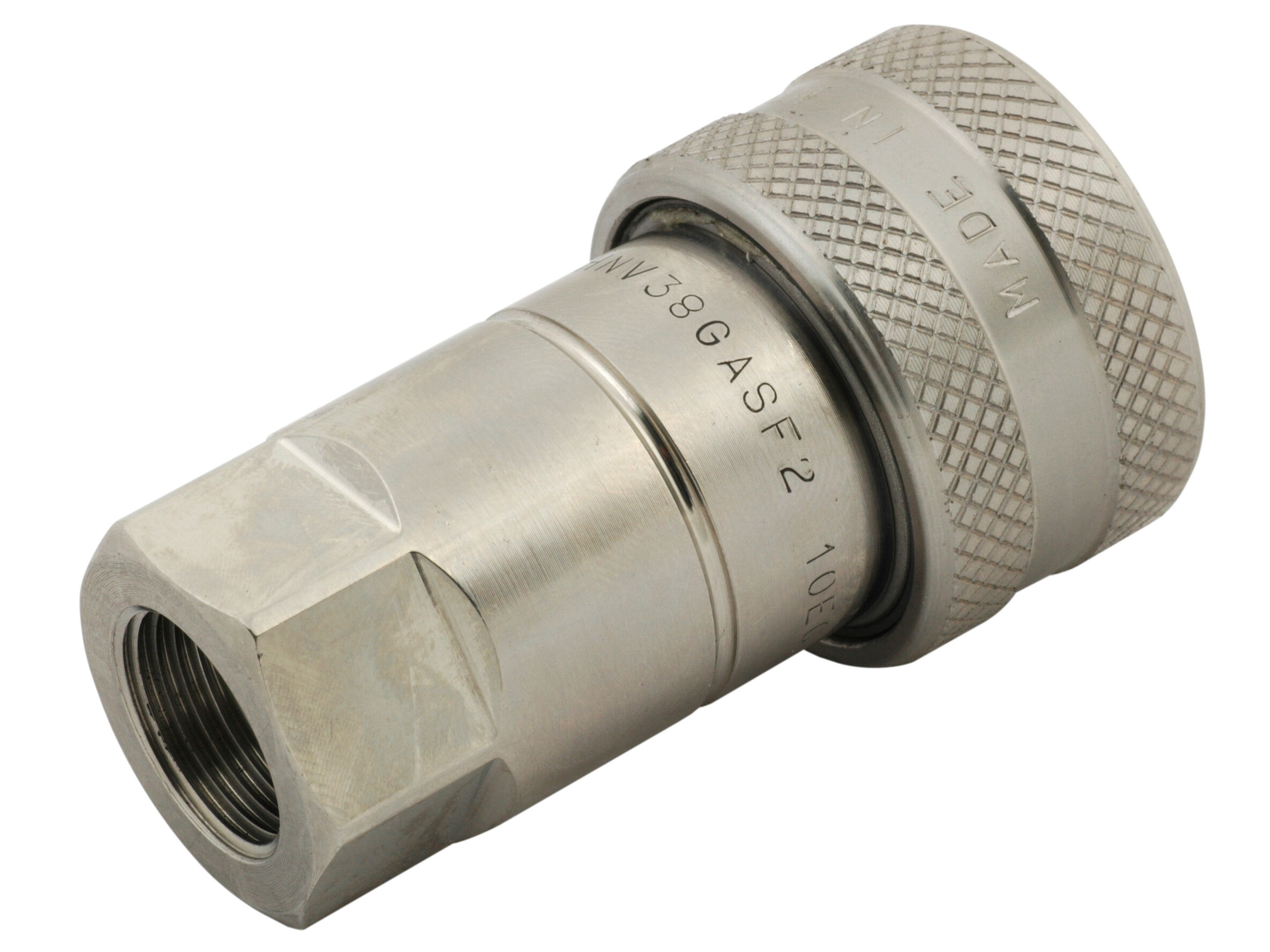

Lynkobling hun HNV (ISO-B) - DN10 - 3/8"BSP - AISI316

Lynkobling hun HNV (ISO-B) - DN10 - 3/8"BSP - AISI316

Faster lynkoblingshalvpart.

Samling/adskillelse: Træk yderringen tilbage.

Lukkesystem: Kegle.

Samling/adskillelse: Skal ske trykløst (uden tryk på halvparterne).

Partnumber:

HNV38GASF2

Package size:

0 pcs

Min. order quantity is:

1 pcs

Accessories (1)
Spare parts (1)

Dammskydd HNV Hona, Röd

Partnumber: TMH38R

Pakn.sæt hun HNV38 FASTER (10) viton o-ring + back up ring

Partnumber: SKHNV38V

Specifications
Dimensions and shipping

10 mm

Dimension A

G 3/8 BSP

Dimension B

64 mm

Dimension D

35 mm

Dimension X

24 mm

Flow Nominel

27 lpm

Gevind indvendig

G 3/8 BSP

ISO størrelse

Materiale

Rustfrit stål

Model kode

HNV 38 GAS F 2V

Mærke navn

Faster

Pakningsmateriale

FKM/FPM (Viton®)

Standard ISO

ISO 7241-1-B

Størrelse

3/8 "

Temperatur maks.

+200 °C

Temperatur min.

-20 °C

Tryk maks.

270 bar

Package size

0 pcs

Barcode

5704334228332

Gross weight

0,22 Kg

Net weight

0,22 Kg

Country of origin

ITA

Intrastat code

84812010

Product information
Measure sketch

Faster lynkoblingshalvpart.

Samling/adskillelse: Træk yderringen tilbage.

Lukkesystem: Kegle.

Samling/adskillelse: Skal ske trykløst (uden tryk på halvparterne).

Note: Opening 3D files requires a program that supports the file format

Produkt datablad Produktkatalog
