1" Indstik - 1.11/16"-12 ORFS oml. - 45°

Hydraulikslangeindsats til montage med separat ferrule. Den 45° vinklede ORFS hun-svirvelende giver en tilslutningsgrænseflade mod rør/port, hvor der er behov for vinkling uden at tvinge slangeføringen.

Valg foretages typisk ud fra slangestørrelse, ORFS hun-gevindstørrelse og den nødvendige 45° vinkel ved tilslutningspunktet.

Typiske anvendelser

Hydraulikslangesamlinger hvor der kræves en ORFS hun-tilslutning i 45° vinkel
Hydraulikledninger opbygget med slangekobling til separat ferrule

Partnumber:

GS1620FF45

Package size:

0 stk

Min. order quantity is:

1 stk

Specifications
Dimensions and shipping

164 mm

107,6 mm

25 mm

Gevind

1.11/16-12 ORFS

50 mm

41 mm

Korrosions resistens

500 hours salt spray ASTM B-117

Materiale

Stål

Model kode

16GS-20FFORX45S

Mærke navn

Gates

Overfladebehandling

TuffCoat™

REACH compliant

RoHs compliant

Slangekoblingstype

Til løs kappe

Slangestørrelse

1 "

Temperatur maks.

+100 °C

Temperatur min.

-35 °C

Tilspændingsmoment

170 - 213 Nm

Vinkel

45 °

Package size

0 stk

Barcode

5704334022855

Gross weight

1,45 Kg

Net weight

1,45 Kg

Country of origin

USA

Intrastat code

73269098

Product information

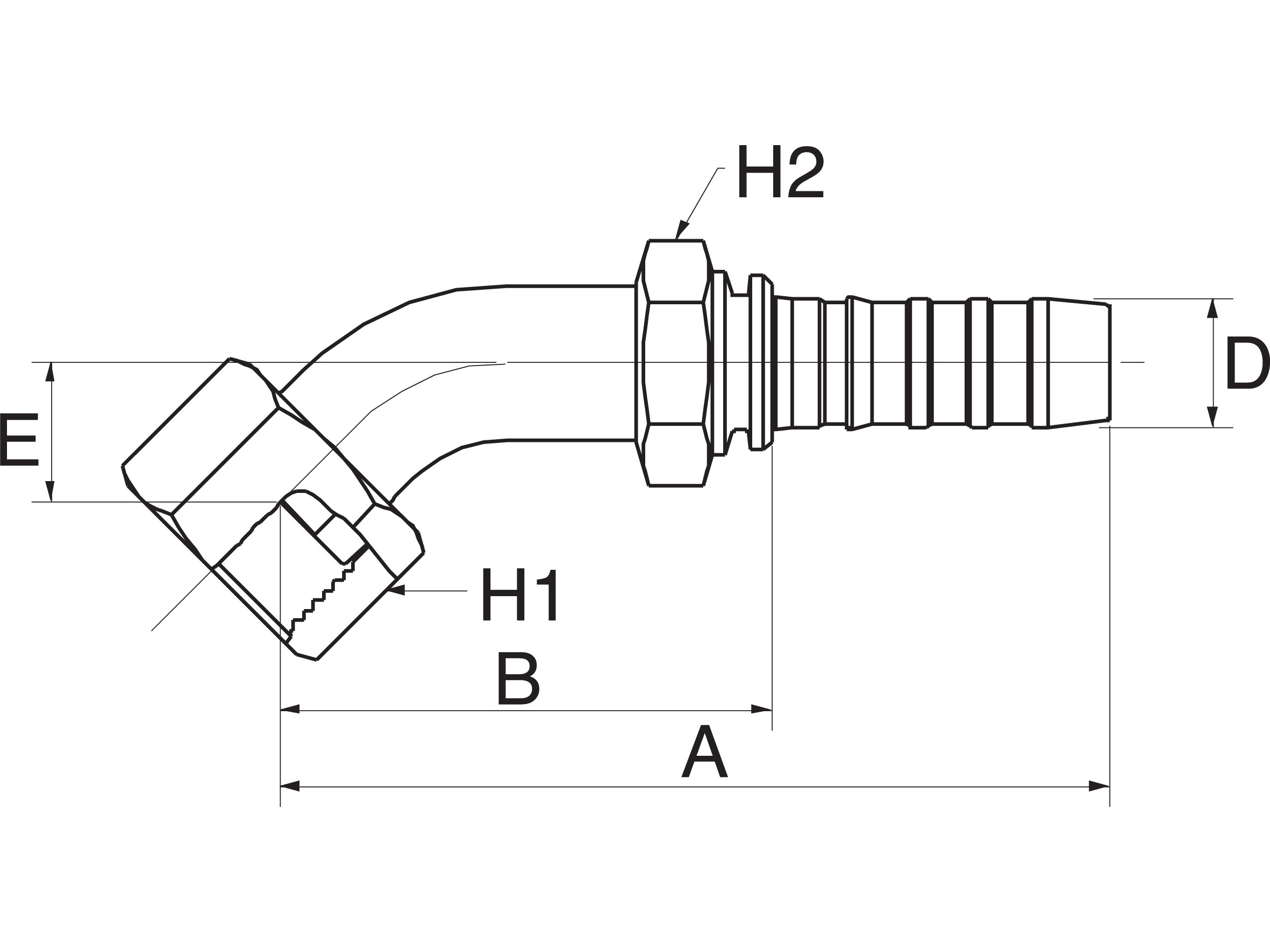

Measure sketch

Valg foretages typisk ud fra slangestørrelse, ORFS hun-gevindstørrelse og den nødvendige 45° vinkel ved tilslutningspunktet.

Typiske anvendelser

Hydraulikslangesamlinger hvor der kræves en ORFS hun-tilslutning i 45° vinkel
Hydraulikledninger opbygget med slangekobling til separat ferrule
