G1616PA90 - Kobling 1", 1" SAE 3000 psi 16G-16FL90S Gates MegaCrimp

Anvendes i forbindelse med halv-flanger

Varenummer:

G1616PA90

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Tilbehør (1)

32.93X3.53S - O-ring 90S

Partnumber: 32.93X3.53S

Specifications
Dimensions and shipping

Diameter flange

44.5 mm

Dimension A

139.3 mm

Dimension B

82.5 mm

Dimension D

1 "

Dimension K

44.5 mm

Flange

1 "

Flange SAE/DIN

3000 PSI

Korrosions resistens

500 hours salt spray ASTM B-117

Materiale

Stål

Model kode

16G-16FL90S

Mærke navn

Gates

O-ring

32,93X3,53 mm

Overfladebehandling

TuffCoat™

REACH compliant

RoHs compliant

Slangekoblingstype

Med fast kappe

Slangestørrelse

1 "

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Tilspændingsmoment

37 - 48 Nm

Tryk maks.

320 bar

Vinkel

0 °

Package size

0 pcs

Barcode

5704334293682

Gross weight

0,58 Kg

Net weight

0,58 Kg

Country of origin

USA

Intrastat code

73269098

Product information

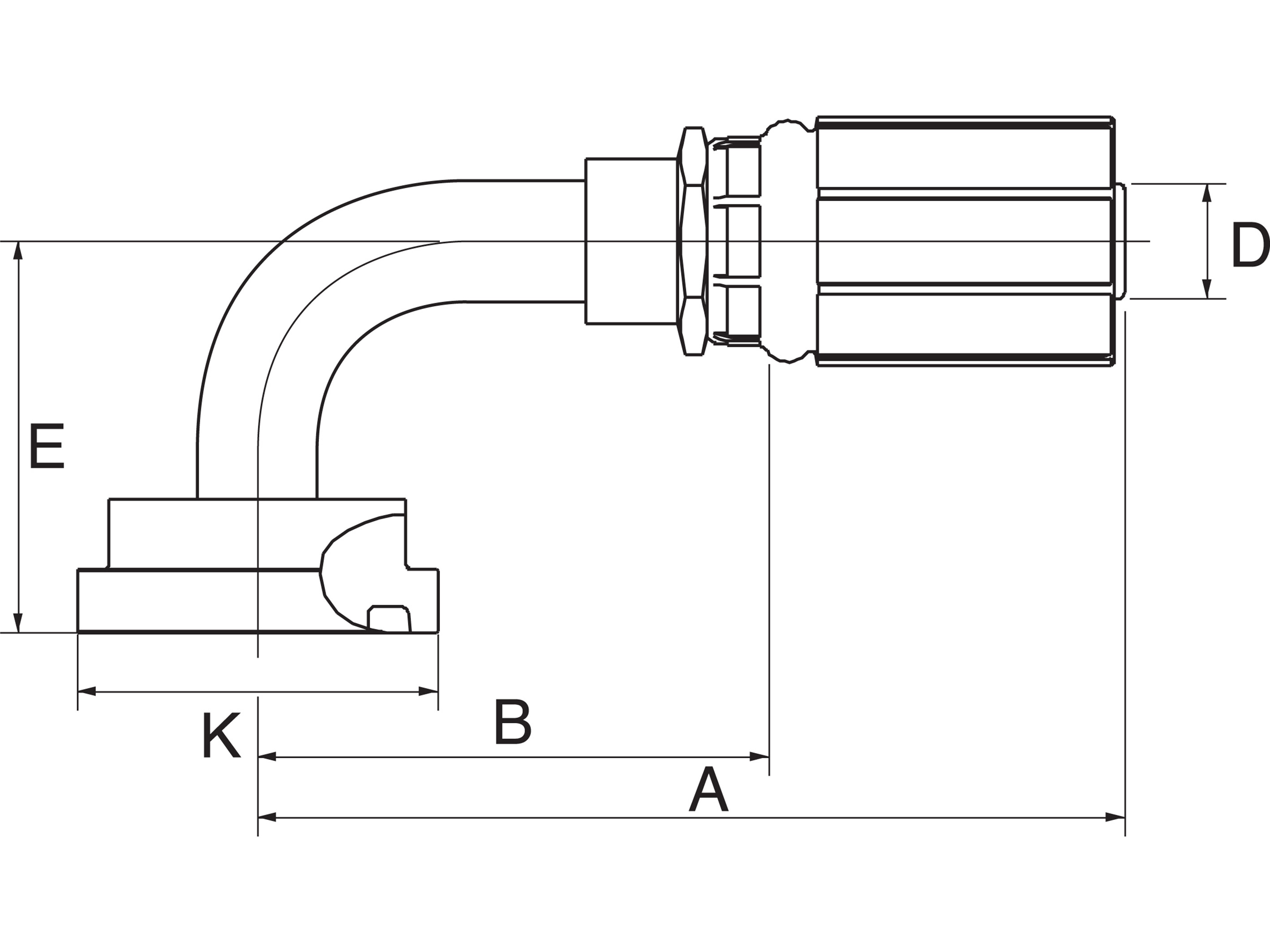

Measure sketch

Anvendes i forbindelse med halv-flanger
