AI06LM10X/71 - Påskruning - ø6L x M10x1" indv - AISI 316Ti
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
AI06LM10X/71
Package size:
0 pcs
Min. order quantity is:
1 pcs
Diameter rør
6 mm

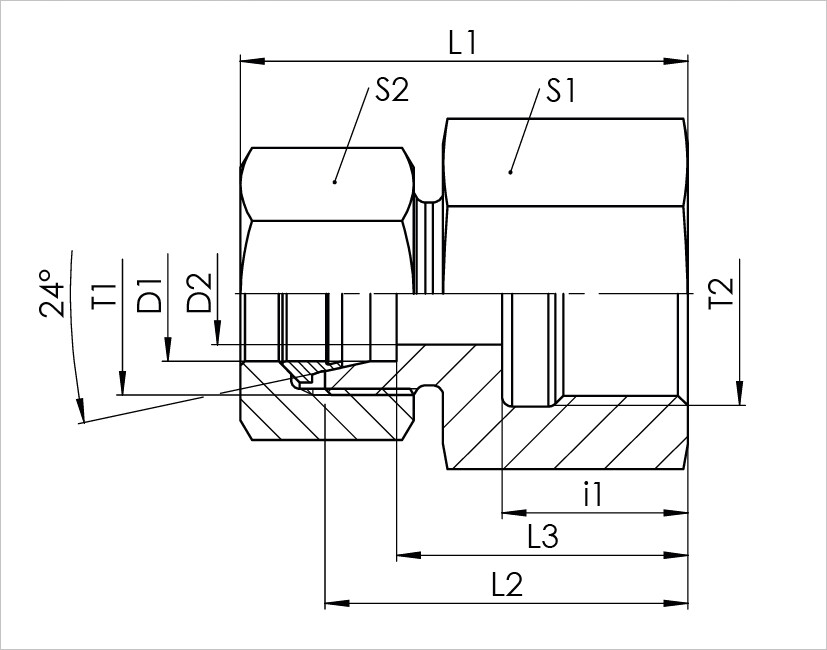

Dimension D1
6 mm
Dimension D2
4 mm
Dimension L1
34.5 mm
Dimension L2
26.5 mm
Dimension L3
19.5 mm
Dimension S1
14 mm
Dimension S2
14 mm
Dimension i1
12.5 mm
Gevind T1
M12x1,5
Gevind T2
M10x1 mm
Gevind indvendig metrisk
M10x1 MM
Gevind udvendig metrisk
M12x1,5
Materiale
Rustfrit stål
Materialekvalitet
1.4571 / AISI316Ti
Model kode
XGAIV 06 LM 10x1
Mærke navn
Volz
REACH compliant
Ja
RoHs compliant
Ja
Serie
L
Sikkerhedsfaktor
4
Temperatur maks.
+120 °C
Temperatur min.
-40 °C
Tryk maks.
315 bar
Vinkel
0 °
Package size
0 pcs
Barcode
5704295909561
Gross weight
0,09 Kg
Net weight
0,09 Kg
Country of origin
DEU
Intrastat code
73072910
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
