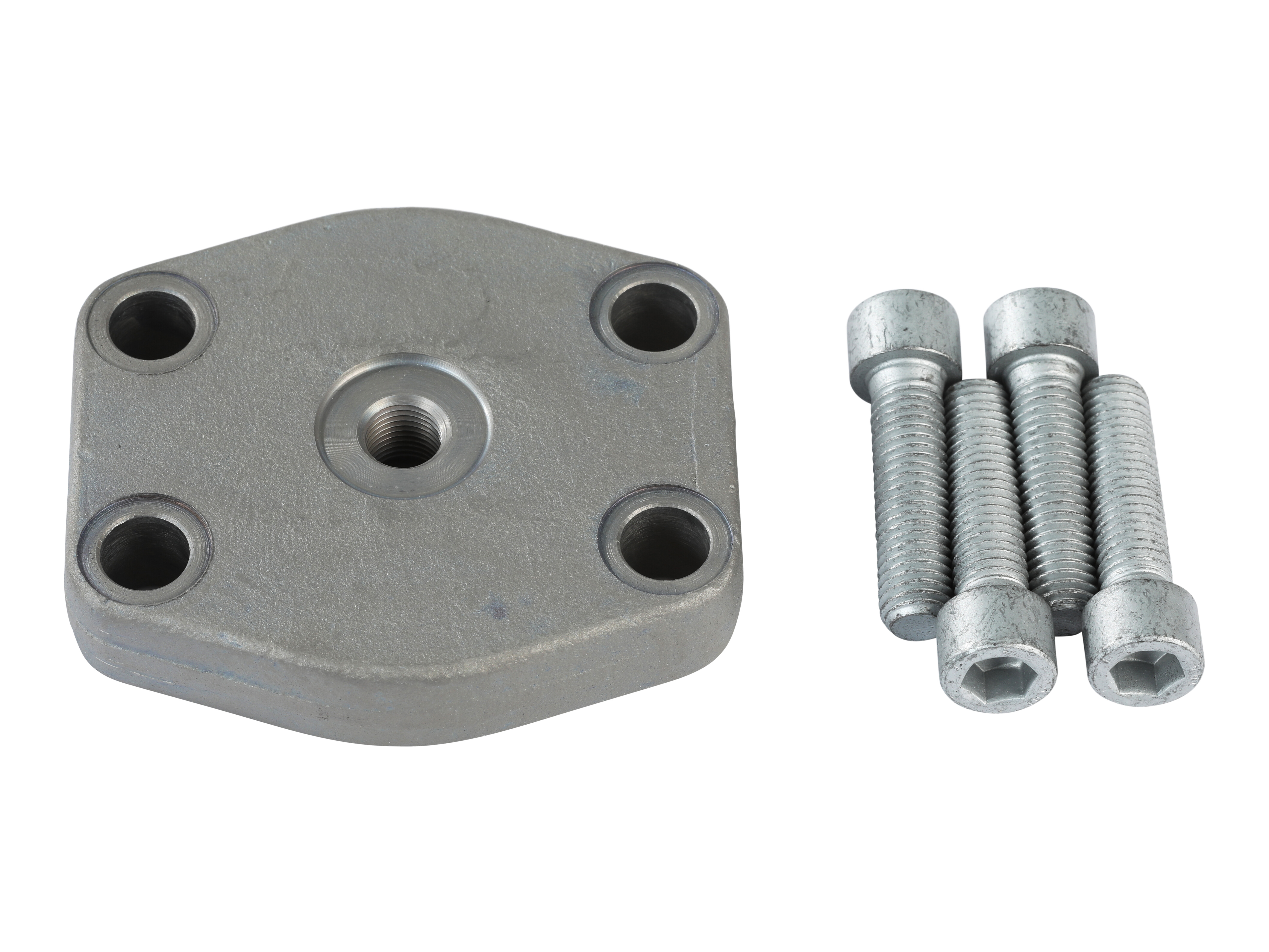

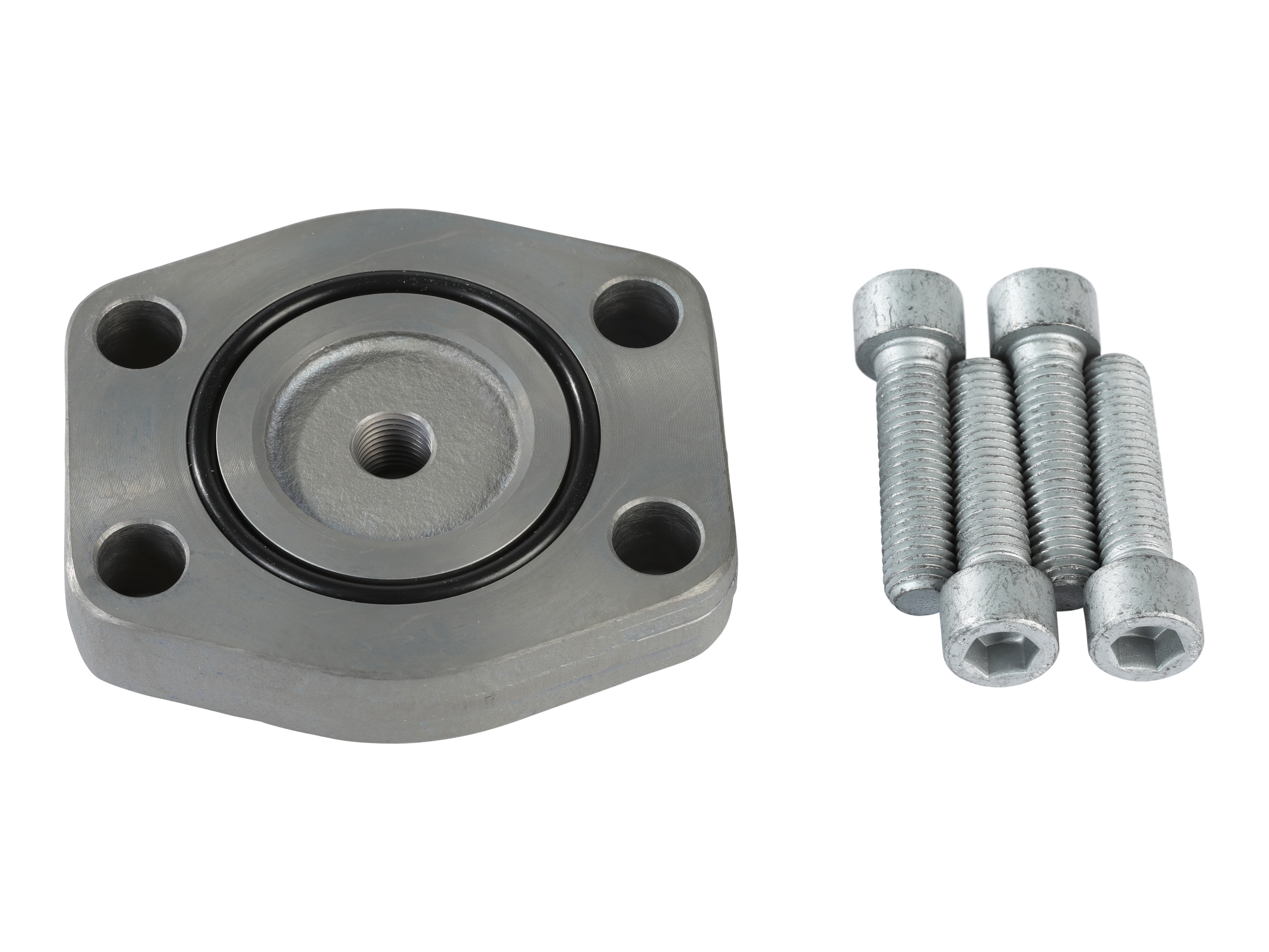

Blændflange 2" SAE3000 - 1/4" test - komplet
2" SAE blændflange 3000 PSI med 1/4" minimesh med M12X045, 56,75X3,53S
Partnumber:
AFC108-G14M
Package size:
0 stk
Min. order quantity is:
1 stk
Bolt dimension
M12x45 mm
Brand Name
Havit

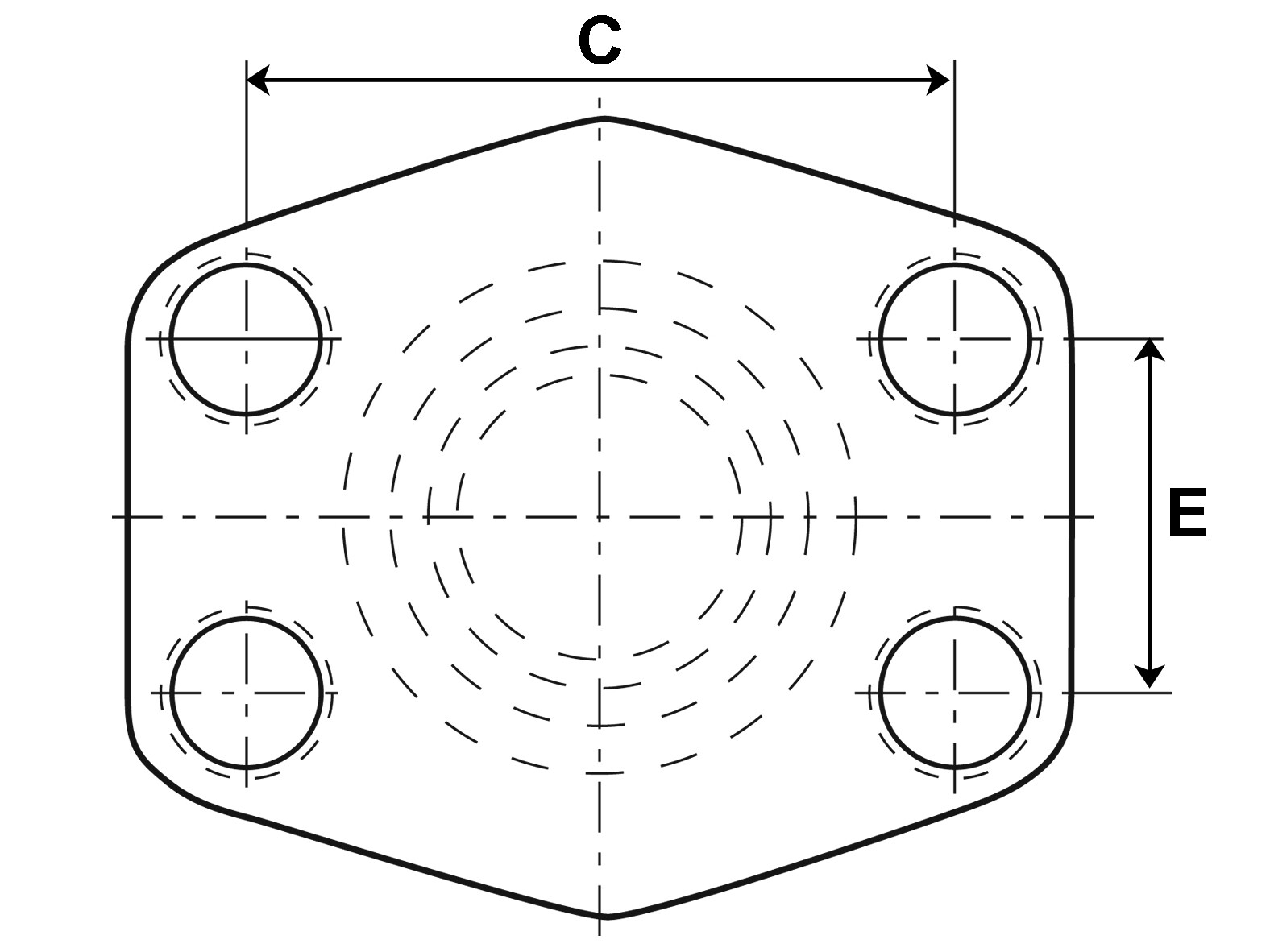

C
77,8 mm
Corrosion resistance
480 hours salt spray DIN EN 9227
Diameter flange
71.4 mm
E
42,9 mm
Flange
2 "
Flange SAE/DIN
3000 PSI
Material
Stål
Number of bolts
4
O-ring
56,75X3,53 mm
Pressure max.
210 bar
Sealing material
NBR
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Surface treatment
Zink-Nikkel belagt
Temperature max.
+90 °C
Temperature min.
-40 °C
Package size
0 stk
Barcode
5704334460169
Gross weight
0,60 Kg
Net weight
0,60 Kg
Country of origin
DEU
Intrastat code
73079100
2" SAE blændflange 3000 PSI med 1/4" minimesh med M12X045, 56,75X3,53S
