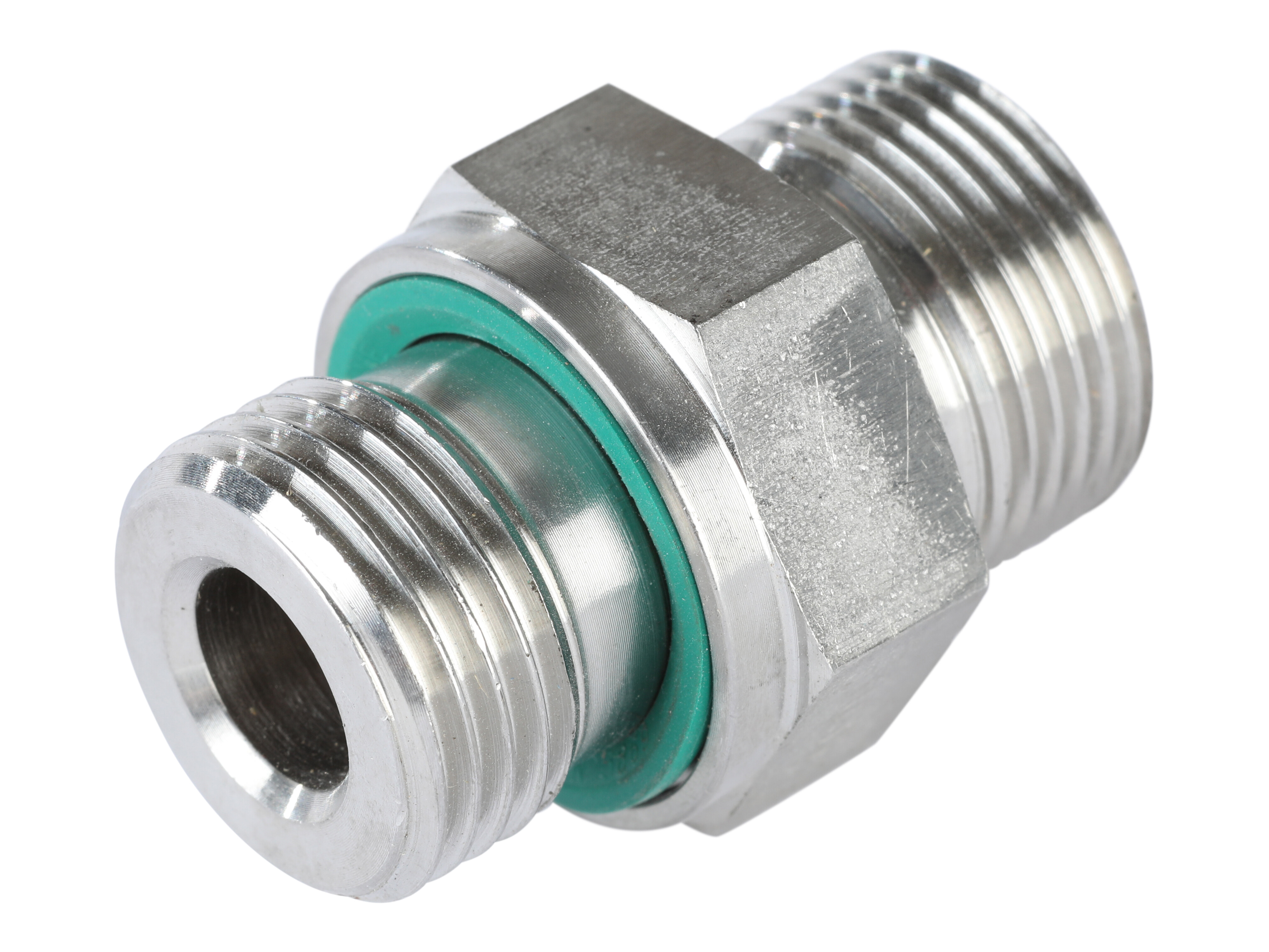

A30SR1WDX/71 - Indskruning ø30S x 1" BSP - WD seal - AISI316
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Artikelnummer:
A30SR1WDX/71
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Diameter rör
30 mm
Dimension D1
30 mm
Dimension D2
20 mm
Dimension L1
69 mm
Dimension L2
55 mm
Dimension L3
235 mm
Dimension S1
46 mm
Dimension S2
50 mm
Dimension T2
310
Dimension d1
30 mm
Dimension i
18 mm
Dimension i1
18 mm
Gänga T1
M42x2
Gänga utv.
G 1 BSP
Gänga utv. metrisk
M42x2
Materialkvalitet
1.4571 / AISI316Ti
Modell kod
XGEV 30 SR 1 WD
Märke namn
Volz
Packningsmaterial
FKM/FPM (Viton®)
REACH compliant
Ja
RoHs compliant
Ja
Serie
S
Säkerhetsfaktor
4
Temperatur max.
+200 °C
Temperatur min.
-25 °C
Thread T2
G 1 BSP
Tillverkningsmaterial
Syrefast Stål
Tryck max.
400 bar
Vinkel
0 °
Package size
0 pcs
Barcode
21869
Gross weight
Kg
Net weight
Kg
Country of origin
deu
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
