A04MLLX/71 - Indskruning - ø4LL x M8x1 konisk - AISI 316Ti
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
A04MLLX/71
Package size:
0 pcs
Min. order quantity is:
1 pcs

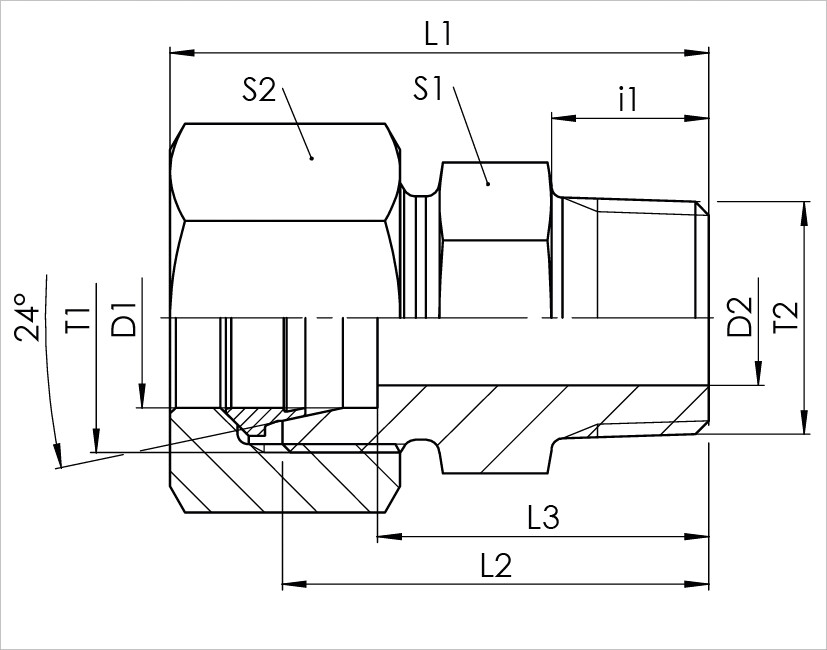

Diameter rør
4 mm
Dimension i
8 mm
Gevind T1
M8x1
Gevind T2
M8x1 keg. mm
L1
26 mm
L2
20 mm
L3
16 mm
Materiale
Rustfrit stål
Materialekvalitet
1.4571 / AISI316Ti
Model kode
XGEV 04 LLM 8x1 keg
Mærke navn
Volz
REACH compliant
Ja
RoHs compliant
Ja
S1
10 mm
S2
10 mm
Serie
LL
Sikkerhedsfaktor
4
Temperatur maks.
+400 °C
Temperatur min.
-60 °C
Tryk maks.
100 bar
Vinkel
0 °
d1
4 mm
d2
3 mm
i
8 mm
Package size
0 pcs
Barcode
5704334202851
Gross weight
0,01 Kg
Net weight
0,01 Kg
Country of origin
DEU
Intrastat code
73072910
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Note: Opening 3D files requires a program that supports the file format
