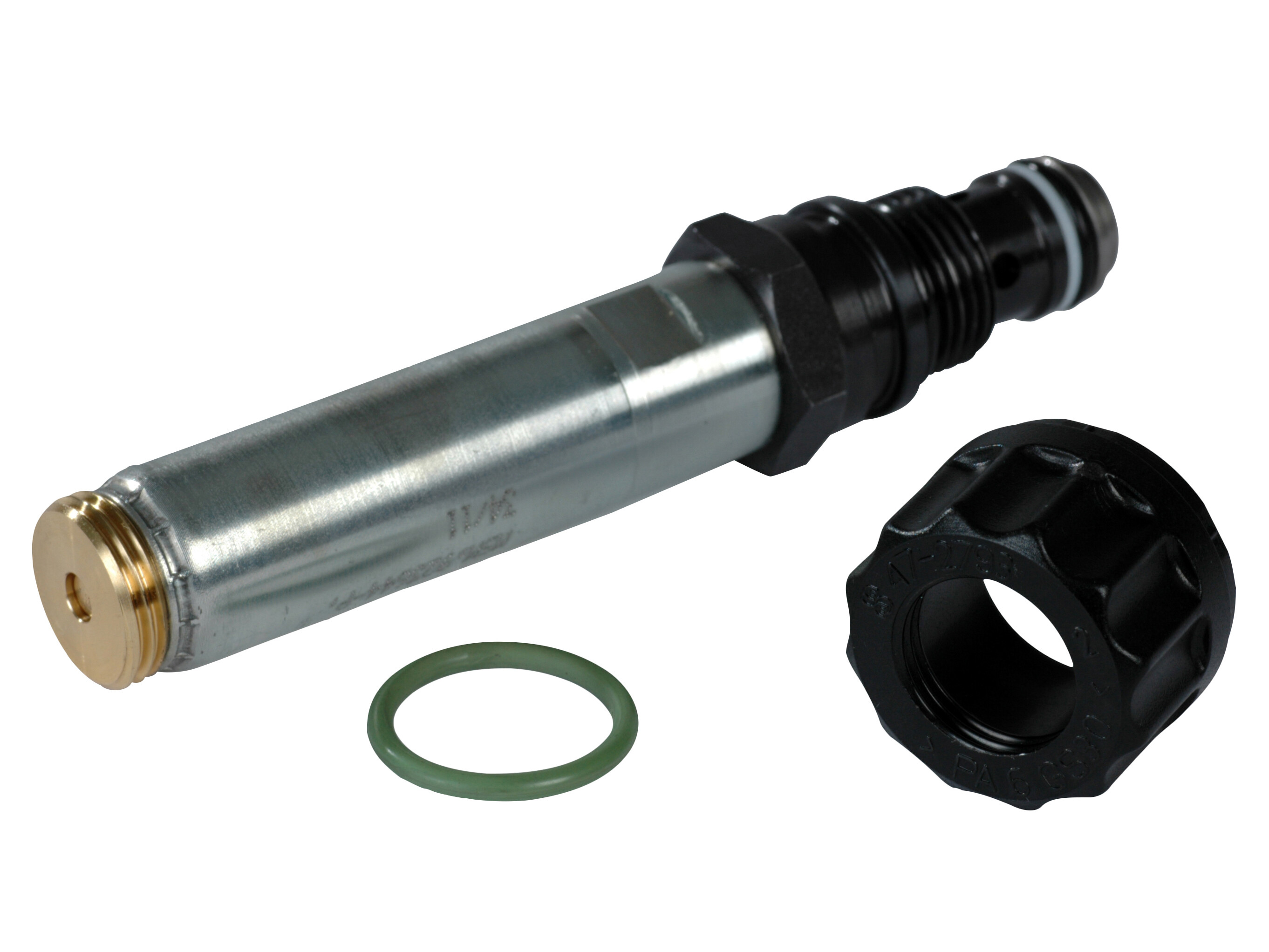

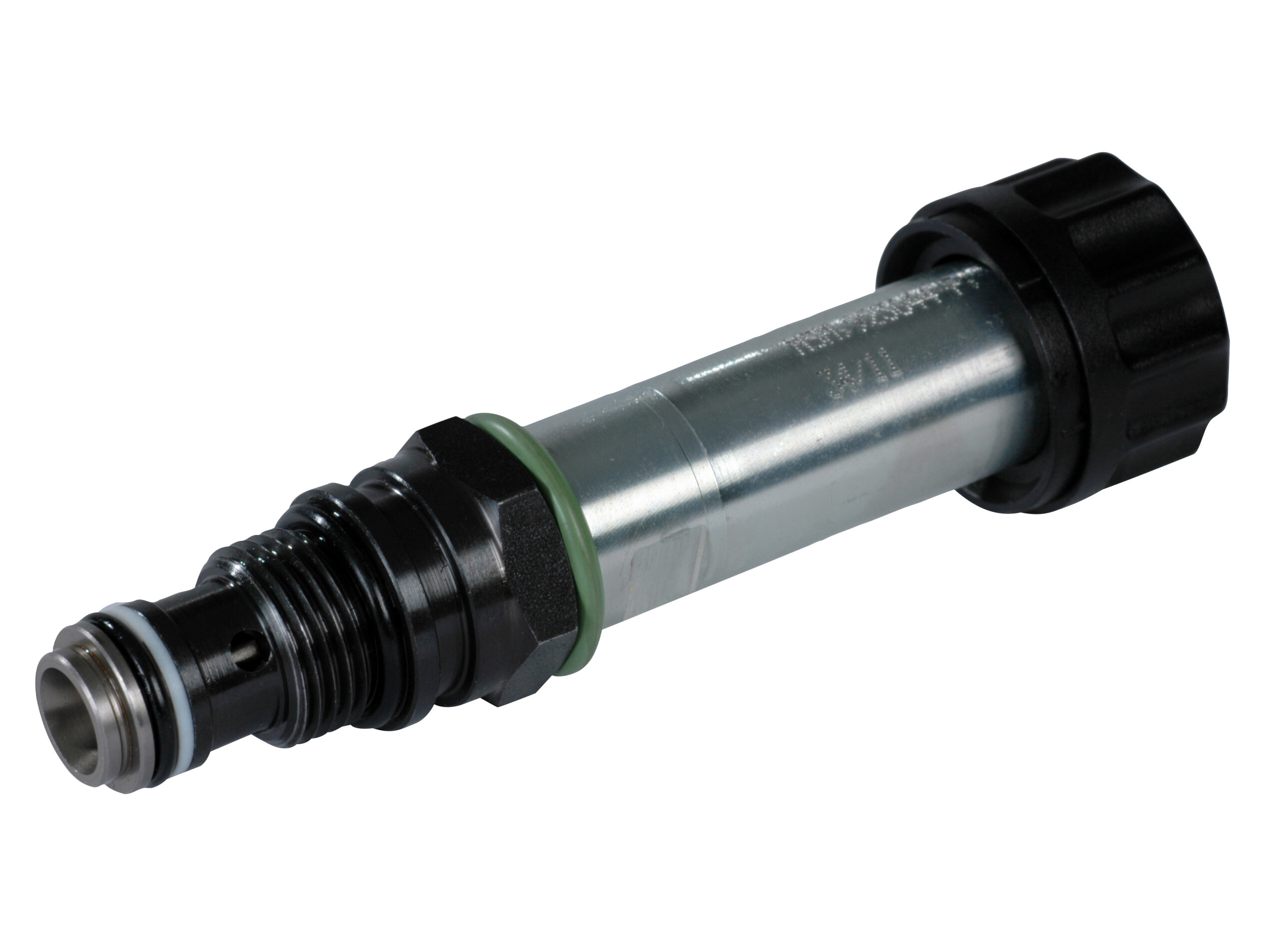

Proportional relief valve XMD 04-250-00-00-00-00
This is a direct acting, poppet type, normally open, proportional relief valve.
In the de-energized condition, the pressure setting will be at a minimum. As current is applied to the coil, the pressure setting of the valve will increase proportionally. This valve is ideal for use as a pilot valve to control larger logic elements.
Artikelnummer:
850202519
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Brand Name
Danfoss
Cavity
NCS04/2
Contamination level max.
18/17/13 - ISO 4406
Flow rate nominal LMin
4 lpm
Key size
22 mm
Model code
XMD04-250-00-00-00-00
Oil viscocity recommended
12 - 54 cSt
Pressure max.
250 bar
Pressure setting max.
250 bar
Pressure setting min.
7 bar
Sealing material
NBR
Torque tightening
44 - 50 Nm
Förpackningsstorlek
0 pcs
Streckkod
5704334371717
Bruttovikt
0,22 Kg
Nettovikt
0,22 Kg
Ursprungsland
Intrastat artikelkod
84812010
This is a direct acting, poppet type, normally open, proportional relief valve.
In the de-energized condition, the pressure setting will be at a minimum. As current is applied to the coil, the pressure setting of the valve will increase proportionally. This valve is ideal for use as a pilot valve to control larger logic elements.
