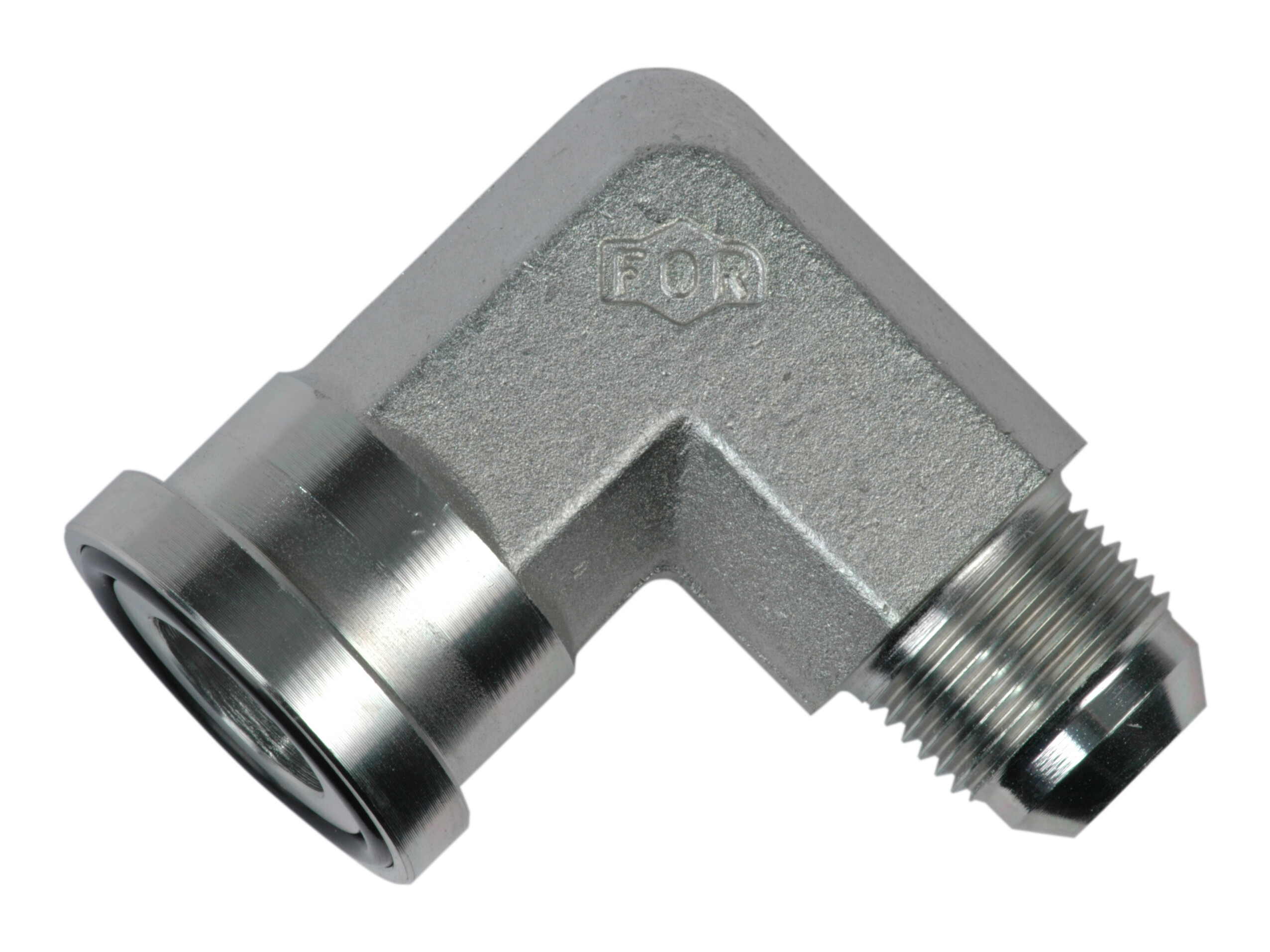

Vinkel 1.1/16 JICx1 flange
Vinkel 1.1/16 JICx1 flange
Varenummer:
27PA1216
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs

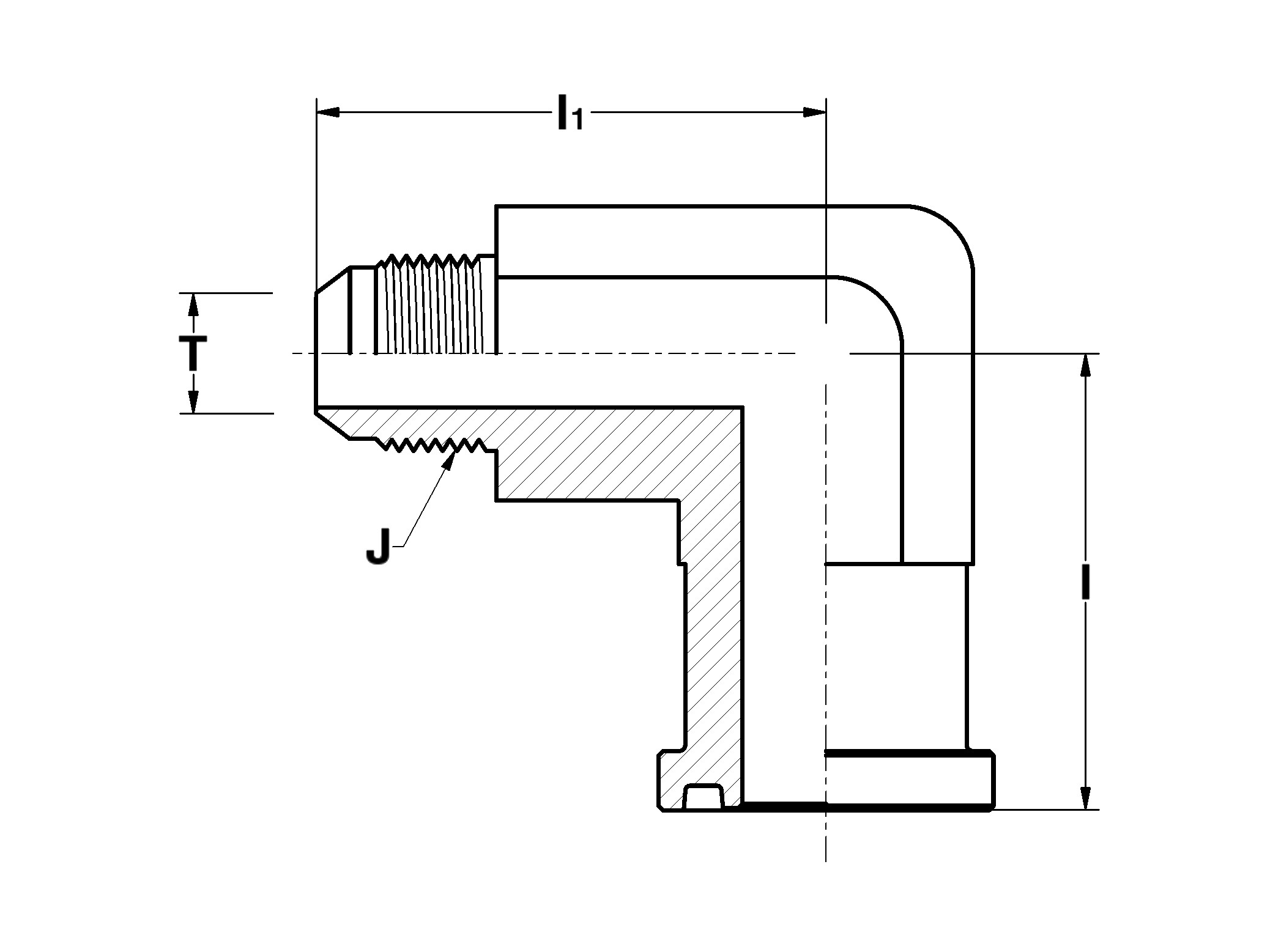

Diameter flange
44.5 mm
Dimension A
52.4 mm
Dimension B
26.2 mm
Dimension C
52.4 mm
Dimension E
26.2 mm
Dimension I
54 mm
Dimension J
1.1/16-12 JIC
Dimension T
20 mm
Dimension l1
61 mm
Flange
1 "
Flange SAE/DIN
3000 PSI
Gevind udvendig
1.1/16-12 JIC
Korrosions resistens
1400 hours salt spray DIN EN ISO 9227
Materiale
Stål
Mærke navn
FOR
O-ring
32.93X3.53 mm
Overfladebehandling
El-forzinket
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Vinkel
90 °
Package size
0 pcs
Barcode
5704295991405
Gross weight
0,56 Kg
Net weight
0,56 Kg
Country of origin
ITA
Intrastat code
73071110
Vinkel 1.1/16 JICx1 flange
