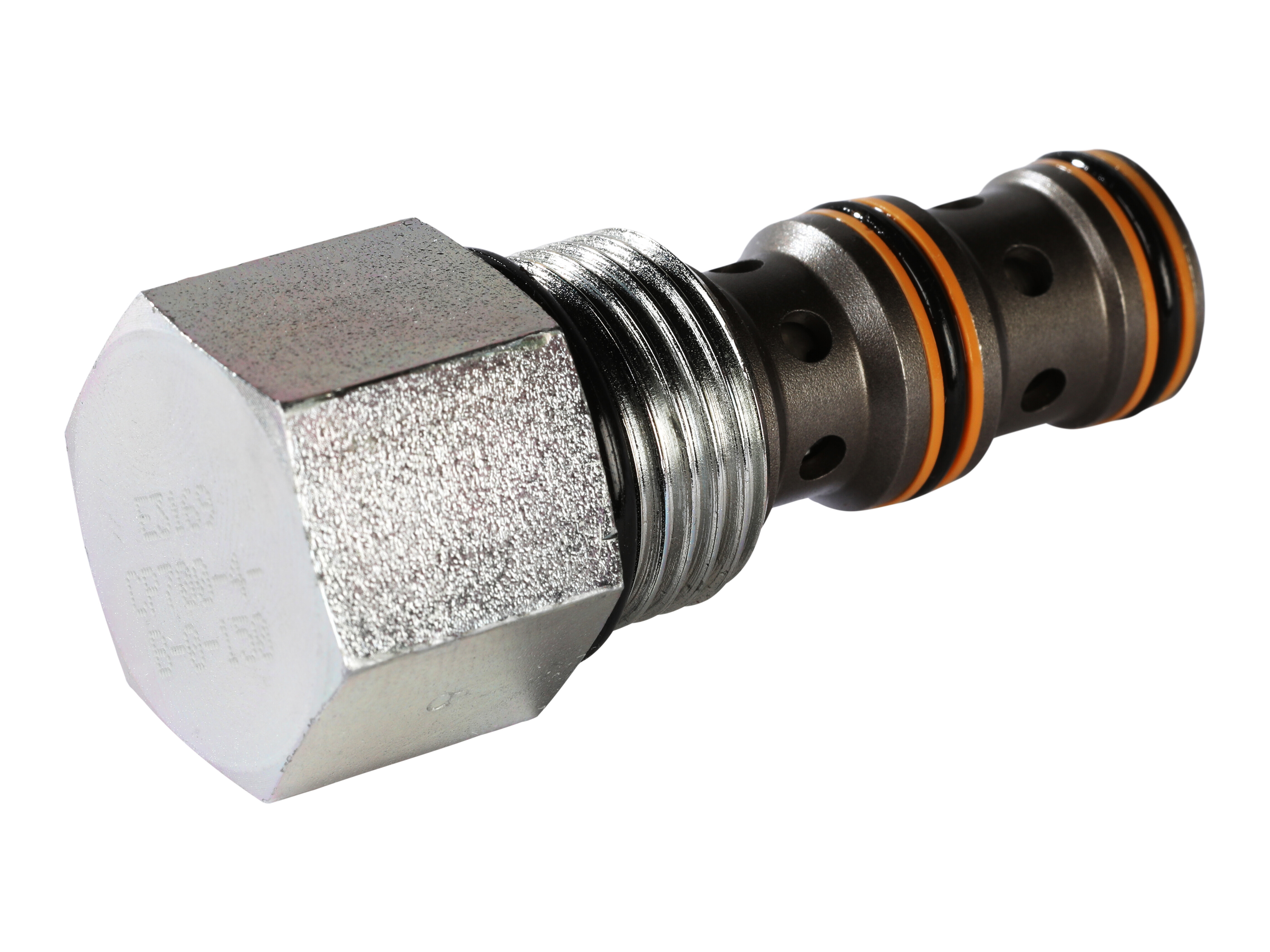

Logic element 40l/m NO Spool type CP700-4-B-0-150
This is a 3-ported, normally open, pilot to open, spool type logic element. Flow is open from port 2 to port 1, until pressure in port 1 is sufficient to overcome the spring set pressure plus any pressure in port 3.
The pressure in port 3 can be controlled remotely making the valve ideal for use as a normally open on/off element in a pressure reducing function. This valve is most commonly used as a pressure compensator in conjunction with a proportional directional valve.
Varenummer:
133899
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Brand Name
Danfoss
Cavity
SDC10-3
Contamination level max.
20/18/14 - ISO 4406
Flow rate nominal LMin
40 lpm
Model code
CP700-4-B-0-150
Oil viscocity recommended
12 - 54 cSt
Pressure max.
210 bar
Temperature max.
+100 °C
Temperature min.
-40 °C
Torque tightening
41 - 47 Nm
Pakke str.
0 pcs
Stregkode
5704334370970
Brutto vægt
0,13 Kg
Netto vægt
0,13 Kg
Oprindelsesland
Intrastat varekode
84812010
This is a 3-ported, normally open, pilot to open, spool type logic element. Flow is open from port 2 to port 1, until pressure in port 1 is sufficient to overcome the spring set pressure plus any pressure in port 3.
The pressure in port 3 can be controlled remotely making the valve ideal for use as a normally open on/off element in a pressure reducing function. This valve is most commonly used as a pressure compensator in conjunction with a proportional directional valve.
