SD5/3-P(JG3-120)/18ES3/18ES3/ 18ES3/AET-12VDC

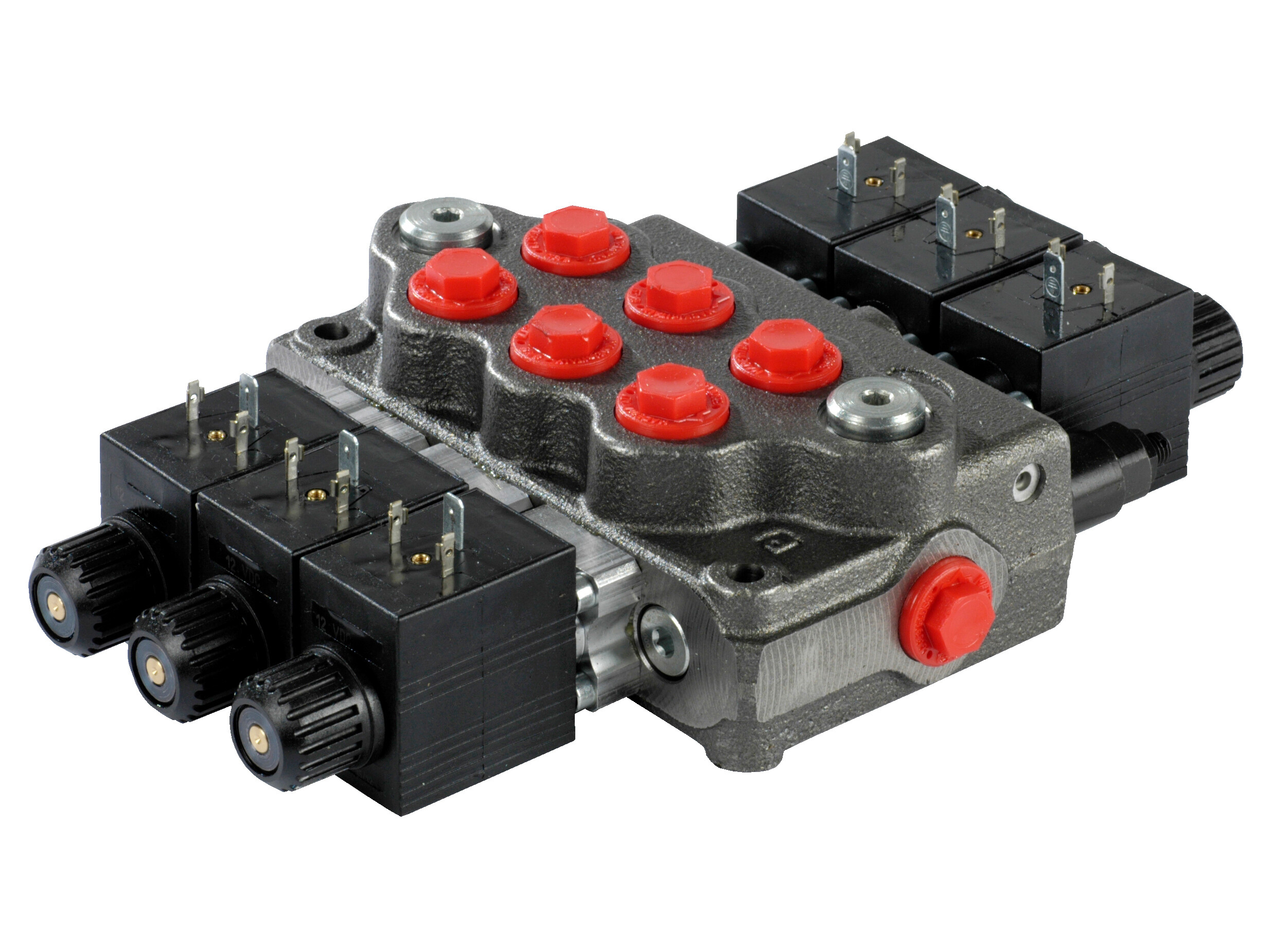

3-section SD5 monoblock valve with built-in pressure relief valve and 3 spools in parallel. Solenoid (24 Vdc) activated.
Spool function: 3 x double acting with port A and B closed in neutral position. Spring centered.
Solenoid activation: On/Off.
Open center P to T in neutral position.
Artikelnummer:
102300023
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Antal sektioner
3
Arbejdsporte
G 3/8 BSP
Flow Nominel
45 lpm
Forureningsgrad maks.
-/19/16 - ISO 4406
Håndtag
Exclusive
Materiale
Cast iron
Model kode
SD5/3-P(JG3-120)/18ES3/18ES3/18ES3/AET-12VDC
Mærke navn
Walvoil
Olieviskositet anbefalet
12 - 400 cSt
Port P
G 3/8 BSP
Port T
G 3/8 BSP
Spænding
12 V
Strømtype
DC
Tryk T maks.
25 bar
Tryk maks.
315 bar
Trykbegrænsningsventil
Yes
Trykindstilling maks.
200 bar
Trykindstilling min.
50 bar
Trykvidereføring
No
Förpackningsstorlek
0 pcs
Streckkod
5704334252023
Bruttovikt
9,09 Kg
Nettovikt
9,09 Kg
Ursprungsland
ITA
Intrastat artikelkod
84812010
3-section SD5 monoblock valve with built-in pressure relief valve and 3 spools in parallel. Solenoid (24 Vdc) activated.
Spool function: 3 x double acting with port A and B closed in neutral position. Spring centered.
Solenoid activation: On/Off.
Open center P to T in neutral position.
