SDM122/2-P(UD-180)/1[S]13TQ81/ 1(S)8MCTQ81/AET-<CVN2> Walvoi

SDM122/2-P(UD-180)/1[S]13TQ81/ 1(S)8MCTQ81/AET-<CVN2> Walvoi

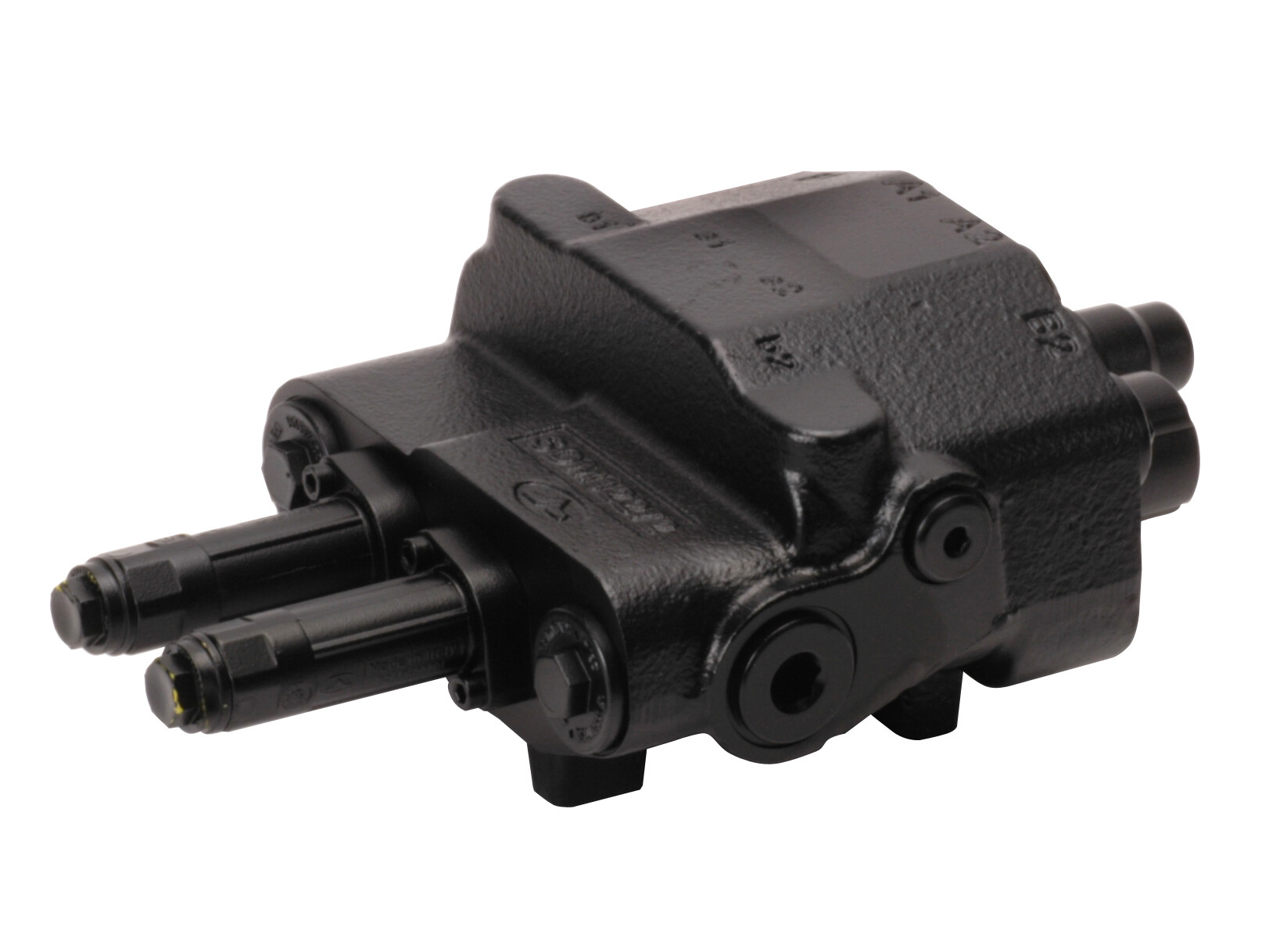

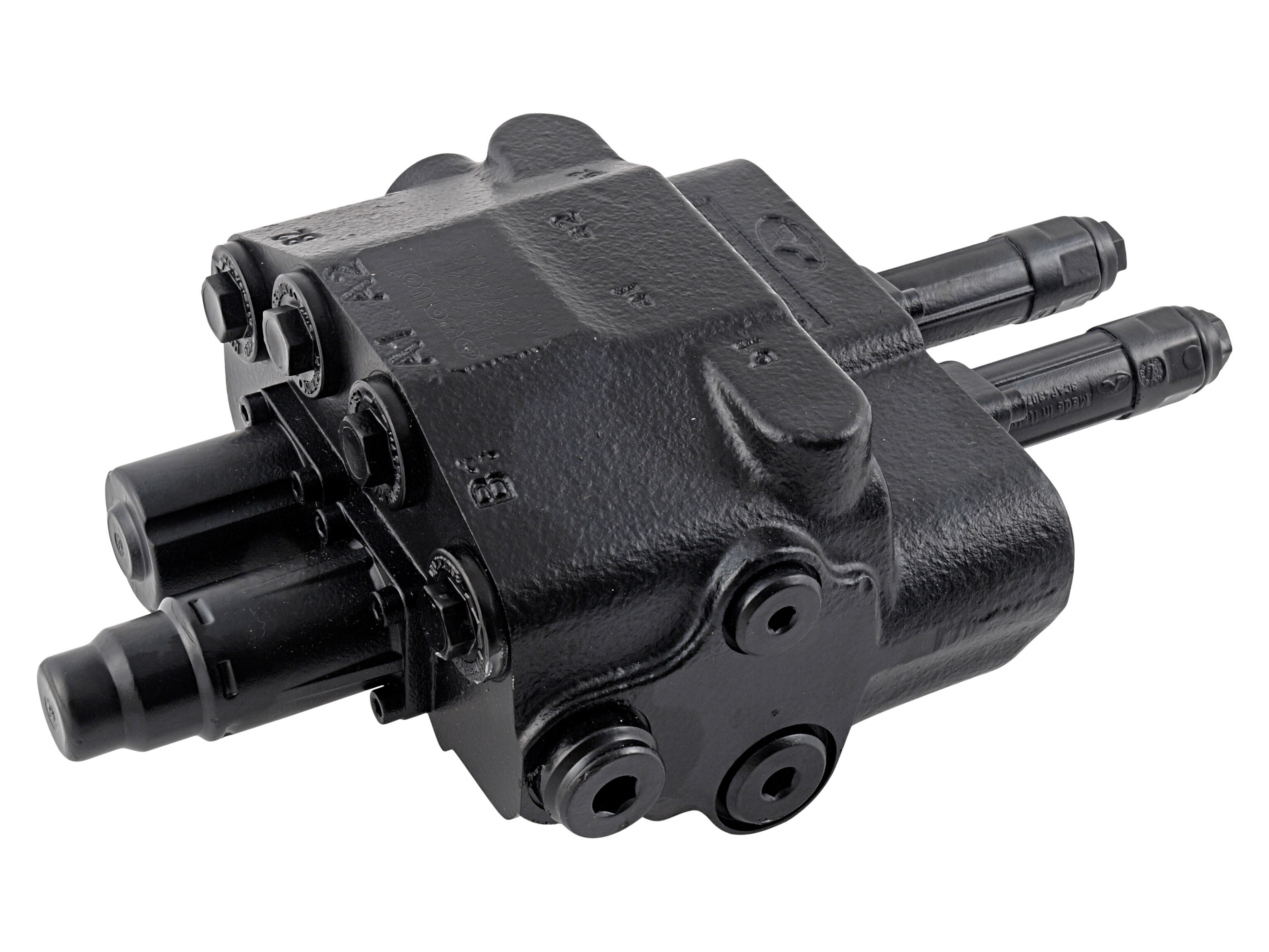

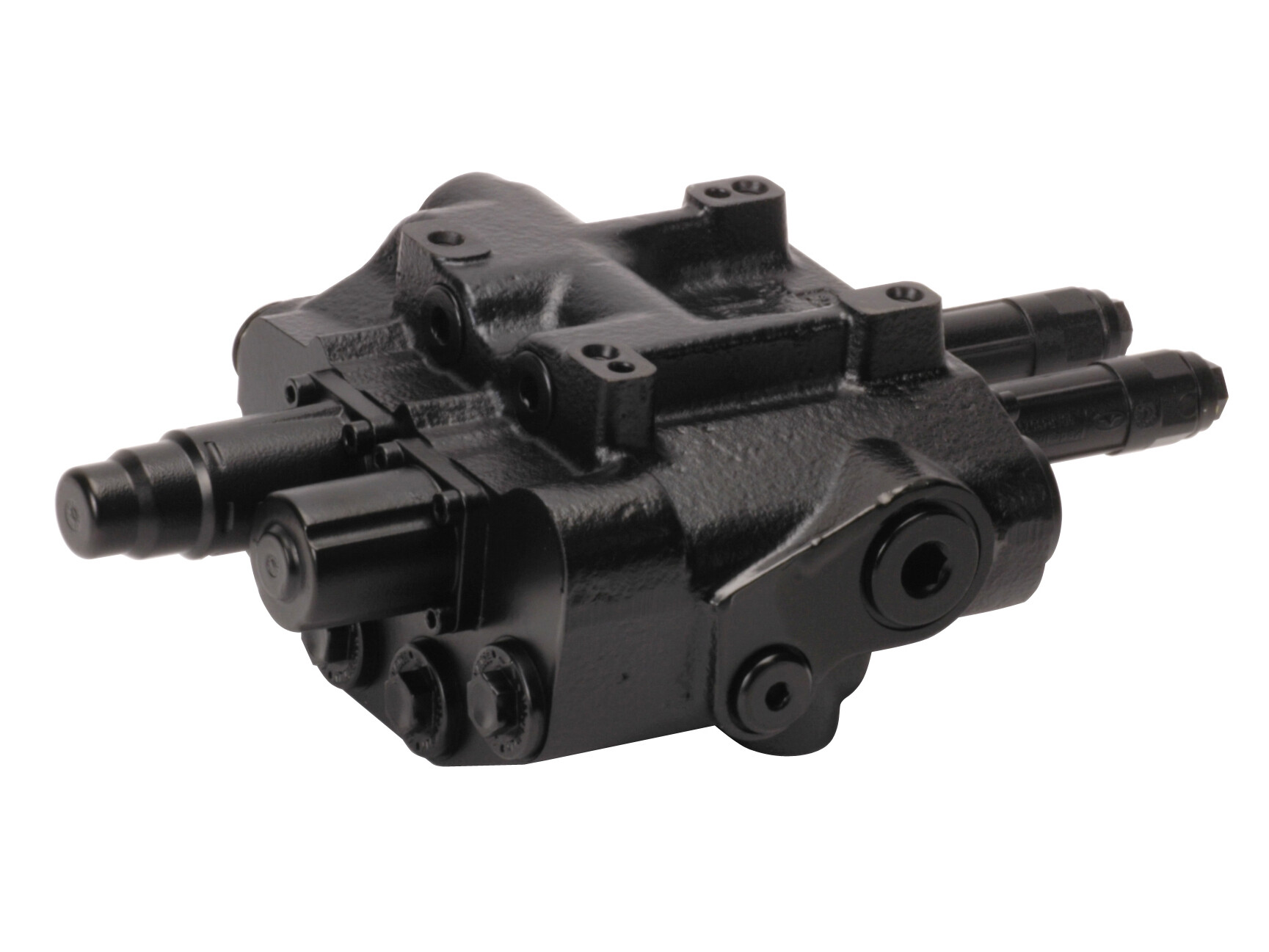

2-sektions SDM122 monoblok retningsventil med indbygget trykbegrænsningsventil og 2 glidere (parallelt forbundne). Manuelt aktiverede med kabler og håndtag. "Frontlæsserventil"

Gliderfunktion: 2 x dobbeltvirkende med port A og B lukket i neutralstilling. Fjedercentrerede.

Trykbegrænsningsventil fast indstillet til: 180 bar.

Åbent center med gennemløb P til T i neutralstilling.

AET = Forberedt for montering af trykvidereføringsbøsning (port afproppet).

Varenummer:

10202B013

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Spare parts (1)

Kabeltilsl. TQ50 for SD5,SD6

Partnumber: 5TEL105110

Specifications
Dimensions and shipping

Aktivering

Kabel

Antal sektioner

Arbejdsporte

G 1/2 BSP

Flow Nominel

80 lpm

Forureningsgrad maks.

-/19/16 - ISO 4406

Håndtag

Eksklusiv

Model kode

SDM122/2-P(UD-180)/1[S]13TQ81/1(S)8MCTQ81/AET-<CVN2>

Mærke navn

Walvoil

Overfladebehandling

Sort primer

Port P

G 3/4 BSP

Port T

G 3/4 BSP

Tryk T maks.

10 bar

Tryk maks.

250 bar

Trykbegrænsningsventil

Trykvidereføring

Nej

Package size

0 pcs

Barcode

5704334122777

Gross weight

12,25 Kg

Net weight

12,25 Kg

Country of origin

ITA

Intrastat code

84812010

Product information

2-sektions SDM122 monoblok retningsventil med indbygget trykbegrænsningsventil og 2 glidere (parallelt forbundne). Manuelt aktiverede med kabler og håndtag. "Frontlæsserventil"

Gliderfunktion: 2 x dobbeltvirkende med port A og B lukket i neutralstilling. Fjedercentrerede.

Trykbegrænsningsventil fast indstillet til: 180 bar.

Åbent center med gennemløb P til T i neutralstilling.

AET = Forberedt for montering af trykvidereføringsbøsning (port afproppet).
