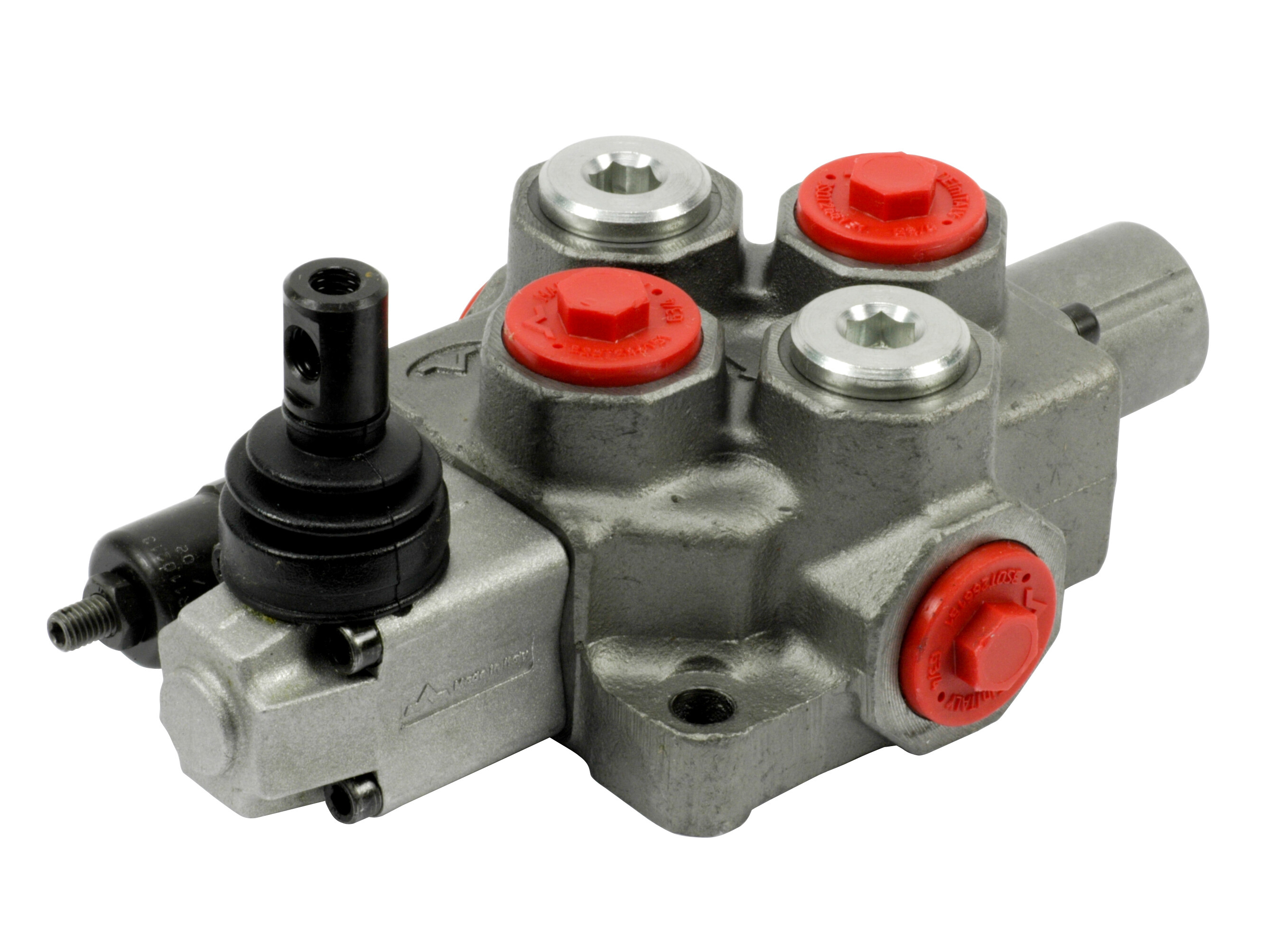

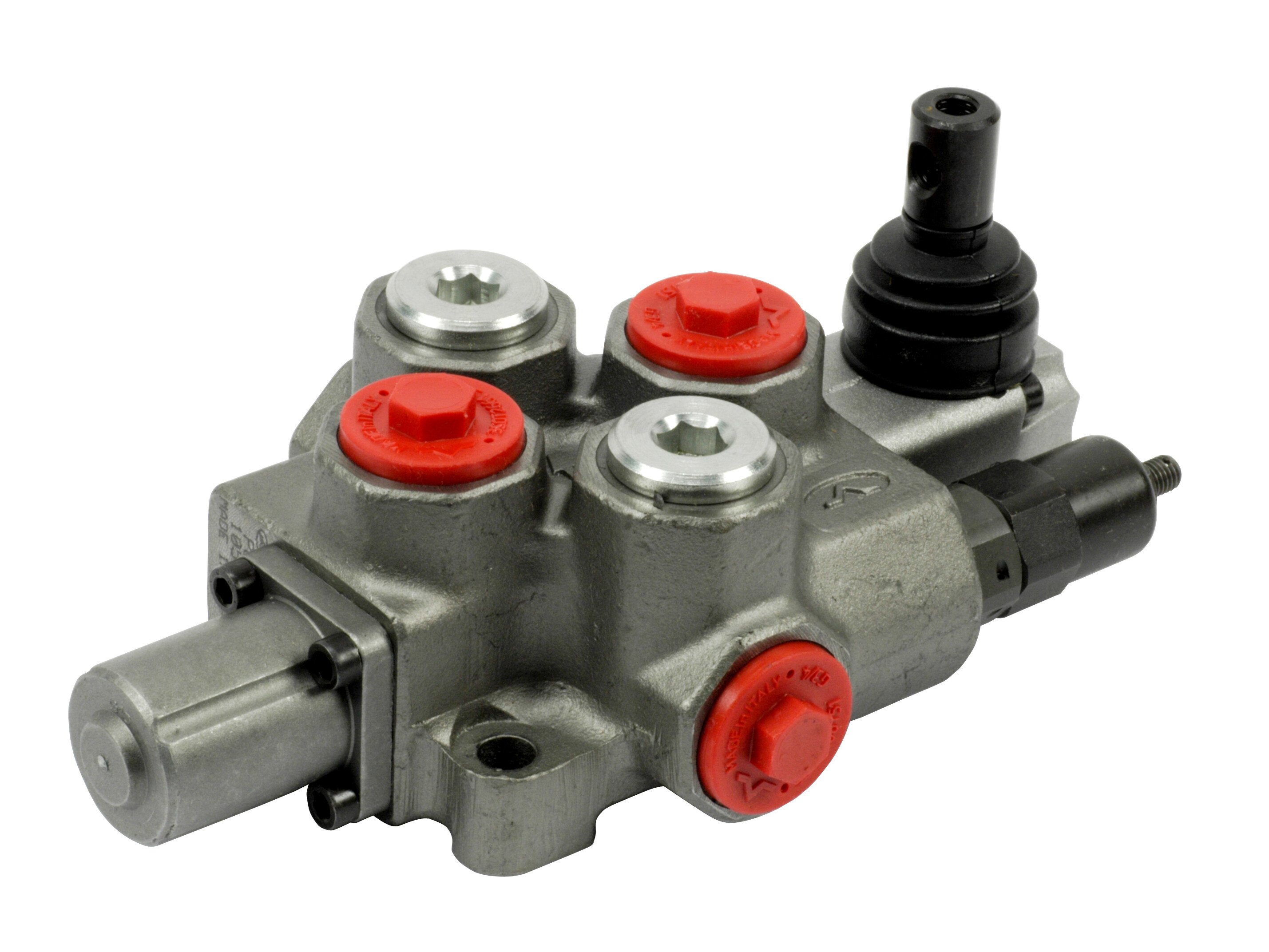

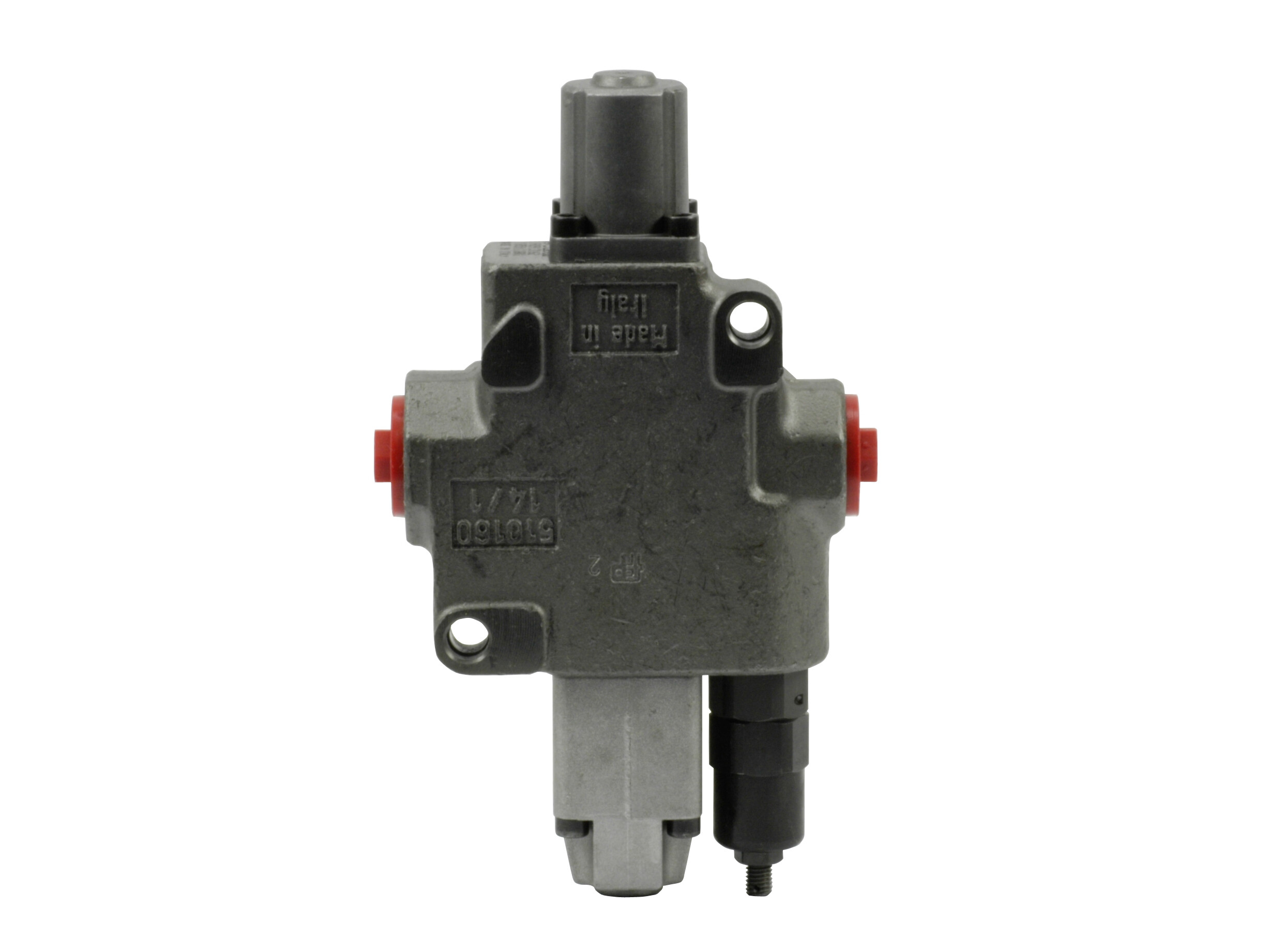

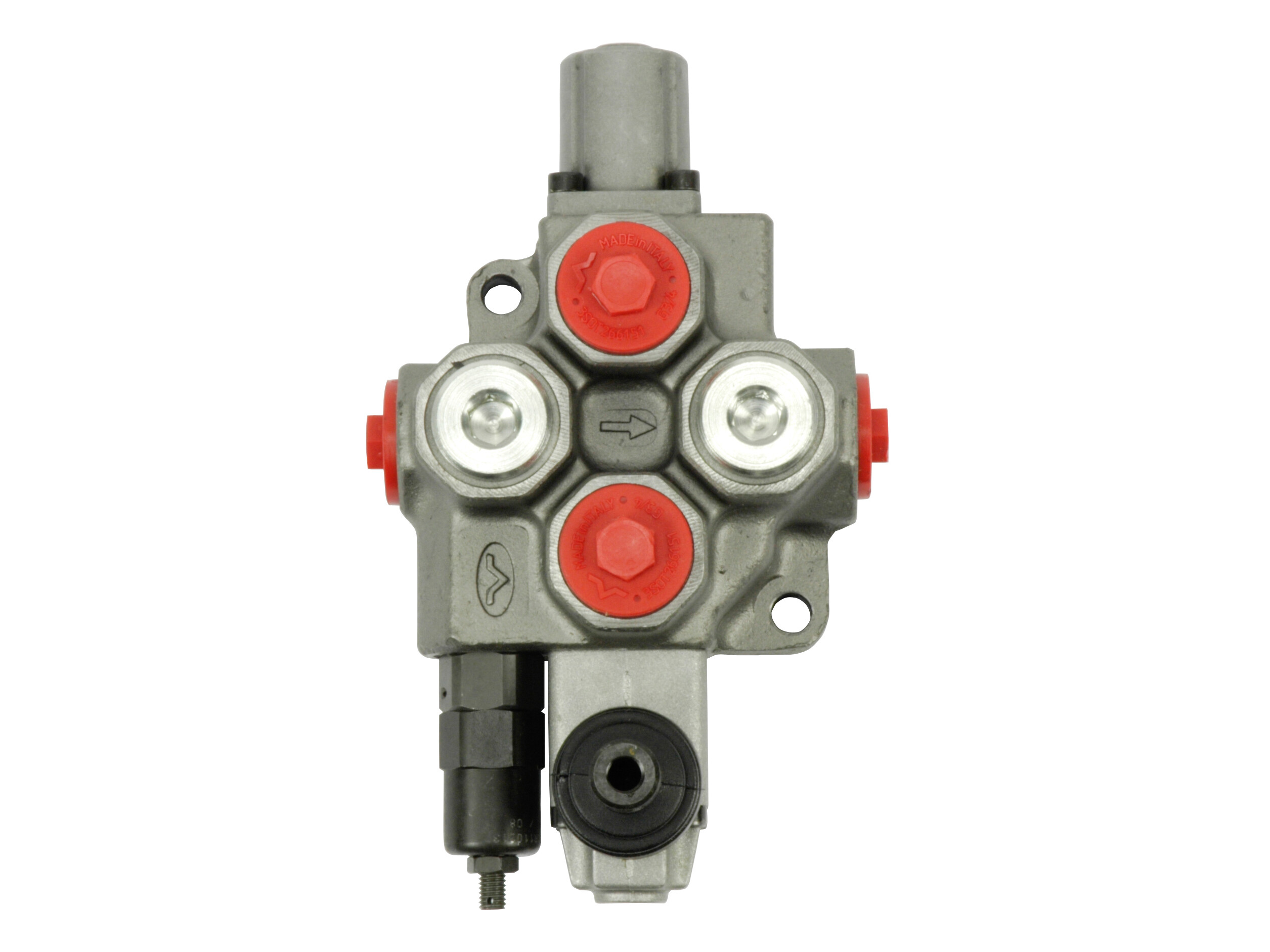

SD14/1(YG3-120)/1CP8L Walvoil directional valve
1 section SD14 monoblock directional valve with built-in pressure relief valve and one spool, manually activated with hand lever.
Spool function: Double acting with positive overlap, port A and B closed in neutral position. Spring centered.
Open center (flow P to T in neutral position).
AET = Prepared for pressure carry-over (port plugged).
Varenummer:
105111001
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Antal sektioner
1
Arbejdsporte
G 3/4 BSP
Flow Nominel
120 lpm
Forureningsgrad maks.
-/19/16 - ISO 4406
Håndtag
Exclusive
Materiale
Cast iron
Model kode
SD14/1(YG3-120)/1CP8L
Mærke navn
Walvoil
Olieviskositet anbefalet
12 - 400 cSt
Port P1
G 3/4 BSP
Port P2
G 3/4 BSP
Port T1
G 3/4 BSP
Port T2
G 3/4 BSP
Tryk maks.
250 bar
Trykbegrænsningsventil
Yes
Trykindstilling maks.
200 bar
Trykindstilling min.
125 bar
Package size
0 pcs
Barcode
5704334153412
Gross weight
4,58 Kg
Net weight
4,58 Kg
Country of origin
ITA
Intrastat code
84812010
1 section SD14 monoblock directional valve with built-in pressure relief valve and one spool, manually activated with hand lever.
Spool function: Double acting with positive overlap, port A and B closed in neutral position. Spring centered.
Open center (flow P to T in neutral position).
AET = Prepared for pressure carry-over (port plugged).
