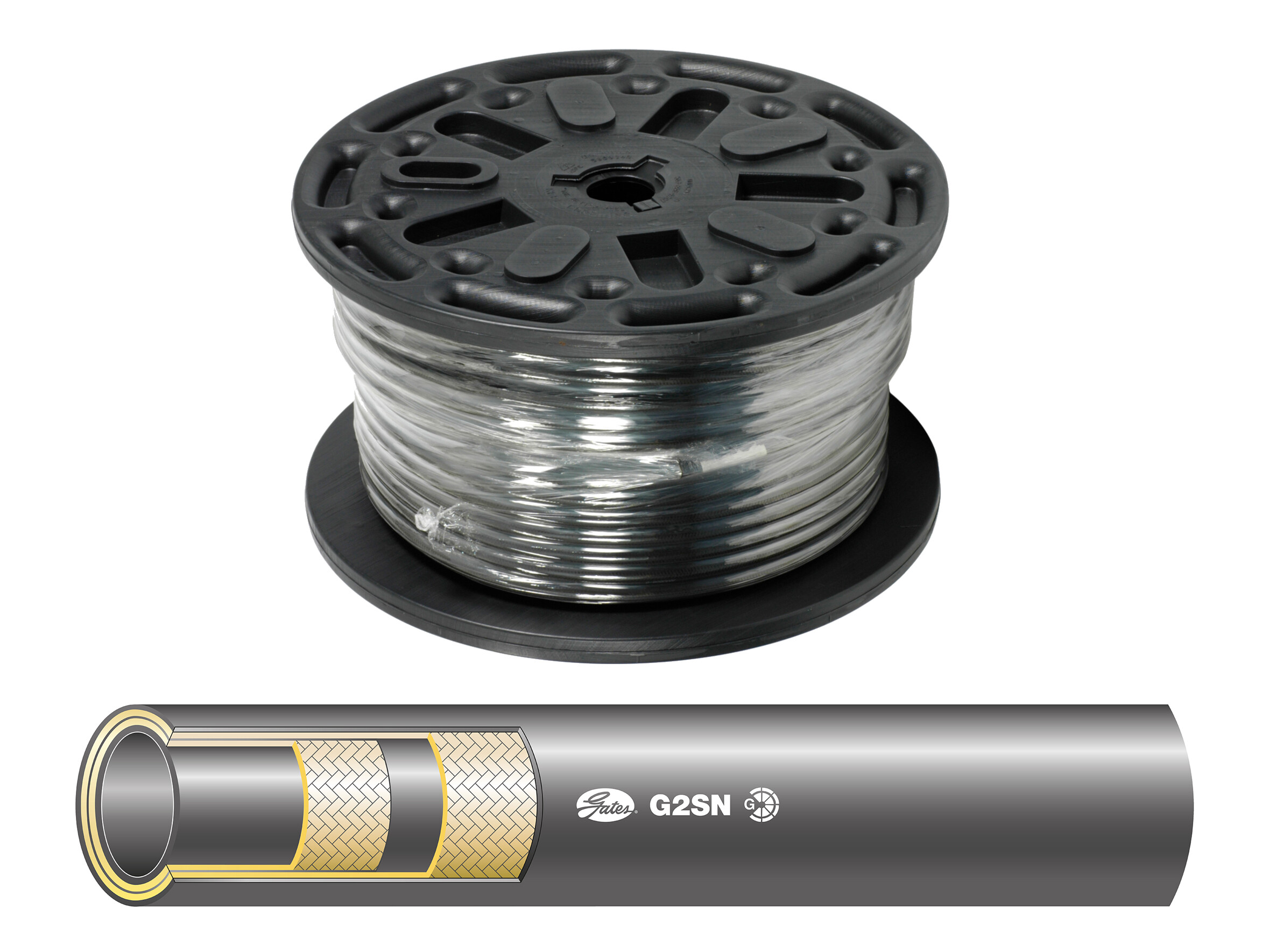

3/8" Hydraulic hose G2 - 330 bar - 2SN - 100M reel
Compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils.
Are supplied on reel with 100 meter hose. May hold up to maximum 4 pcs. of which the shortest may be minimum 3 meters.
Artikelnummer:
06G2-RL100
Förpackningsstorlek:
100 m
Minsta beställningskvantitet:
100 m
Armering
2 layer high tensile steel wire braid
Bestillingsenhed
Plastic roll
Bredd
32 cm
Böjningsradie
65 mm
Diameter inv.
9.5 mm
Diameter rull
560 mm
Diameter utv.
18.8 mm
Flamresistent
Yes
Innertub
NBR (Nitrile)
Längd/rulle
100 m
Märke namn
Gates
REACH compliant
Yes
RoHs compliant
Yes
Slang godkännanden
ABS, BV, DNV, GL, LR, MSHA
Slangdimension
3/8 "
Slangtyp
2SN
Standard EN
EN 853 2SN
Standard ISO
ISO 1436 2SN R2ATS
Standard SAE
SAE 100R2AT
Temperatur intermittent max.
+121 °C
Temperatur max.
+100 °C
Temperatur min.
-40 °C
Tryck max.
330 bar
Tryck spräng min.
1320 bar
Yttertub
NBR/PVC
Förpackningsstorlek
100 m
Streckkod
5704295997698
Bruttovikt
0,51 Kg
Nettovikt
0,51 Kg
Ursprungsland
IND
Intrastat artikelkod
40092100
Compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils.
Are supplied on reel with 100 meter hose. May hold up to maximum 4 pcs. of which the shortest may be minimum 3 meters.
Crimpdimensioner för 06G2-RL100
|
Slangtyp |
Diameter - tum |
Kopplingstyp |
Hylsa |
Pressdimension - mm |
Skalning - ???int??? |
Skalning - ???ext??? |
Arbetsstryck |
|---|---|---|---|---|---|---|---|
| 06G2 | 3/8 | P06 | P0630 |
20.5 mm
±0.1
|
Nej | Nej | 330 |
| 06G2 | 3/8 | R06 | R0630 |
21.8 mm
0.0
0.2 |
Nej | Nej | 330 |
| 06G2 | 3/8 | G06 |
22.6 mm
±0.25
|
Nej | Nej | 330 |
