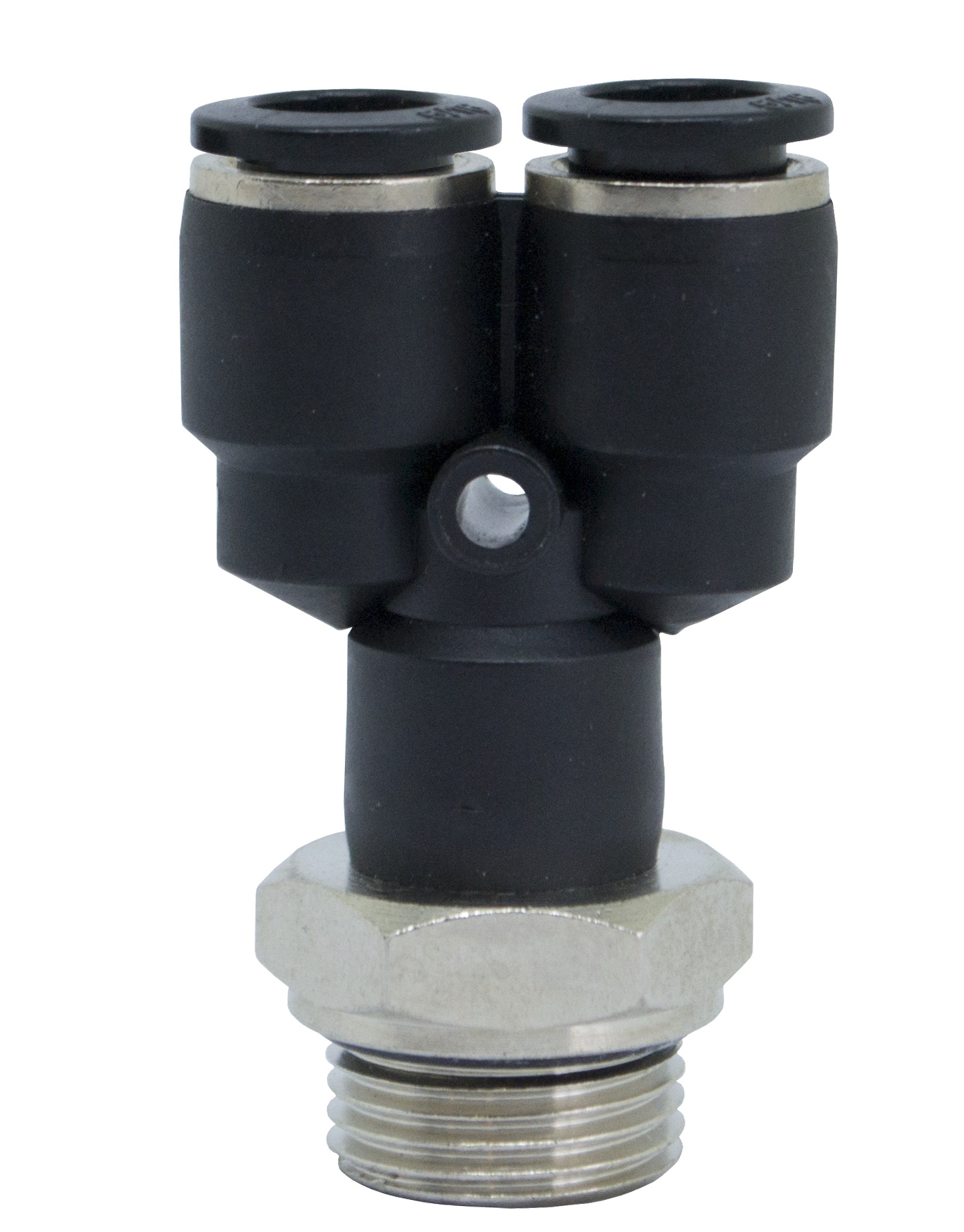

Adapter Y vridbar med oring

Adapter Y vridbar med oring

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Pressure max. Thread Vacuum max.
C02880405 Adapter Y Vridbar Ø4 mm Utv-M5 16 bar -0.9 bar
C02880418 Adapter Y Vridbar Ø4mm Utv-G1/8'' 16 bar G 1/8 BSP -0.9 bar
C02880428 Adapter Y Vridbar Ø4mm Utv-G1/4'' 16 bar G 1/4 BSP -0.9 bar
C02880605 Adapter Y Vridbar Ø6mm Utv-M5 16 bar -0.9 bar
C02880618 Adapter Y Vridbar Ø6mm Utv-G1/8 16 bar G 1/8 BSP -0.9 bar
C02880628 Adapter Y Vridbar Ø6mm Utv-G1/4'' 16 bar G 1/4 BSP -0.9 bar
C02880818 Adapter Y Vridbar Ø8 mm Utv-G1/8 16 bar G 1/8 BSP
C02880828 Adapter Y Vridbar Ø8 mm Utv-G1/4 16 bar G 1/4 BSP
C02880838 Adapter Y Vridbar Ø8mm Utv-G3/8 16 bar G 3/8 BSP -0.9 bar
C02881028 Adapter Y Vridbar Ø10mm Utv-G1/4'' 16 bar G 1/4 BSP
C02881048 Adapter Y Vridbar Ø10mm Utv-G1/2'' 16 bar G 1/2 BSP
C2881038 Adapter Y Vridbar Ø10mm Utv-G3/8 16 bar G 3/8 BSP
Area of use
Tryckluft, Vacuum
Brand Name
Tierre
Material
Mässing, NBR, PBT-plast, POM(Acetal), Rostfritt stål, Zink
Pressure max.
16
Sealing material
NBR
Temperature max.
+80
Temperature min.
-20
