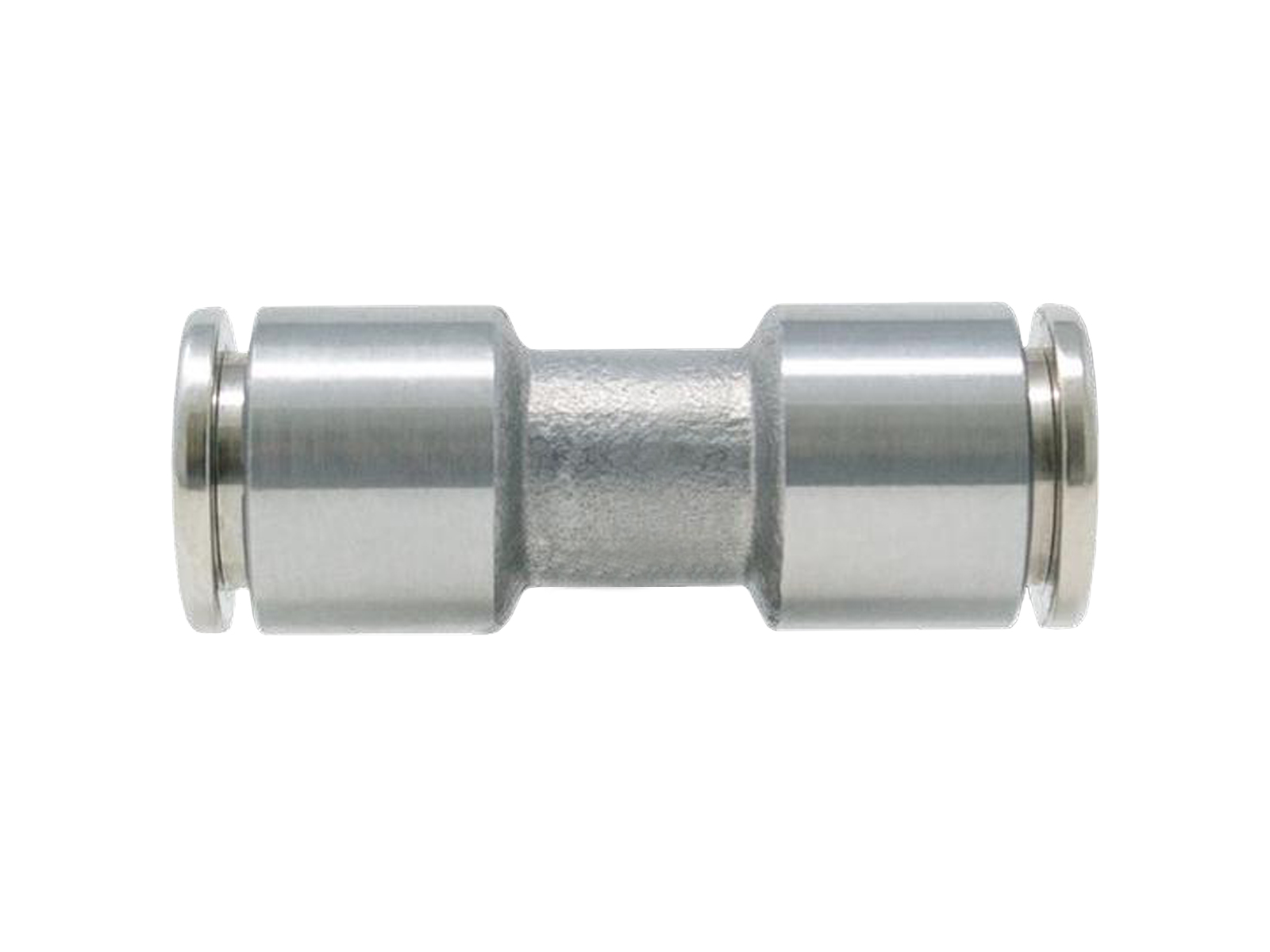

Rak skarv push-in x push-in - SXUC rostfri

SXUC-0400 - Rak Push-in, 4mm skarv, SY

SXUC-0600 - Rak Push-in, 6mm skarv, SY

SXUC-0800 - Rak Push-in, 8mm skarv, SY

SXUC-1000 - Rak Push-in, 10mm skarv, SY

SXUC-1200 - Rak Push-in, 12mm skarv, SY

VÄLJ VARIANT

Artikelnummer	Beskrivning	Pressure max.	Vacuum max.
SXUC-0400	SXUC-0400 - Rak Push-in, 4mm skarv, SY	20 bar	-0.95 bar
SXUC-0600	SXUC-0600 - Rak Push-in, 6mm skarv, SY	20 bar	-0.95 bar
SXUC-0800	SXUC-0800 - Rak Push-in, 8mm skarv, SY	20 bar	-0.95 bar
SXUC-1000	SXUC-1000 - Rak Push-in, 10mm skarv, SY	20 bar	-0.95 bar
SXUC-1200	SXUC-1200 - Rak Push-in, 12mm skarv, SY	20 bar	-0.95 bar

Angle

Area of use

Gas och vätskor kompatibla med ingående material, Tryckluft, Vacuum

Brand Name

Tierre

Material

Rostfritt stål

Material quality

AISI 316L

Pipe Groove Dimension A

0.23

Pressure max.

REACH compliant

RoHs compliant

Sealing material

FKM/FPM (Viton®), PVDF-UHM

Standard

Silicone Free

Standard EN

DM 174/2004, EC 1935/2004, ICIM Food, ICIM Water

Standard SAE

NSF/ANSI 169

Temperature max.

+150

Temperature min.

-20

Vacuum max.

-0.95
