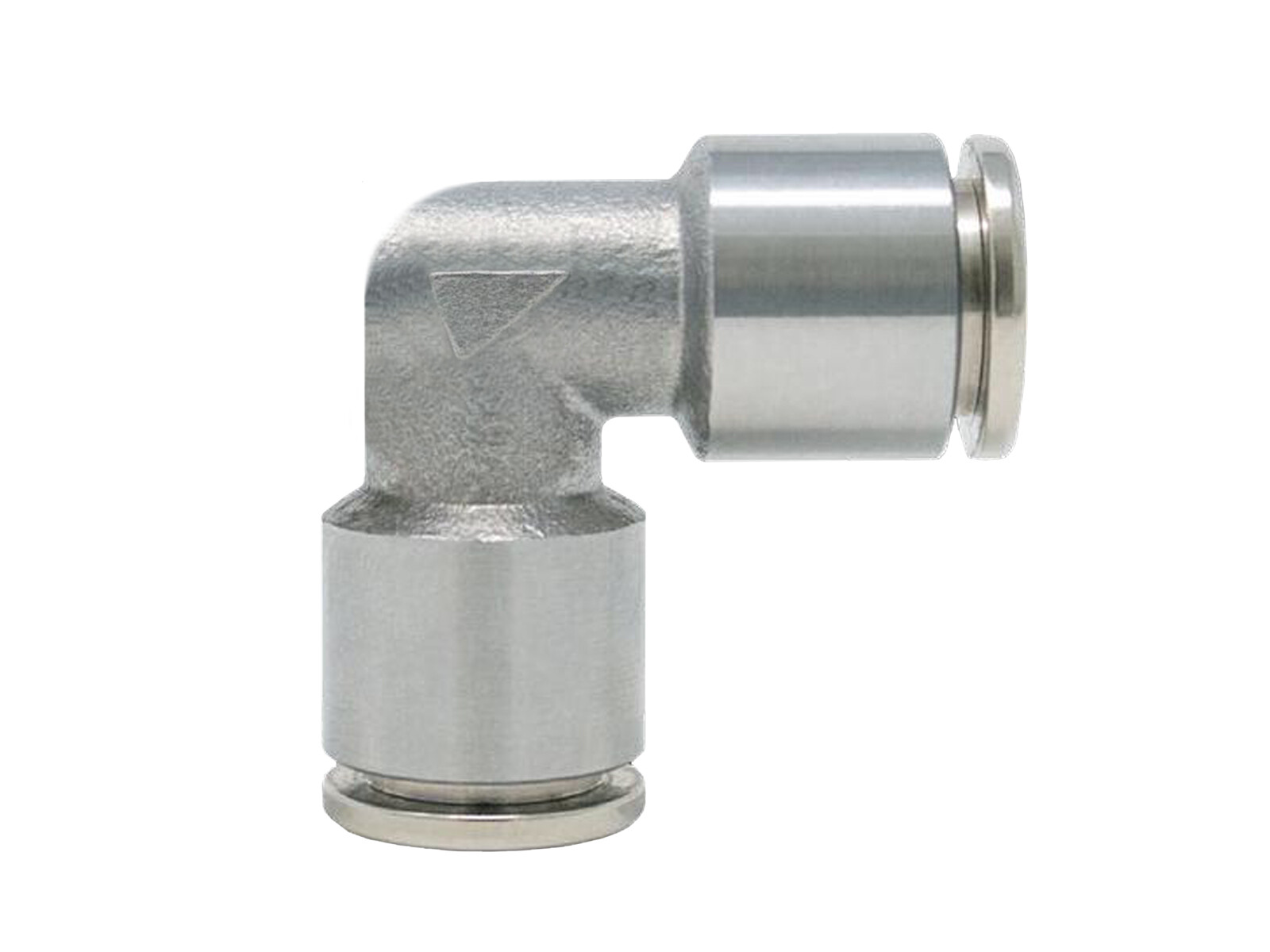

Vinkelsamlar 90° push-in - SXUL

SXUL-0400 - 90K Push-in, Ø4 mm, SY

SXUL-0600 - 90K Push-in, Ø6 mm, SY

SXUL-0800 - 90K Push-in, Ø8 mm, SY

SXUL-1000 - 90K Push-in, Ø10 mm, SY

SXUL-1200 - 90K Push-in, Ø12 mm, SY

SELECT VARIANT

Partnumber	Description	Pressure max.	Vacuum max.
SXUL-0400	SXUL-0400 - 90K Push-in, Ø4 mm, SY	20 bar	-0.95 bar
SXUL-0600	SXUL-0600 - 90K Push-in, Ø6 mm, SY	20 bar	-0.95 bar
SXUL-0800	SXUL-0800 - 90K Push-in, Ø8 mm, SY	20 bar	-0.95 bar
SXUL-1000	SXUL-1000 - 90K Push-in, Ø10 mm, SY	20 bar	-0.95 bar
SXUL-1200	SXUL-1200 - 90K Push-in, Ø12 mm, SY	20 bar	-0.95 bar

Angle

Area of use

Gas och vätskor kompatibla med ingående material, Tryckluft, Vacuum

Brand Name

Tierre

Material

Rostfritt stål

Material quality

AISI 316L

Pipe Groove Dimension A

0.23

Pressure max.

REACH compliant

RoHs compliant

Sealing material

FKM/FPM (Viton®), PVDF-UHM

Standard

Silicone Free

Standard EN

DM 174/2004, EC 1935/2004, ICIM Food, ICIM Water

Standard SAE

NSF/ANSI 169

Temperature max.

+150

Temperature min.

-20

Vacuum max.

-0.95
