    • Rak passform 0° - S-serien - DIN hane x NPT hane stud - A-SNPTX / XGE-SN

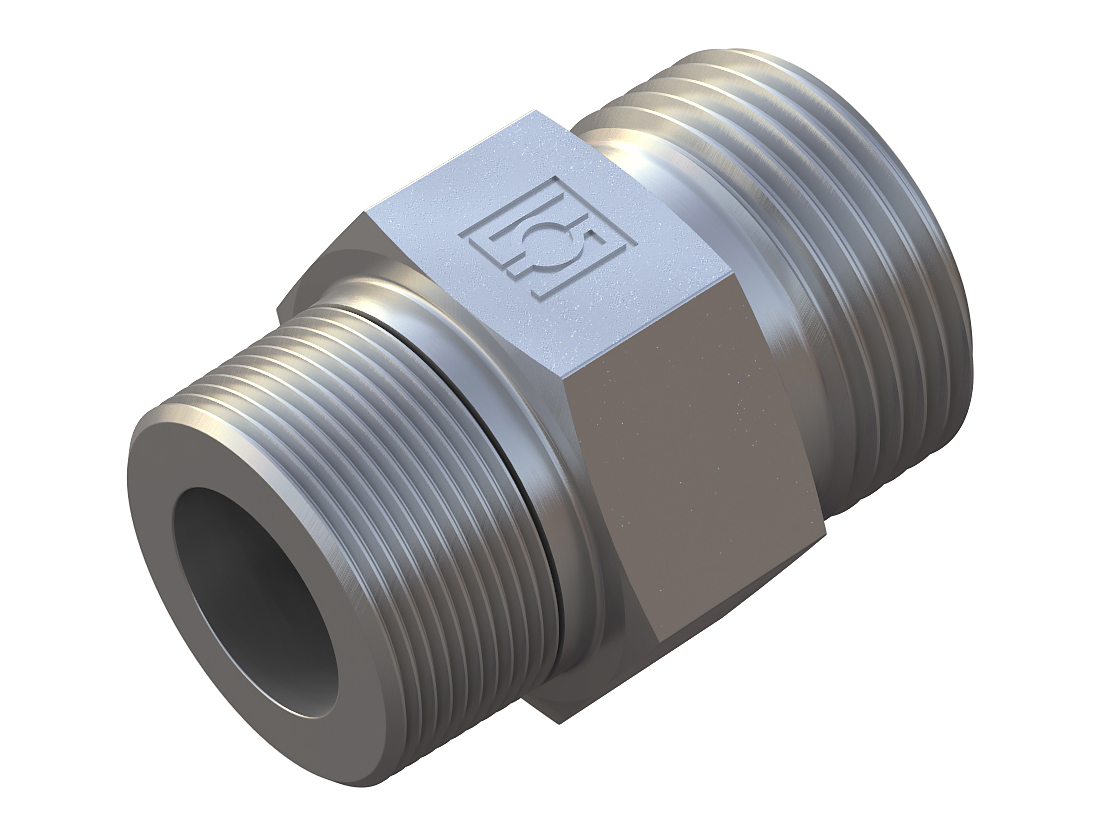

    Rak passform 0° - S-serien - DIN hane x NPT hane stud - A-SNPTX / XGE-SN

    Välj variant
    VÄLJ VARIANT
    VÄLJ VARIANT
    Artikelnummer Beskrivning Diameter rör Gänga utv. Tryck max.
    XGE06SN Adapter 06S, NPT1/4'' 6 mm 1/4 NPT 630 bar
    XGE08SN Adapter 8S-NPT 1/4 8 mm 1/4 NPT 630 bar
    XGE08SN38 Adapter 8S - NPT 3/8
    XGE10SN14 Adapter 10S Utv-NPT1/4 10 mm 1/4 NPT 630 bar
    XGE10SN38 Adapter 10S Utv-NPT3/8 10 mm 3/8 NPT 630 bar
    XGE12SN Adapter 12S Utv-NPT3/8'' 12 mm 3/8 NPT 630 bar
    XGE12SN12 Adapter 12S, NPT1/2'' 12 mm 1/2 NPT 630 bar
    XGE12SN14 Adapter 12S, NPT1/4'' 12 mm 1/4 NPT 630 bar
    XGE16SN Adapter 16S NPT1/2'' 16 mm 1/2 NPT 630 bar
    XGE20SN Adapter 20S NPT3/4'' 20 mm 3/4 NPT 400 bar
    XGE25SN Adapter 25S NPT1'' 25 mm 1 NPT 400 bar
    XGE30SN Adapter 30S NPT1.1/4'' 30 mm 1.1/2, 1.1/4 NPT 400 bar
    XGE30SN1 Adapter 30S, NPT1'' 30 mm 1 NPT 400 bar
    XGE30SN34 Adapter rak 30S - Utv-3/4NPT 30 mm 3/4 NPT 400 bar
    XGE38SN Adapter 38S NPT1.1/2'' 38 mm 1.1/2 NPT 400 bar
    XGE38SN1 Adapter 38S NPT1'' 38 mm 1 NPT 315 bar
    Märke namn
    Stauff
    REACH compliant
    Ja
    RoHs compliant
    Ja
    Rostbeständighet
    1200 hours salt spray DIN EN ISO 9227
    Serie
    S
    Säkerhetsfaktor
    4
    Temperatur max.
    +120
    Temperatur min.
    -40
    Tillverkningsmaterial
    Stål
    Vinkel
    0
    Ytskiktbehandling
    Zink-Nickel
