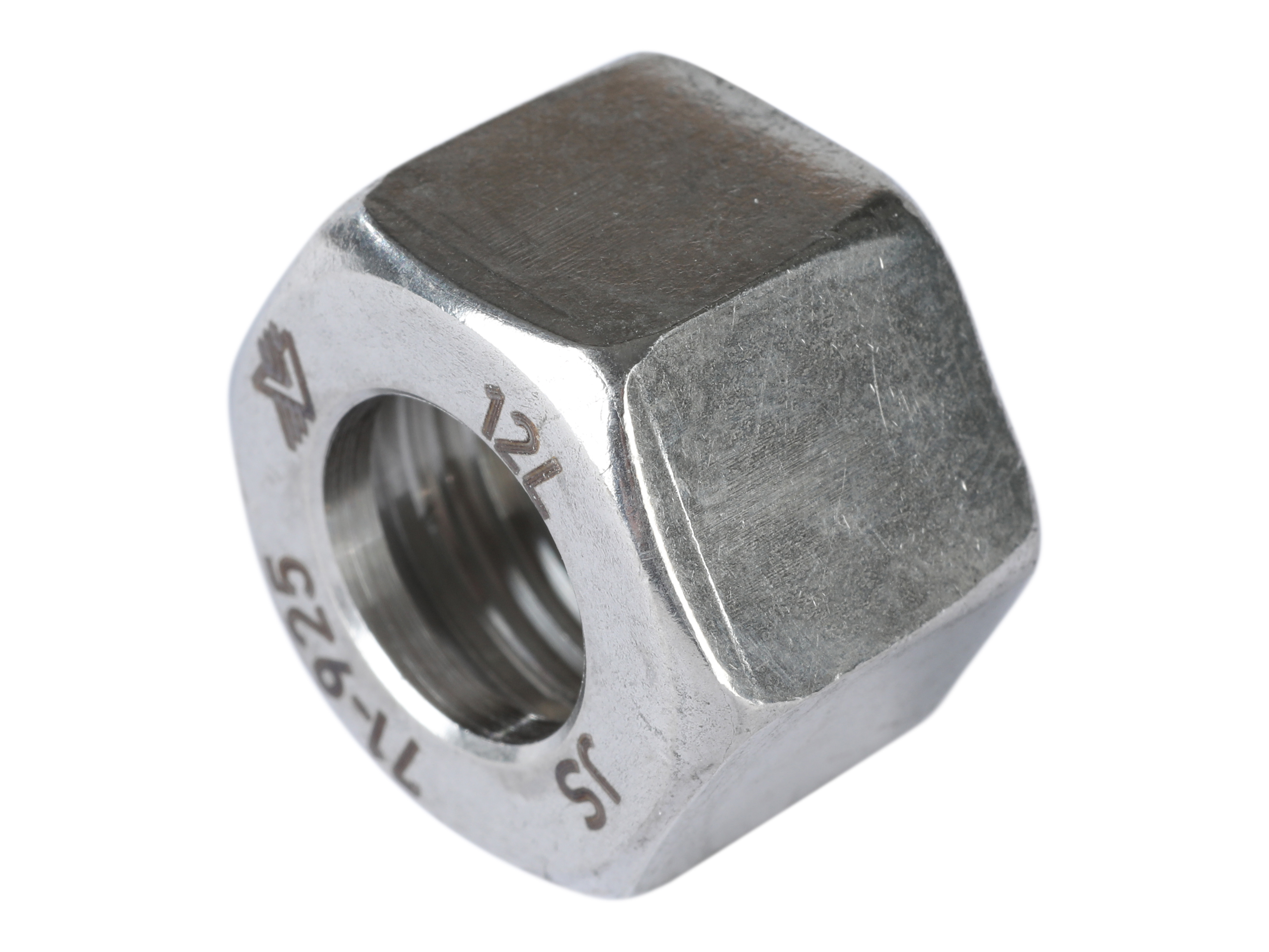

Nut for cutting ring - S-series - stainless - M-S/71 / M-S-SY

Nut for cutting ring - S-series - stainless - M-S/71 / M-S-SY

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Thread inner metric Diameter pipe Pressure max.
M06S-SY M06S-SY - Mutter 06S Syrafast M14x1,5 MM 6 mm 800 bar
M08S-SY M08S-SY - Mutter 08S Syrafast M16x1,5 MM 8 mm 800 bar
M10S-SY M10S-SY - Mutter 10S Syrafast M18x1,5 MM 10 mm 800 bar
M12S-SY M12S-SY - Mutter 12S Syrafast M20x1,5 MM 12 mm 630 bar
M14S-SY M14S-SY - Mutter 14S Syrafast M22x1,5 MM 14 mm 630 bar
M16S-SY M16S-SY - Mutter 16S Syrafast M24x1,5 MM 16 mm 630 bar
M20S-SY M20S-SY - Mutter 20S Syrafast M30x2 MM 20 mm 420 bar
M25S-SY M25S-SY - Mutter 25S Syrafast M36x2 MM 25 mm 420 bar
M30S-SY M30S-SY - Mutter 30S Syrafast M42x2 MM 30 mm 420 bar
M38S-SY M38S-SY - Mutter 38S Syrafast M52x2 MM 38 mm 420 bar
Brand Name
Volz
Material
Syrafast stål
Material quality
1.4571 / AISI316Ti
Safety factor
4
Series
S
Temperature max.
+400
Temperature min.
-60
