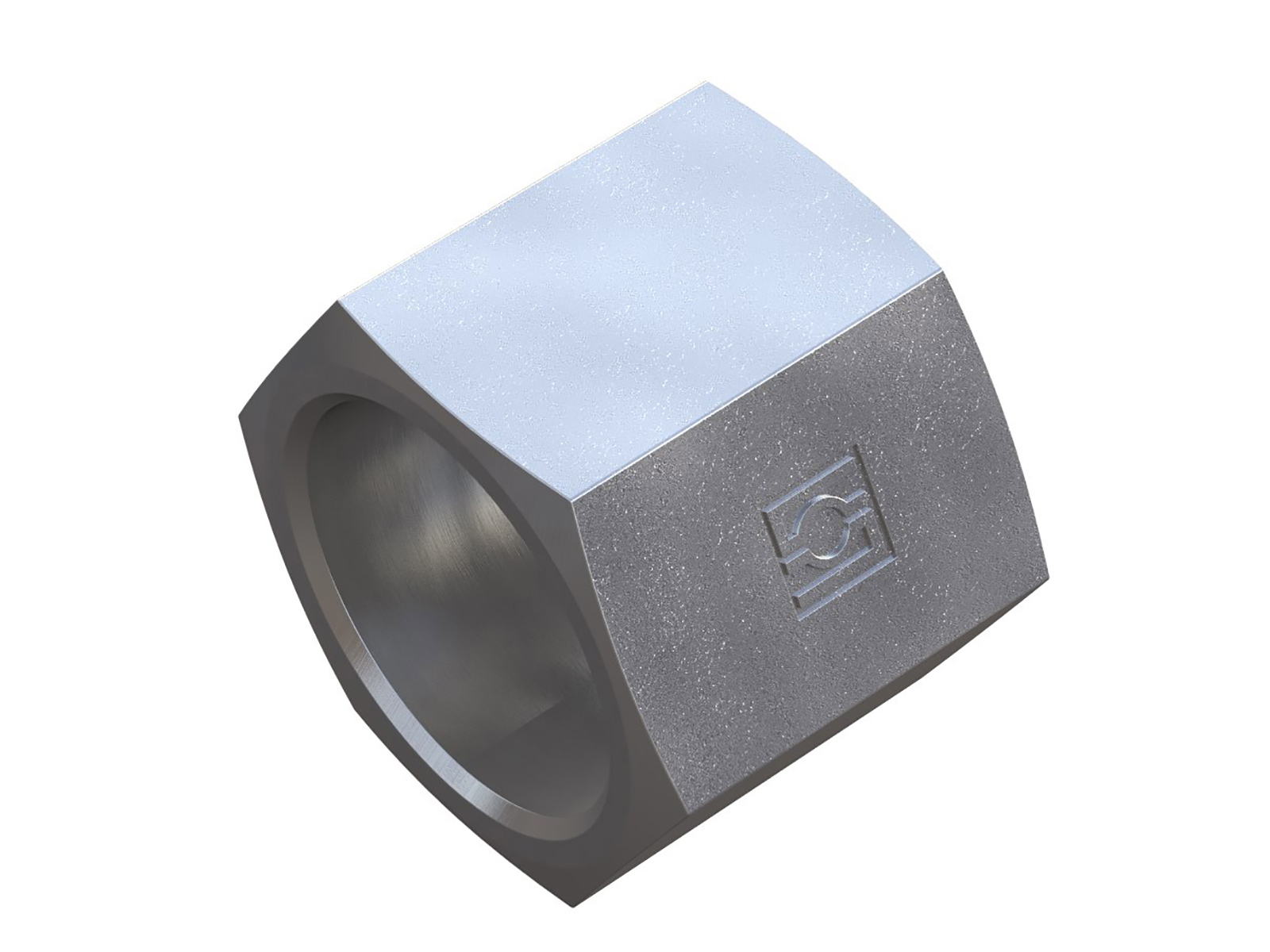

Nut for flared tube fittings - L-series - 37°

SELECT VARIANT

Partnumber	Description	Diameter rör	Tryck max.	Gänga inv. metrisk	Nyckelstorlek
BMO06L	BMO06L - Kragkoppling mutter	6 mm	500 bar	M12x1,5 MM	14 mm
BMO08L	BMO08L - Kragkoppling mutter	8 mm	500 bar	M14x1,5 MM	17 mm
BMO10L	BMO10L - Kragkoppling mutter	10 mm	500 bar	M16x1,5 MM	19 mm
BMO12L	BMO12L - Kragkoppling mutter	12 mm	400 bar	M18x1,5 MM	22 mm
BMO14S15L	BMO14S15L - Kragkoppling mutter
BMO18L	BMO18L - Kragkoppling mutter	18 mm	400 bar	M26x1,5 MM	32 mm
BMO20S22L	BMO20S22L - Kragkoppling mutter
BMO28L	BMO28L - Kragkoppling mutter	28 mm	250 bar	M36x2 MM	41 mm
BMO35L	BMO35L - Kragkoppling mutter	35 mm	250 bar	M45x2 MM	50 mm
BMO42L	BMO42L - Kragkoppling mutter	42 mm	250 bar	M52x2 MM	60 mm

Packningsmaterial

FKM/FPM (Viton®)

REACH compliant

RoHs compliant

Rostbeständighet

1200 hours salt spray DIN EN ISO 9227

Serie

Säkerhetsfaktor

Temperatur max.

+200

Temperatur min.

-25

Tillverkningsmaterial

Stål

Ytskiktbehandling

Zink-Nickel
