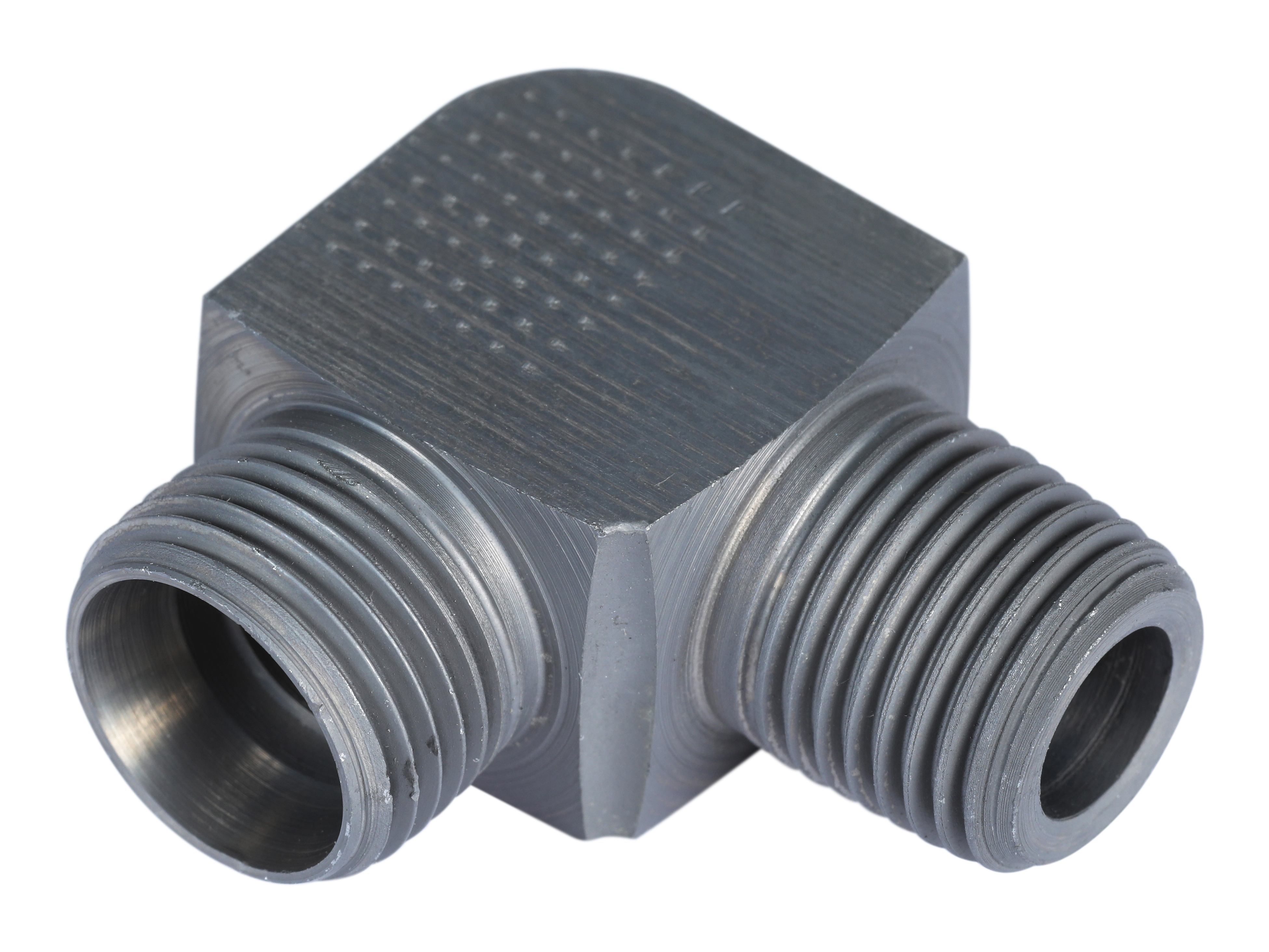

Armbågsbeslag 90° - S-serien - MM hane 24° x NPT hantapp - B-SNPTX / XWE-SN

Adapter 90° 06S, Utv-NPT 1/4''

Adapter 90° 08S, Utv-NPT 1/4''

Adapter 90° 10S, Utv-NPT 3/8''

Adapter 90° 12S, Utv-NPT 3/8''

Adapter 90° 16S, Utv-NPT 1/2''

Adapter 90° 20S, Utv-NPT 3/4''

SELECT VARIANT

Partnumber	Description	Series	Pressure max.	Thread outer metric	Thread outer
XWE06SN	Adapter 90° 06S, Utv-NPT 1/4''	S	630 bar	M14x1,5	1/4 NPT
XWE08SN	Adapter 90° 08S, Utv-NPT 1/4''	S	630 bar	M16x1,5	1/2 NPT
XWE10SN	Adapter 90° 10S, Utv-NPT 3/8''	S	630 bar	M18x1,5	3/8 NPT
XWE12SN	Adapter 90° 12S, Utv-NPT 3/8''	S	630 bar	M36x2	3/8 NPT
XWE16SN	Adapter 90° 16S, Utv-NPT 1/2''	S	630 bar	M24x1,5	1/2 NPT
XWE20SN	Adapter 90° 20S, Utv-NPT 3/4''	S	400 bar	M30x2	3/4 NPT

Angle

Brand Name

Stauff

Corrosion resistance

1200 hours salt spray DIN EN ISO 9227

Material

Stål

REACH compliant

RoHs compliant

Safety factor

Series

Surface treatment

Zink-Nickel

Temperature max.

+120

Temperature min.

-40
